ATS Cabinet

$999.00

ATS Cabinet automatically transfers power between the main supply and backup generator to ensure continuous and reliable operation of critical equipment.

40 People are viewing this right now

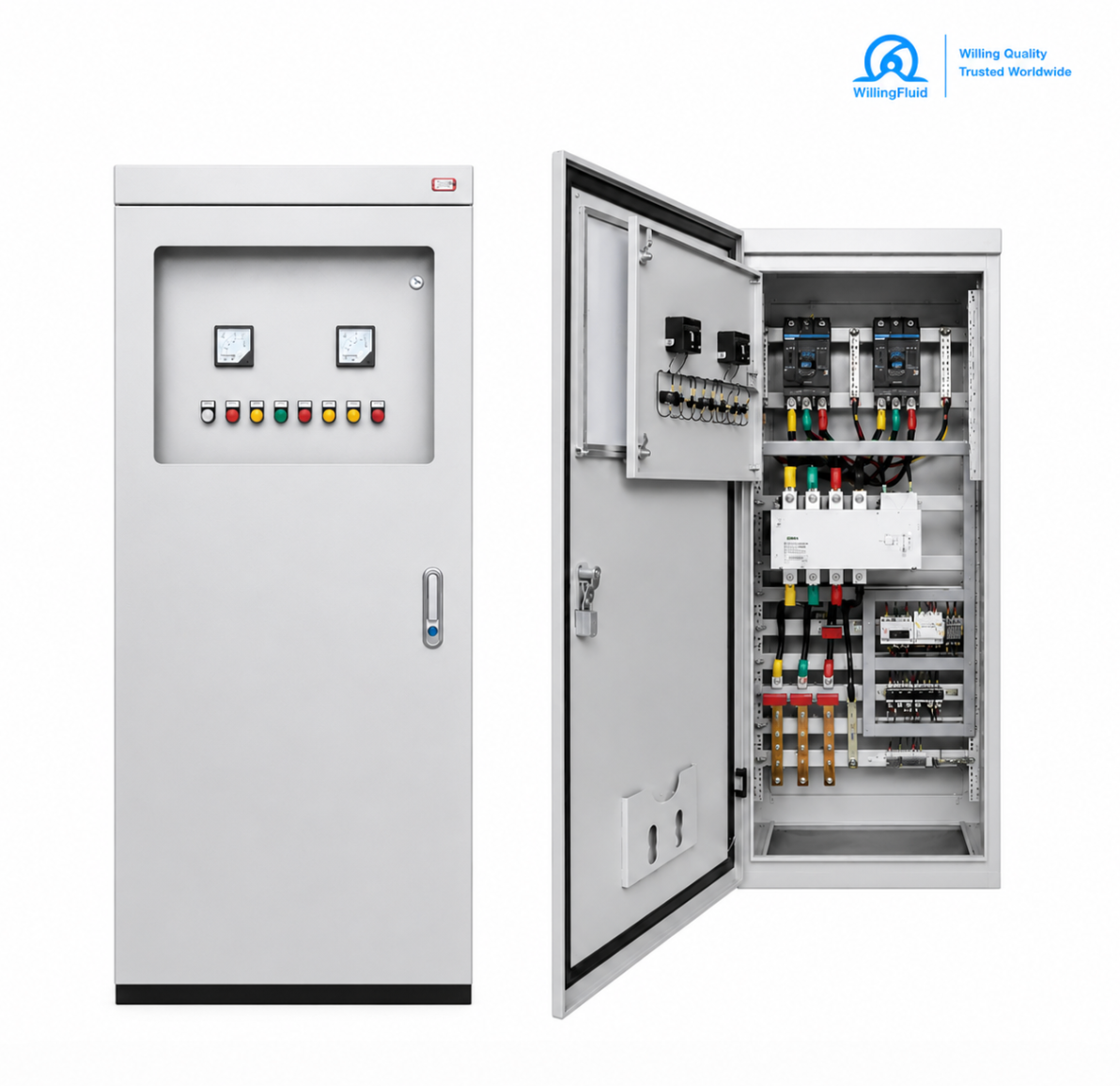

ATS Cabinet (Automatic Transfer Switch Cabinet) is an automatic power switching system designed to ensure continuous power supply for critical equipment. When the main power supply fails, the cabinet automatically switches to the backup power source, such as a generator, ensuring uninterrupted operation.

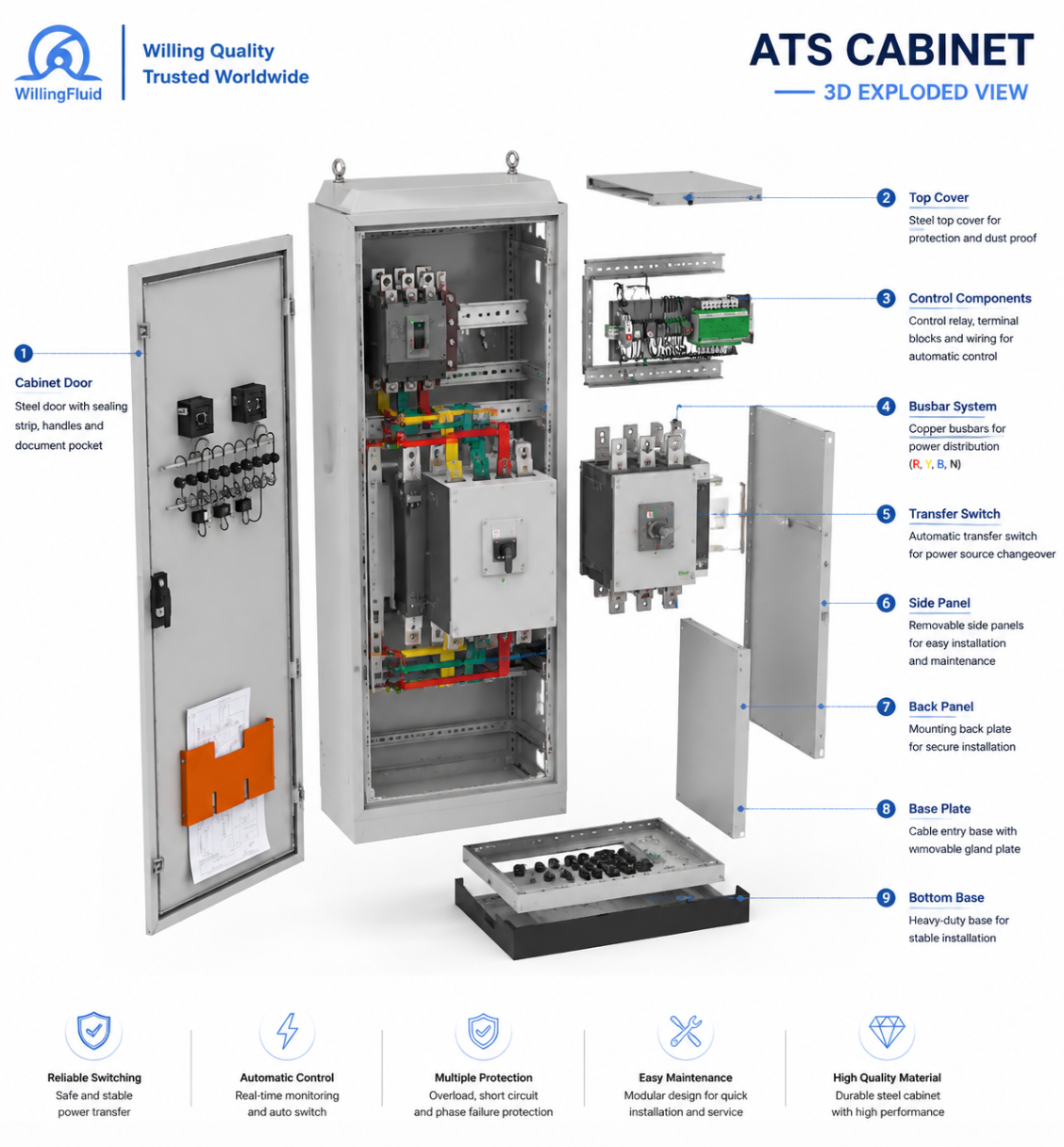

The cabinet integrates automatic transfer switches, circuit breakers, control modules and monitoring components. It provides reliable power management for fire pump systems, water supply systems and other important electrical equipment.

ATS Cabinets are widely used in fire protection systems, commercial buildings, hospitals, data centers, industrial plants and municipal infrastructure projects where stable power supply is essential.

Features
·Automatic Power Switching
Quickly switches between main power and backup power.
·High Reliability
Ensures continuous operation during power failure.
·Safety Protection
Equipped with circuit protection and monitoring functions.
·Fast Transfer Response
Reduces downtime caused by power interruption.
·Remote Monitoring Option
Supports intelligent monitoring and communication.

Parameters
·Rated Current: 63A – 3200A
·Rated Voltage: 380V / 400V / 480V
·Frequency: 50Hz / 60Hz
·Transfer Time: ≤5s
·Power Sources: 2 (Main Power + Generator)
·Protection Grade: IP30 / IP55
·Control Mode: Automatic / Manual
·Communication: Modbus RTU / RS485

Application
·Fire protection systems
·Fire pump systems
·Hospitals and healthcare facilities
Data centers
·Industrial plants
·Airports and transportation hubs
·Commercial buildings
·Municipal infrastructure projects
