Name: Variable Frequency Booster Systems
Brand: willingfluid
Price: 999.00 USD
Availability: InStock

Home Booster Systems

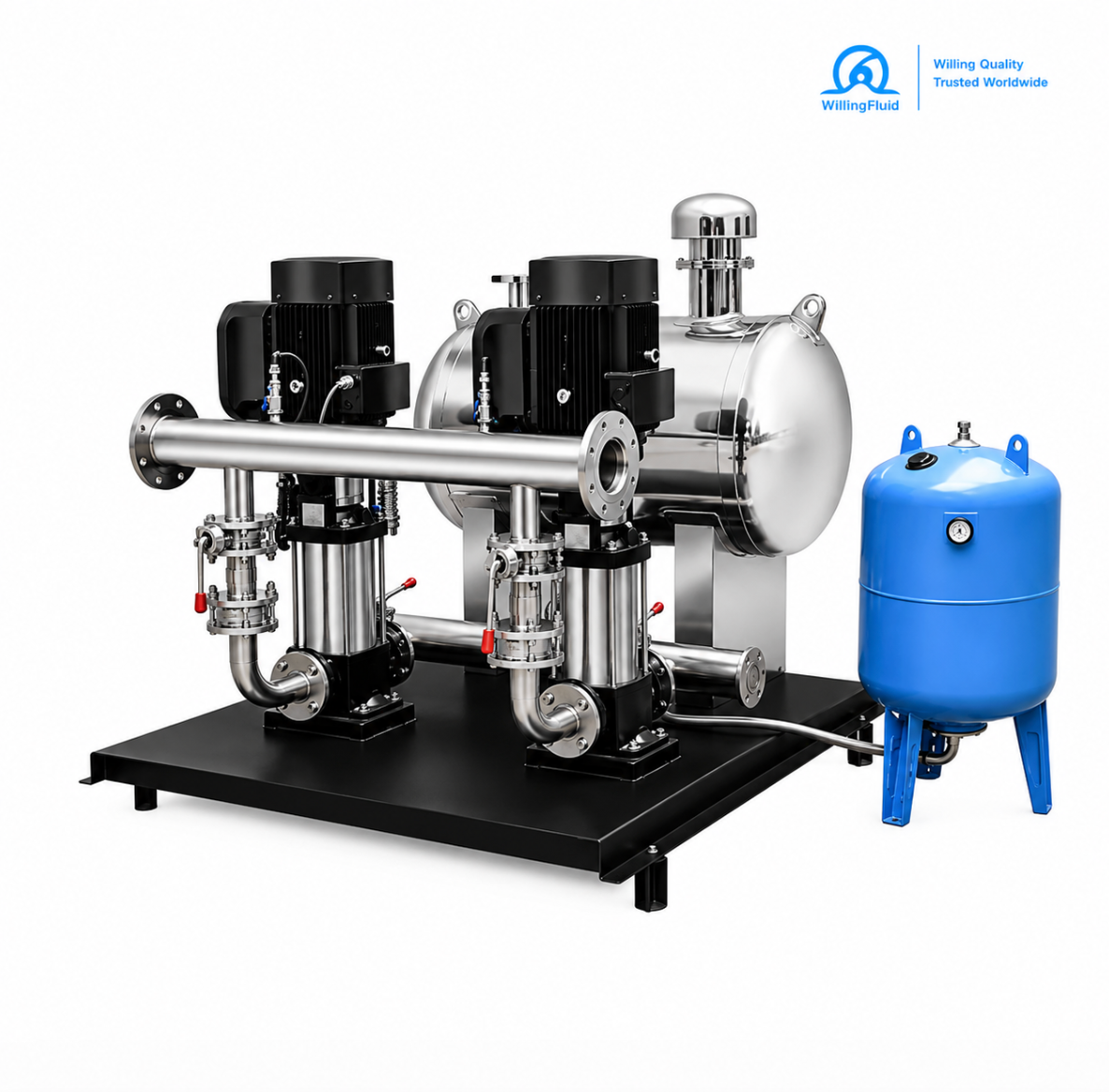

Variable Frequency Booster Systems

$999.00

Variable Frequency Booster System is an intelligent constant-pressure water supply system that automatically adjusts pump speed through VFD control technology. It provides stable water pressure, energy-saving operation and reliable water supply performance for residential, commercial and industrial applications.

40 People are viewing this right now

Variable Frequency Booster System is an intelligent water supply solution designed to maintain constant water pressure under different water consumption conditions. The system uses variable frequency drive (VFD) technology to automatically adjust pump speed according to real-time water demand, ensuring stable pressure output while reducing energy consumption and improving operating efficiency.

The system integrates high-efficiency booster pumps, variable frequency control cabinets, pressure sensors, valves, manifolds and other hydraulic components into a complete automatic water supply unit. Through intelligent control, the pump speed changes according to pipeline pressure fluctuations, allowing the system to operate smoothly during both low-demand and peak-demand periods.

Compared with traditional fixed-speed water supply systems, Variable Frequency Booster Systems can significantly reduce unnecessary energy consumption, minimize pressure fluctuations, reduce mechanical impact on pumps and pipelines, and extend the service life of equipment. The compact integrated structure also simplifies installation, commissioning and maintenance.

Willing Fluid Variable Frequency Booster Systems are widely used for residential buildings, high-rise buildings, commercial complexes, hotels, hospitals, factories, schools, municipal water supply networks and industrial water supply applications requiring stable and efficient pressure control.

Features
1. Constant Pressure Water Supply

The system automatically adjusts pump speed according to real-time water demand, maintaining stable pipeline pressure and improving user water experience.

2. Energy Saving Operation

Variable frequency control allows pumps to operate according to actual demand, reducing unnecessary power consumption compared with traditional fixed-speed systems.

3. Intelligent Automatic Control

Equipped with pressure sensors and intelligent control algorithms, the system can automatically start, stop and regulate pumps according to operating conditions.

4. High Efficiency Pump Configuration

Compatible with high-efficiency centrifugal pumps such as CDL, GDL and other vertical multistage pumps to provide reliable hydraulic performance.

5. Smooth Operation & Extended Service Life

Soft start and speed regulation reduce mechanical impact, vibration and pipeline pressure fluctuations, helping extend pump and motor service life.

6. Compact Integrated Design

The complete skid-mounted system integrates pumps, control cabinet, pressure sensors, valves and piping components, reducing installation space and simplifying commissioning.

7. Multiple Pump Control Modes

Supports single pump, two-pump, three-pump and multi-pump parallel operation to meet different water supply requirements.

Parameters
·Product Type: Variable Frequency Booster System
·Control Method: Variable Frequency Drive (VFD) Constant ·Pressure Control
·Flow Range: 1 – 1000 m³/h
·Head Range: 10 – 250 m
·Power Range: 0.75 – 315 kW
·Working Pressure: 0.1 – 1.6 MPa
·Pump Quantity: 1 – 8 Pumps
·Voltage: 220V / 380V / 415V / 440V
·Frequency: 50Hz / 60Hz
·Pump Type: Vertical Multistage Centrifugal Pump (CDL / GDL Series) or Customized Pump Configuration
·Medium: Clean Water
·Medium Temperature: ≤40℃
·Control Mode: Automatic Constant Pressure Control

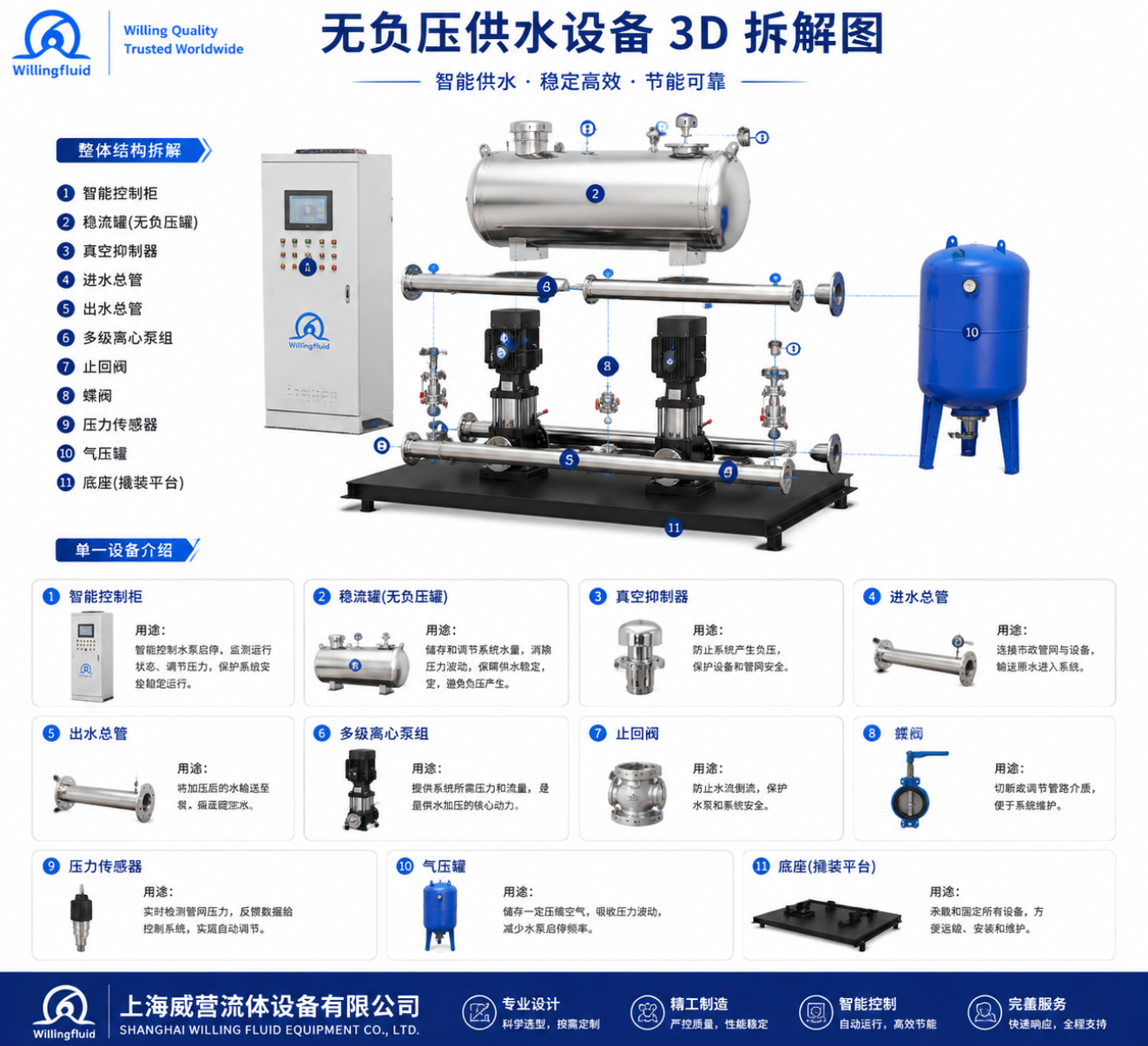

·System Components: Booster Pumps + Variable Frequency Control Cabinet + Pressure Sensor + Valves + Pipeline Manifold
·Installation Type: Integrated Skid-mounted Structure
·Communication Function: Optional Remote Monitoring and Building Management System (BMS) Connection
·Protection Functions: Overload Protection, Short Circuit Protection, Dry Running Protection, Pressure Fault Alarm

Application
Variable Frequency Booster Systems are widely used in:

·Residential building water supply systems
·High-rise building booster water supply
·Commercial buildings and office complexes
·Hotels and hospitals
·Schools and public facilities
·Industrial factories and production facilities
·Municipal water distribution networks
·Irrigation and agricultural water supply systems
·Water treatment plants
·HVAC circulation and process water systems
