Name: WYL Fresh Water Pump
Brand: willingfluid
Price: 999.00 USD
Availability: InStock

Home Water Supply Pumps

WYL Fresh Water Pump

$999.00

WYL vertical inline fresh water pump is designed for clean water supply and pressure boosting. It features compact structure, high efficiency, stable performance, and convenient maintenance.

40 People are viewing this right now

WYL series vertical centrifugal inline pump is a high-efficiency and energy-saving pump designed for clean water transportation and pressure boosting applications. With advanced hydraulic design and compact vertical inline structure, the pump provides excellent performance while reducing installation space requirements.

The inlet and outlet ports are arranged in the same direction, allowing easy connection with pipelines and simplifying installation. The pump and motor are directly coupled, ensuring high concentricity, smooth operation, and reduced vibration.

WYL series pump is specially designed for water supply and circulation systems, including building water supply, industrial equipment, HVAC systems, irrigation, and fire-fighting booster applications.

Model Meaning：

Features
·Vertical inline structure saves installation space.
·Direct coupling between motor and pump improves reliability.
·High hydraulic efficiency and energy-saving operation.
·Low vibration and low operating noise.
·Easy installation and maintenance.
·Can be installed vertically or horizontally according to site conditions.
·Supports series and parallel operation.
·High-quality mechanical seal prevents leakage.

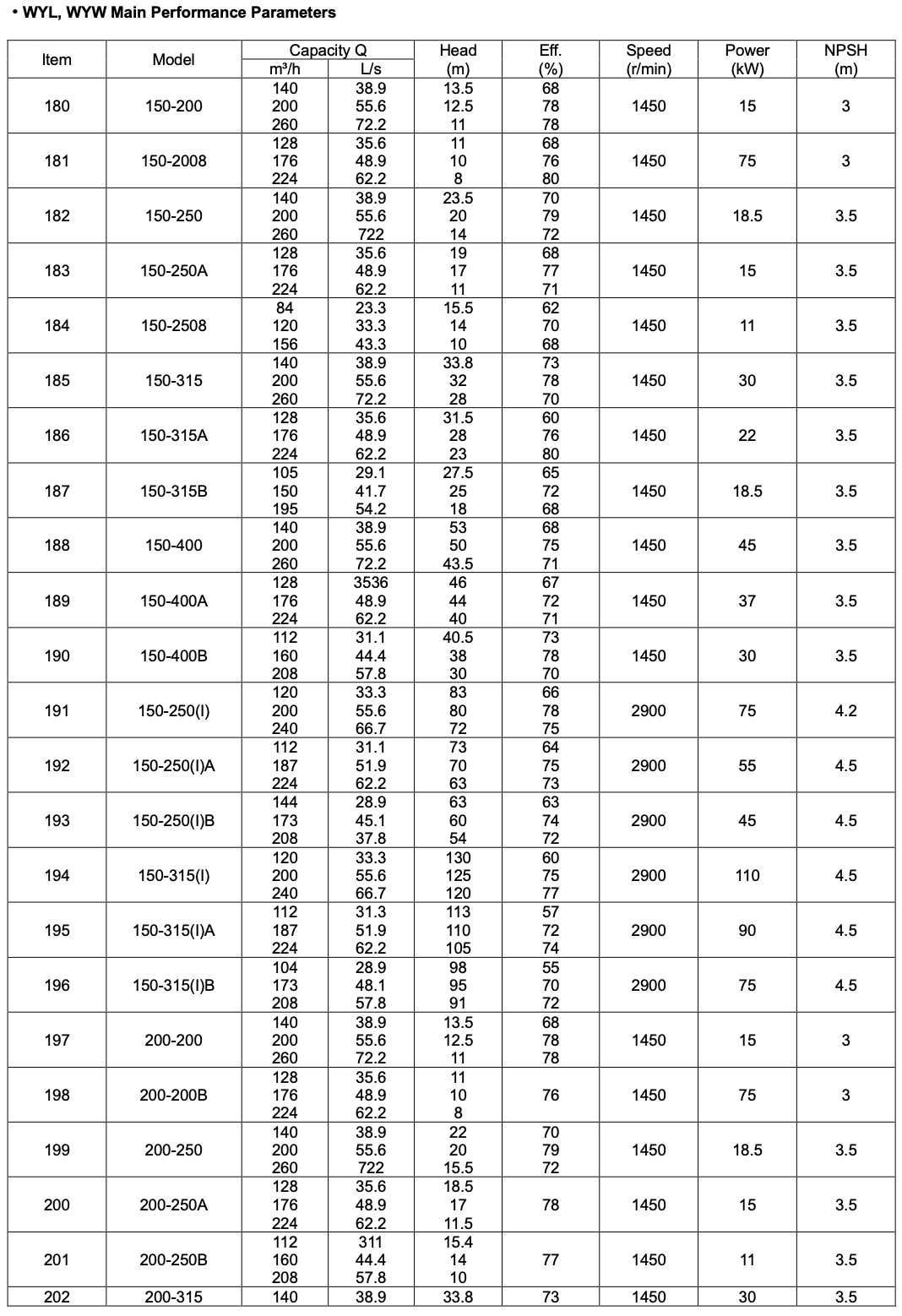

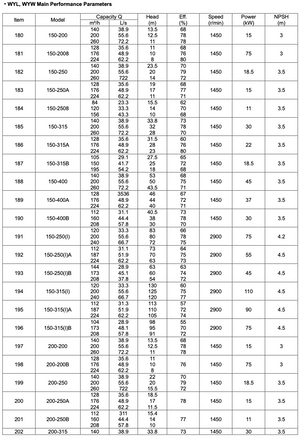

Parameters
·Flow Range: 1.4~194.4 m³/h
·Head Range: 10~230 m
·Speed: 2900 r/min
·Maximum Pressure: ≤1.6 MPa
·Medium Temperature: ≤80℃
·Motor Power: 0.37~200 kW
·Protection Class: IP44/IP54
·Insulation Class: B/F
·Medium: Clean water

Application
·Building domestic water supply.
·High-rise building booster systems.
·Municipal water supply.
·Industrial circulation systems.
·Fire-fighting booster systems.
·Garden irrigation.
·HVAC cold and hot water circulation.
·Water treatment systems.
