Name: XBC Diesel Engine Fire-fighting Pump
Brand: willingfluid
Price: 2999.00 USD
Availability: InStock

Home Fire Fighting System

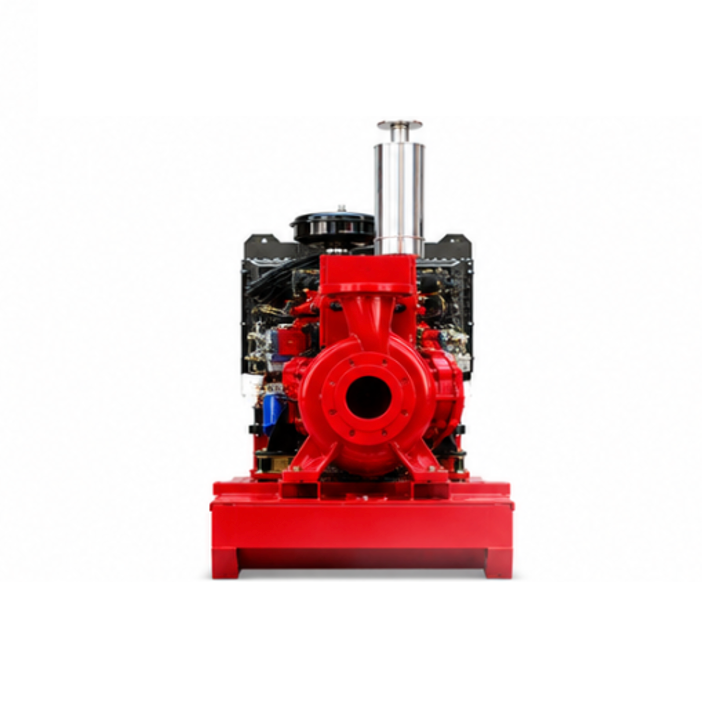

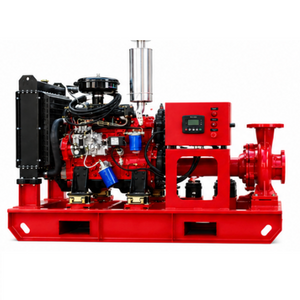

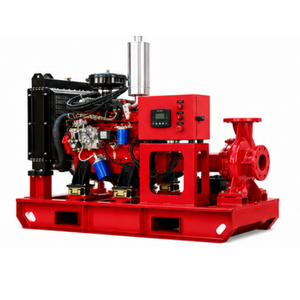

XBC Diesel Engine Fire-fighting Pump

$2,999.00

XBC Diesel Engine Fire-fighting Pump is an automatic fire pump system powered by a reliable diesel engine, designed for emergency fire water supply applications. It provides stable performance, high reliability, and independent operation when electrical power is unavailable.

40 People are viewing this right now

The XBC Diesel Engine Fire-fighting Pump is a reliable emergency fire protection solution designed according to the latest national standards, including GB6245-2006 Performance Requirements and Testing Methods of Fire-fighting Pumps and NFPA 20 Installation of Centrifugal Fire Pumps. It is widely used in fire water supply systems where an independent power source is required.

The pump unit can be equipped with different pump types, including single-stage single-suction pumps (XBC-IS), single-stage double-suction pumps (XBC-S), and multistage pumps (XBC-D), providing flexible solutions for various fire protection requirements. Powered by high-quality diesel engines, the system features stable starting, strong performance, compact structure, easy maintenance, and high automation.

With an intelligent diesel engine control system, the unit supports automatic start, operation monitoring, protection functions, and remote connection to fire control systems, ensuring continuous and reliable operation during emergency situations.

Features
Independent Power Supply – Diesel engine drive ensures reliable operation during power failures or emergencies.
Automatic Control System – Supports automatic start, stop protection, monitoring, and remote connection with fire control centers.
High Reliability Performance – Equipped with high-quality diesel engines for stable starting and continuous operation.
Multiple Pump Configurations – Available with single-stage single-suction, double-suction, and multistage pump designs.
Compact & Durable Structure – Optimized design provides strong performance with convenient installation and maintenance.
Advanced Protection Functions – Provides protection against overspeed, low oil pressure, high water temperature, low battery voltage, and start failure.

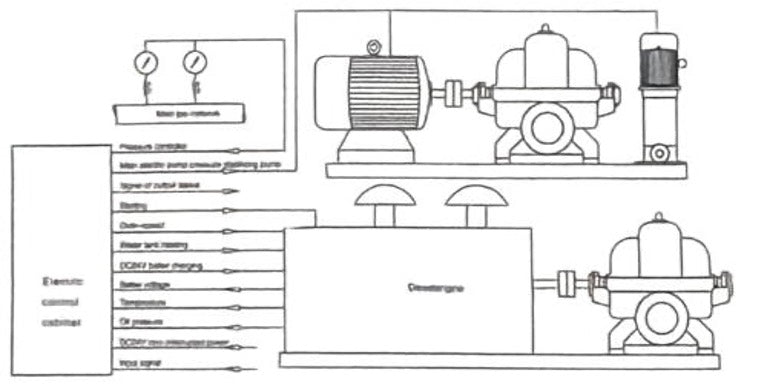

Flexible System Integration – Can be combined with electric motor pumps and jockey pumps to form a complete automatic fire water supply system.

Parameters

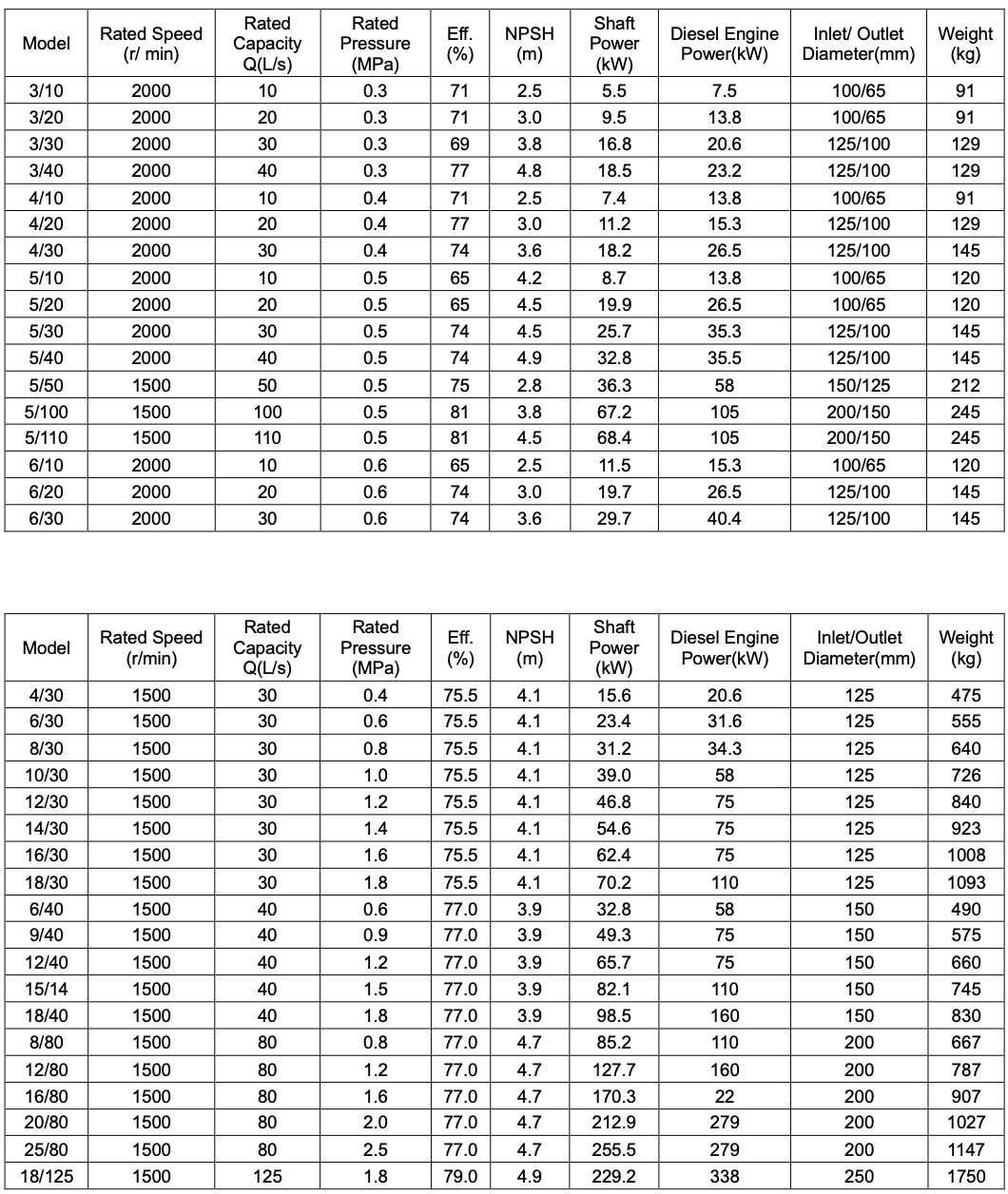

The XBC Diesel Engine Fire-fighting Pump is available in models XBC-IS, XBC-S, and XBC-D, with a rated capacity of 10–125 L/s and pressure range of 0.3–2.5 MPa. The rated speed is 1500–2000 r/min, with diesel engine power ranging from 7.5 to 338 kW. The inlet and outlet diameter range is DN65–DN250, and the system supports automatic and manual control modes for different fire protection requirements.

Application
The XBC Diesel Engine Fire-fighting Pump is widely applied in fire protection systems for high-rise buildings, commercial complexes, industrial plants, warehouses, power stations, petrochemical facilities, municipal projects, and other critical facilities.

It is especially suitable for applications requiring an independent emergency power source, including fire hydrant systems, sprinkler systems, industrial fire protection networks, and large-scale water supply projects. The diesel-driven design ensures continuous firefighting capability even during electrical power interruptions.
