Home Fire Fighting System

XBD-W-L Fire Pressure Maintaining Water Supply Equipment

$999.00

XBD-W-L Fire Pressure Maintaining Water Supply Equipment is an integrated pressure stabilization system for fire protection pipelines. It automatically maintains pipeline pressure through jockey pumps and intelligent control, ensuring reliable standby operation and rapid response of fire water supply systems.

40 People are viewing this right now

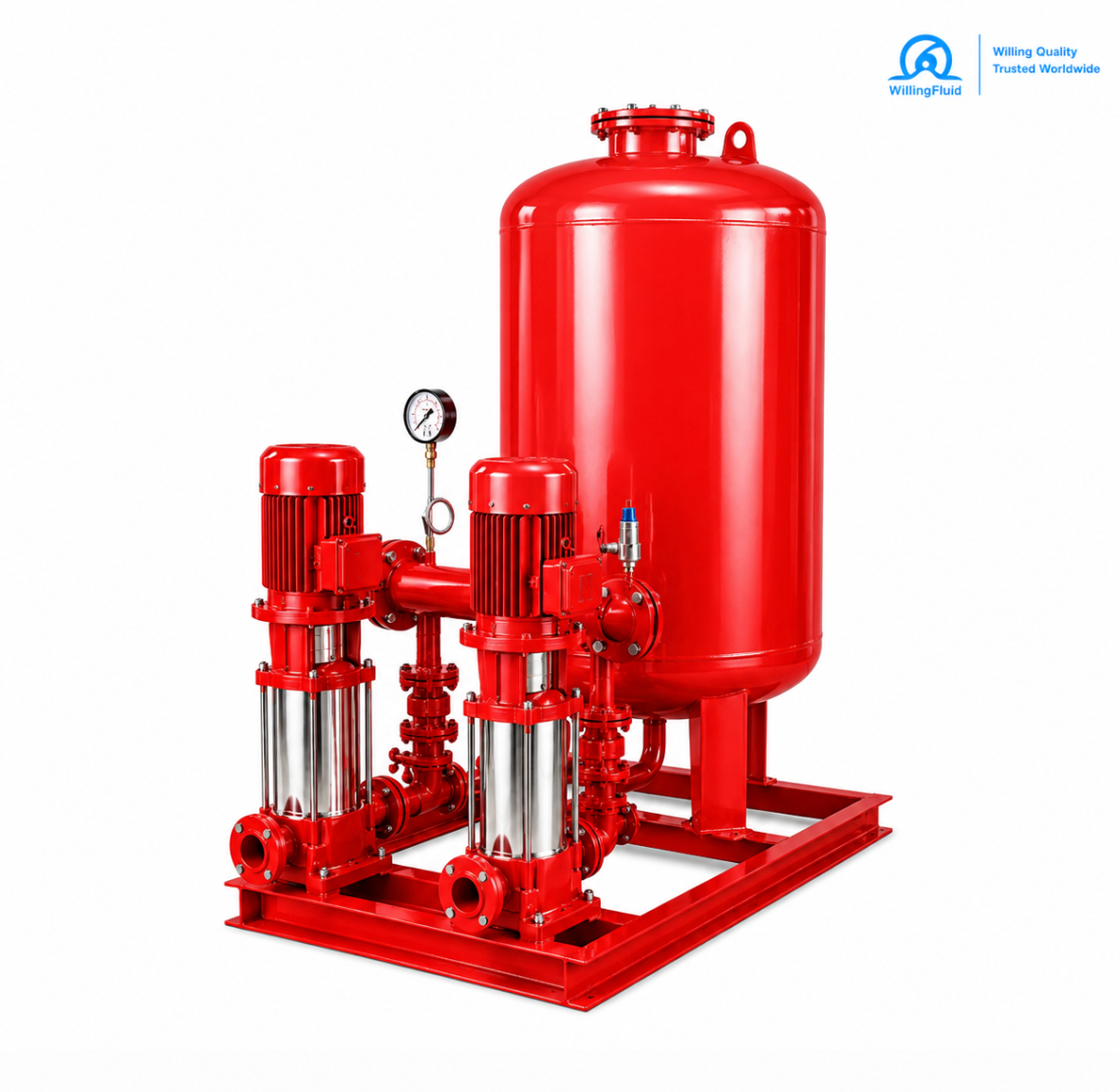

XBD-W-L Fire Pressure Maintaining Water Supply Equipment is an integrated fire pressure maintaining system designed to keep the pressure of fire protection pipelines within the required range and ensure the fire water supply system remains in standby condition at all times.

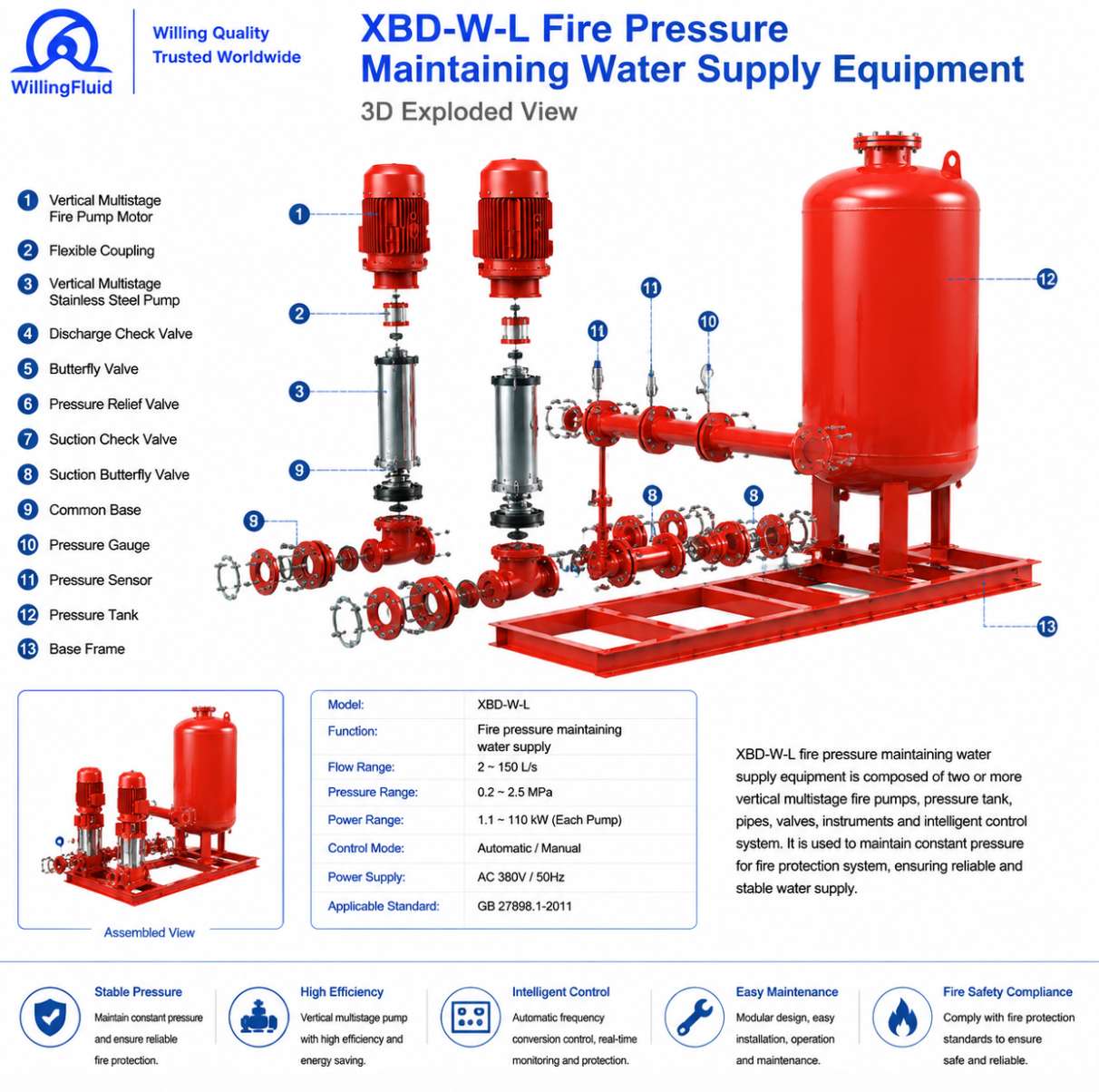

The system integrates vertical multistage jockey pumps, pressure tanks, control cabinets, valves, pressure sensors and pipeline assemblies into a compact skid-mounted unit. When minor pressure losses occur due to pipeline leakage, temperature changes or valve operation, the system automatically starts the jockey pump to restore and maintain the preset pressure, reducing unnecessary starts of the main fire pumps and improving the reliability and service life of the entire fire protection system.

The equipment is widely used in modern fire protection systems for high-rise buildings, commercial complexes, industrial plants, hospitals, warehouses and municipal fire networks. It provides stable pressure management for hydrant systems, sprinkler systems and other automatic fire protection applications.

Model Meaning：

Features
·Integrated skid-mounted design
Combines pumps, pressure tank, control system and piping into one compact unit, reducing installation space and construction workload.
·Automatic pressure maintenance
Automatically detects pipeline pressure changes and starts/stops the jockey pump to maintain stable fire system pressure.
·Reliable standby operation
Keeps fire protection pipelines pressurized and ready for emergency operation.
·Reduces main pump starts
Prevents frequent operation of main fire pumps caused by minor pressure fluctuations, extending equipment service life.
·High-efficiency vertical multistage pump
Provides stable pressure performance with low noise and smooth operation.
·Intelligent control system
Supports automatic/manual operation, pressure monitoring and alarm functions.
·Easy installation and maintenance
Factory-assembled system reduces onsite installation time and improves reliability.

Parameters
·Equipment Type: Fire Pressure Maintaining Water Supply Equipment
·Pump Type: Vertical Multistage Jockey Pump
·Flow Range: 1–5 L/s
·Head Range: 60–120 m
·Pressure Tank Capacity: 50–300 L
·Medium: Clean Water
·Medium Temperature: ≤40℃
·Power Supply: 380V / 50Hz / 3 Phase
·Control Mode: Automatic / Manual
·System Components: Jockey Pump, Pressure Tank, Control ·Cabinet, Pressure Sensor, Valves and Pipeline Assembly
·Installation Type: Integrated Skid-mounted Structure
·Application Standard: Fire Hydrant System, Automatic Sprinkler System and Fire Protection Pipeline Pressure Maintaining System

Application
·Fire hydrant systems
·Automatic sprinkler systems
·High-rise buildings
·Commercial complexes
·Industrial factories
·Warehouses and logistics centers
·Hospitals and schools
·Hotels and municipal fire protection systems
·Data centers and power facilities
