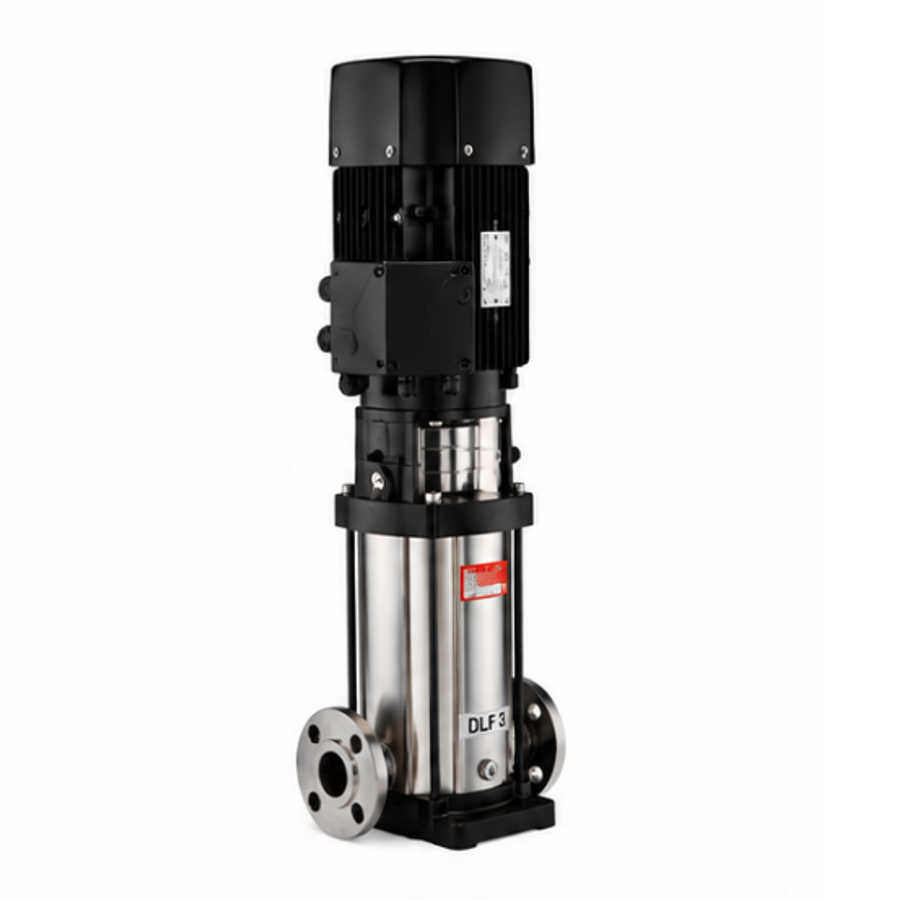

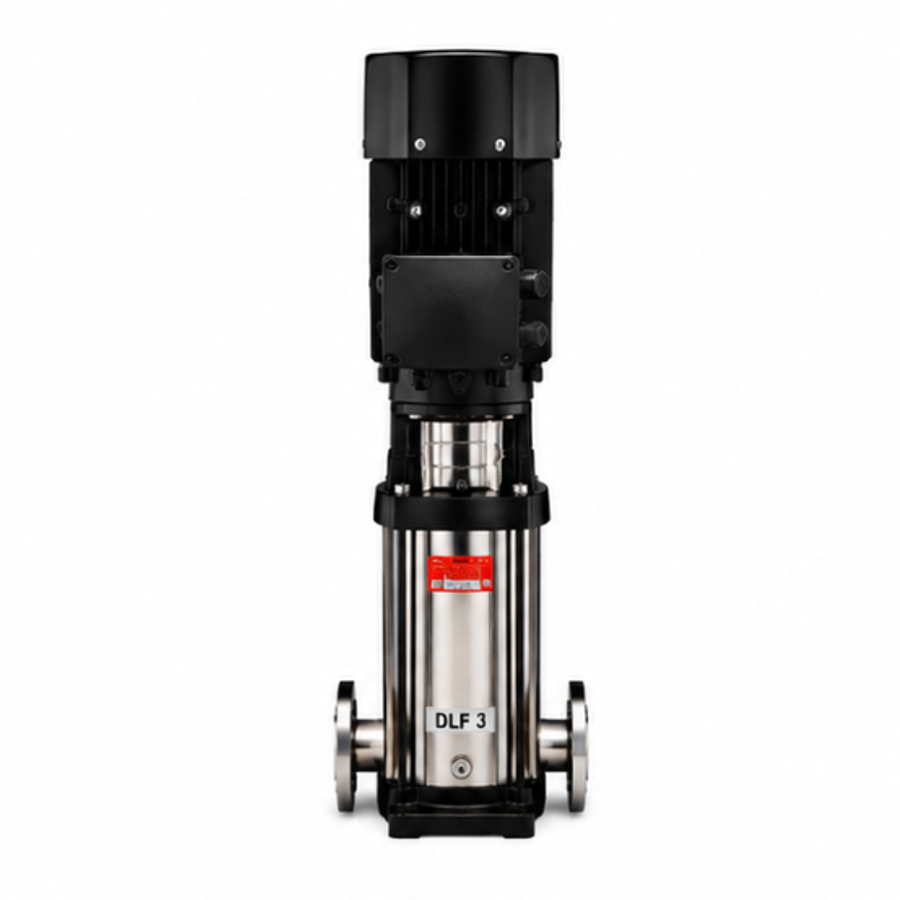

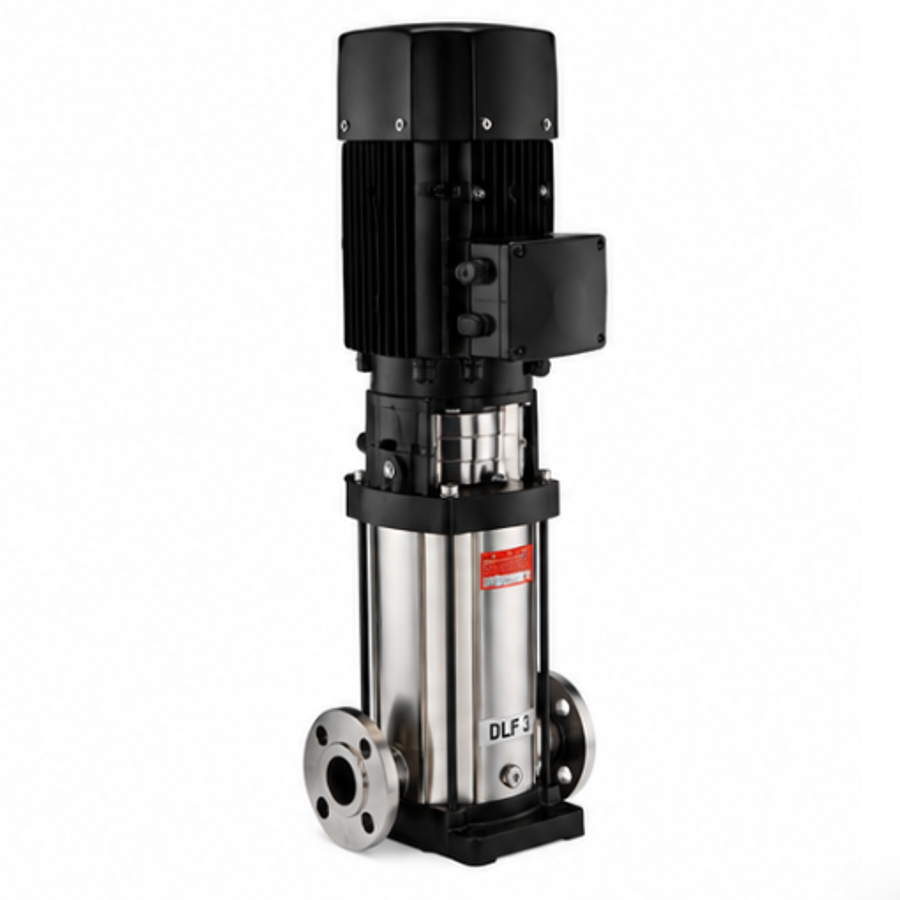

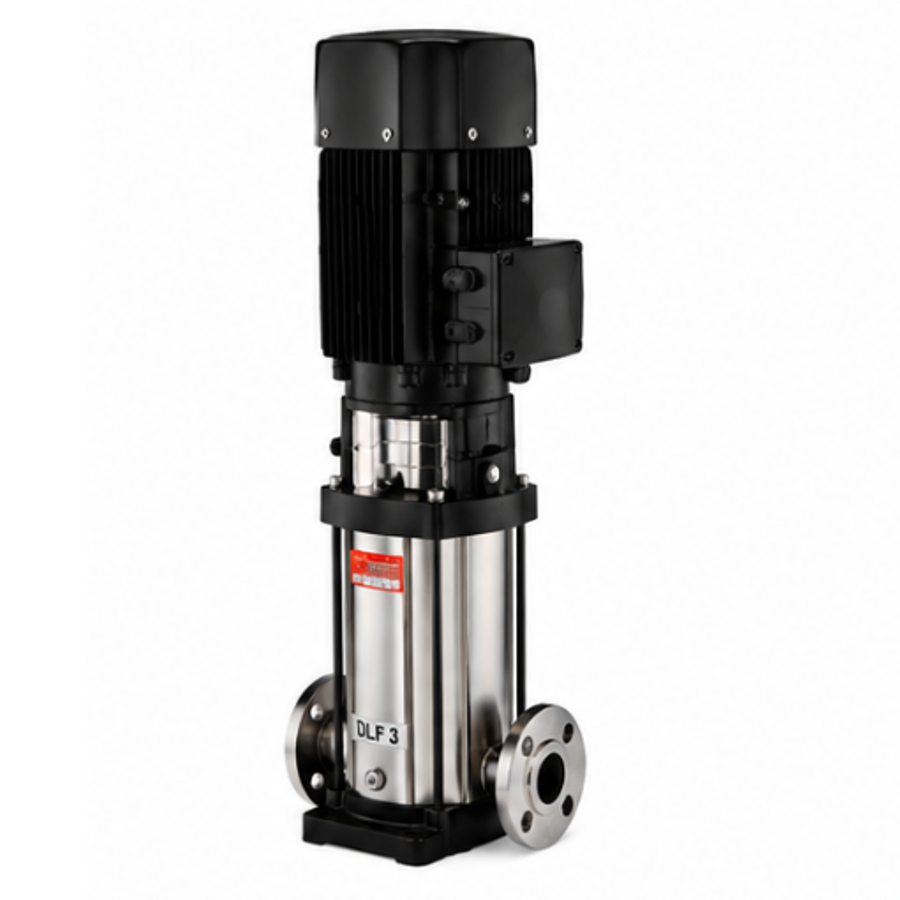

CDLF Stainless Steel Vertical Multistage Pump

$999.00

The CDLF Stainless Steel Vertical Multistage Pump is designed for clean and mildly corrosive fluids requiring high efficiency and corrosion resistance. Its stainless steel construction ensures durability, hygiene, and long service life.

40 People are viewing this right now

The CDLF Stainless Steel Vertical Multistage Pump is a high-efficiency stainless steel multistage centrifugal pump specially designed for applications requiring corrosion resistance, hygiene, and reliable fluid handling. The pump adopts high-quality AISI 304 stainless steel components, providing excellent durability and resistance to corrosion.

With its compact vertical structure, the pump requires less installation space while delivering stable high-pressure performance. The advanced hydraulic design ensures energy-saving operation, low noise, and smooth running during long-term service.

CDLF series is widely used for clean water transportation, water treatment systems, reverse osmosis systems, mineral water, distilled water, industrial processes, and other applications involving mildly corrosive fluids.

Model Meaning：

Features
·AISI 304 Stainless Steel Construction provides excellent corrosion resistance.
·Hygienic and Durable Design suitable for clean fluid applications.
·Vertical Multistage Structure delivers high pressure with minimal installation space.
·Energy-Saving Hydraulic Performance improves efficiency and reduces operating costs.
·Low Noise and Smooth Operation ensures comfortable working conditions.
·Excellent Sealing Performance prevents leakage during operation.
·Wide Fluid Compatibility suitable for mineral water, distilled water, softened water, and chloride-containing fluids.

Parameters
The CDLF Stainless Steel Vertical Multistage Pump is suitable for clean cold or hot fluids without solid particles and fibers.

·Flow range: 1–120 m³/h
·Head range: 10–300 m
·Speed: 2900 r/min
·Medium temperature: -15℃ to +120℃
·Environment temperature: ≤40℃
·Maximum working pressure: Up to 2.5 MPa
·Material: AISI 304 stainless steel
·Motor protection: IP55
·Insulation grade: F

Application
CDLF Stainless Steel Vertical Multistage Pump is widely used in:

·Reverse osmosis and water treatment systems
·Municipal water supply and boosting systems
·Mineral water and purified water systems
·Food and beverage processing systems
·Pharmaceutical and chemical industries
·Industrial circulation systems
·Boiler feed water systems
·Swimming pool water circulation
·Agriculture irrigation systems
