Name: YG Oil Pump
Brand: willingfluid
Price: 999.00 USD
Availability: InStock

Home Industrial Pumps

YG Oil Pump

$999.00

YG vertical oil pump is designed for transporting non-corrosive and non-explosive oil liquids. It features compact structure, reliable sealing, stable operation, and easy maintenance.

40 People are viewing this right now

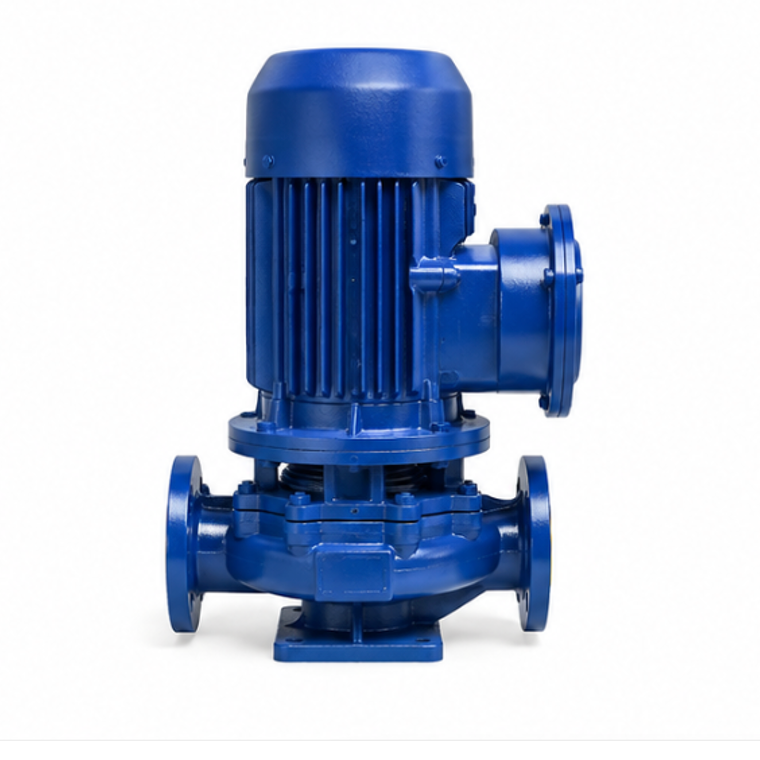

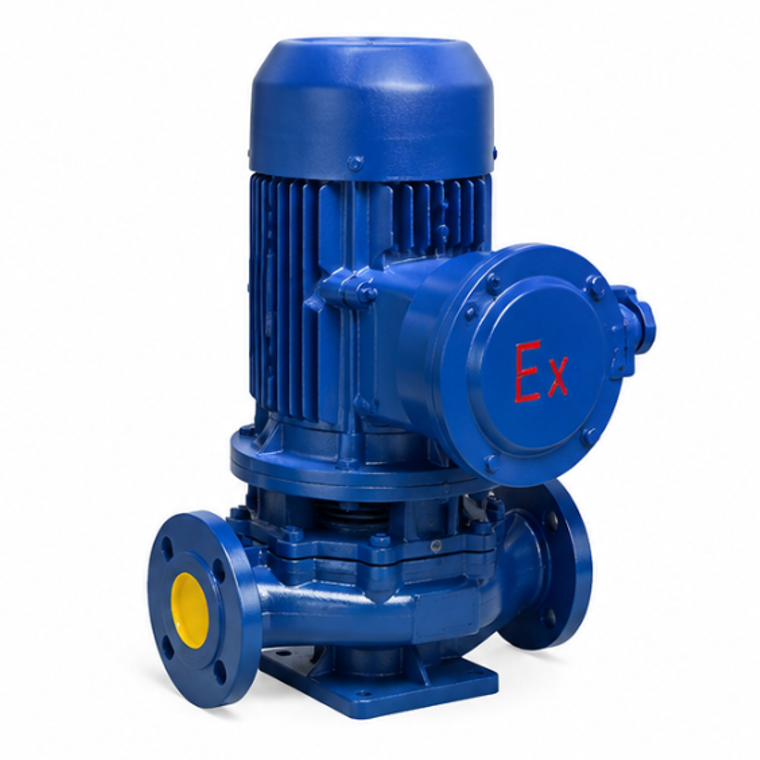

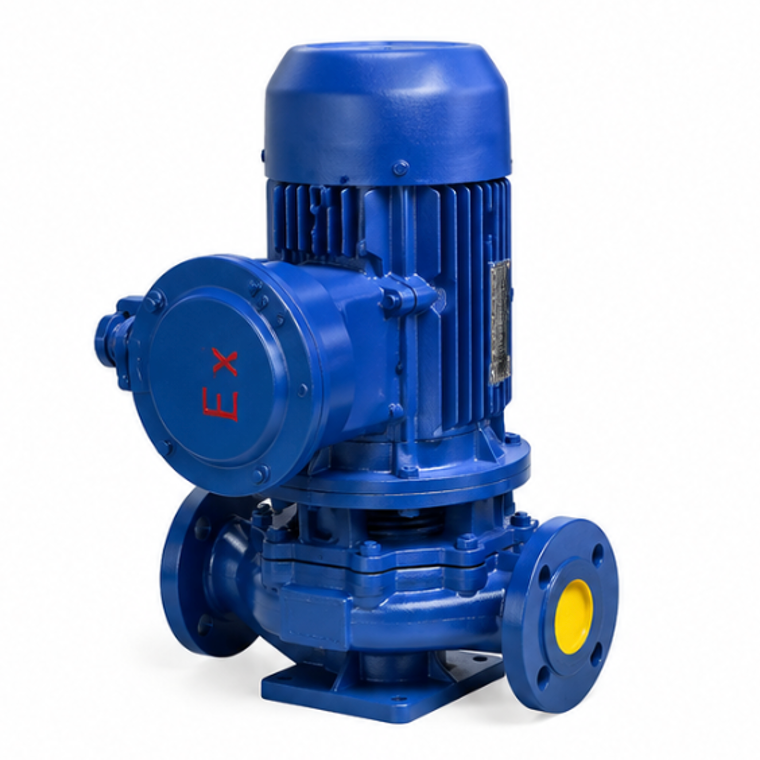

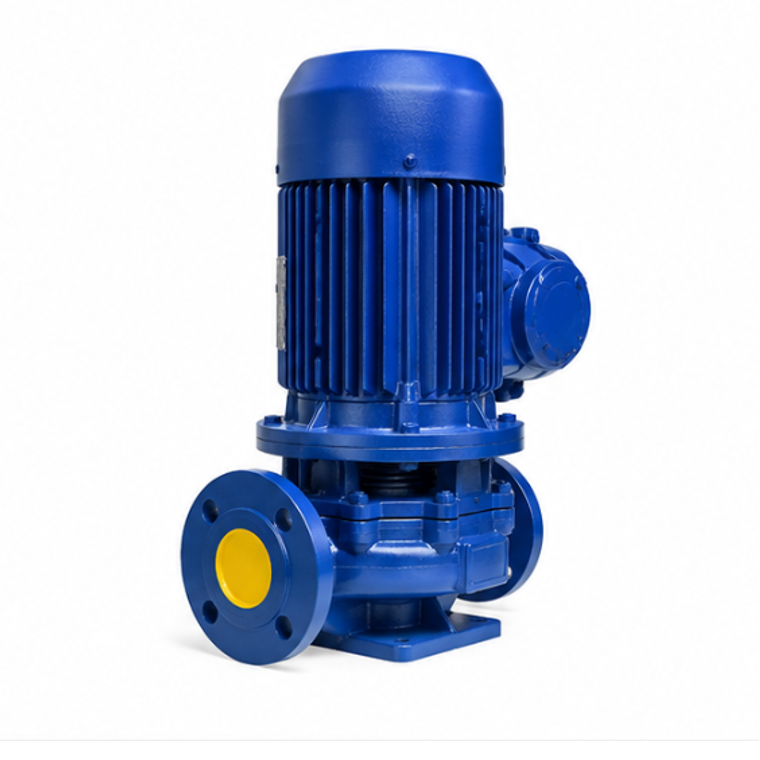

YG series vertical oil pump is designed for transporting non-corrosive, flammable, and non-explosive liquid media. The pump adopts vertical inline centrifugal structure, providing compact design, stable operation, and convenient maintenance.

With optimized hydraulic performance and reliable sealing technology, YG series pump can effectively transport oil-based liquids with similar physical properties to water. The pump is suitable for industrial circulation and transportation applications requiring reliable performance and long-term operation.

YG series vertical oil pump is widely used in mechanical equipment, textile industry, light industry, and other industrial fields.

Model Meaning：

Features
·Designed for oil and similar liquid transportation.
·Vertical inline structure saves installation space.
·Stable performance with high efficiency.
·Reliable mechanical seal design.
·Low vibration and low noise.
·Compact structure and easy installation.
·Long service life.
·Suitable for continuous industrial operation.

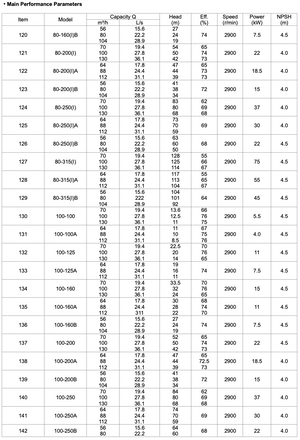

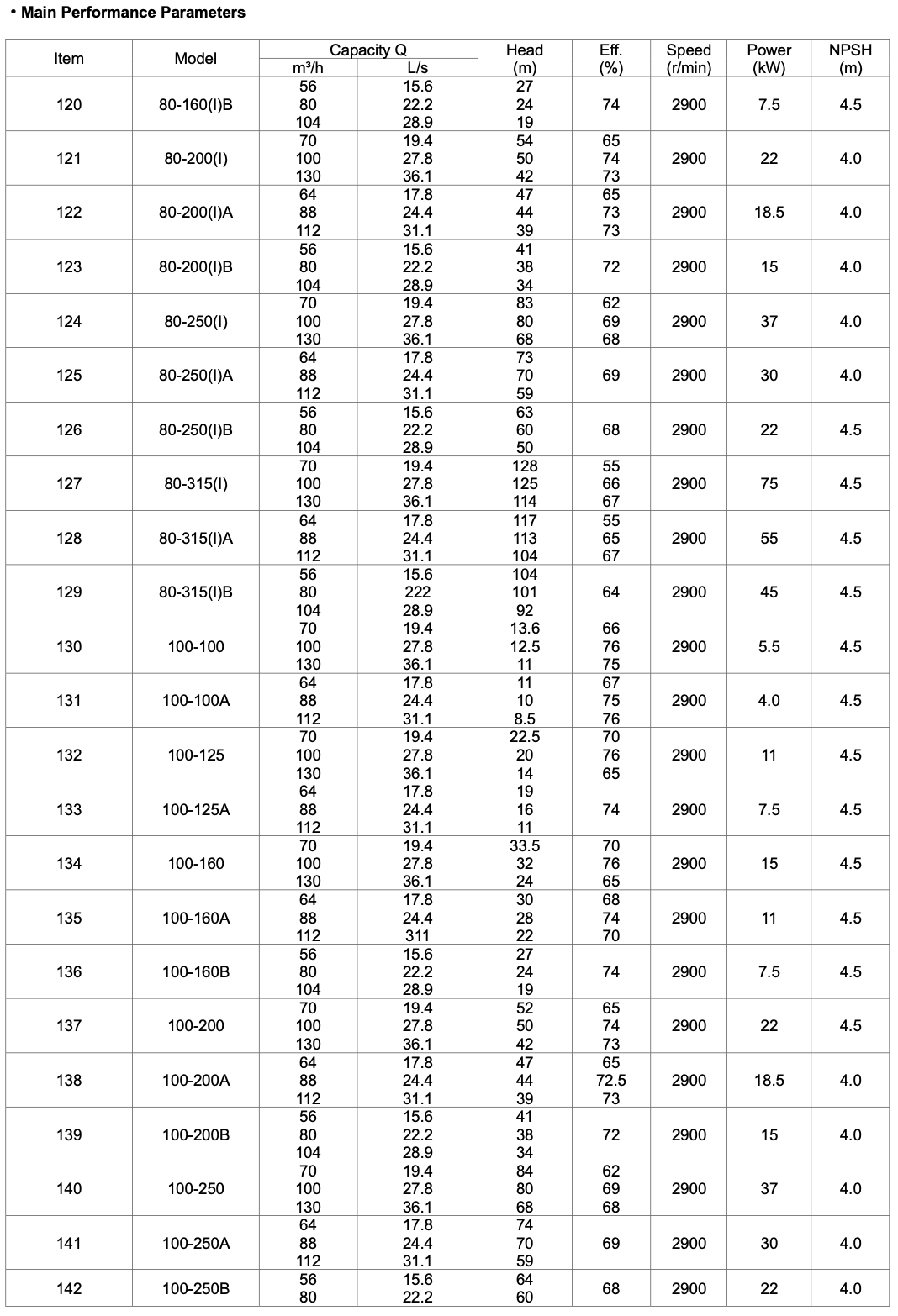

Parameters
·Flow Range: 1.4~194.4 m³/h
·Head Range: 10~230 m
·Speed: 2900 r/min
·Maximum Pressure: ≤1.6 MPa
·Medium Temperature: 20~120℃
·Density: ≤1000 kg/m³
·Motor Power: 0.37~200 kW
·Medium: Non-corrosive, non-explosive oil liquids

Application
·Mechanical industry.
·Textile industry.
·Light industry.
·Industrial oil circulation systems.
·Equipment cooling systems.
·Manufacturing process systems.
·Oil transfer applications.
