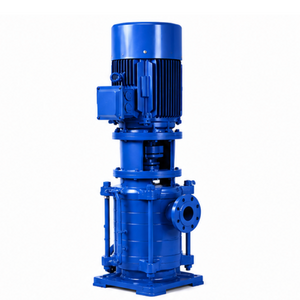

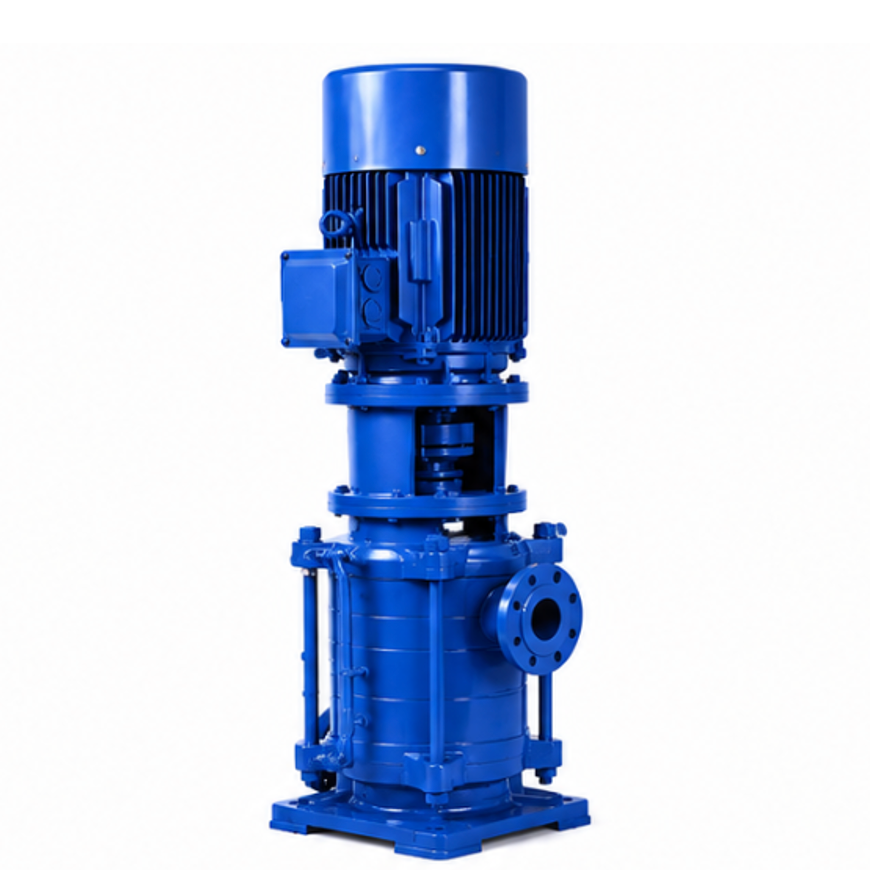

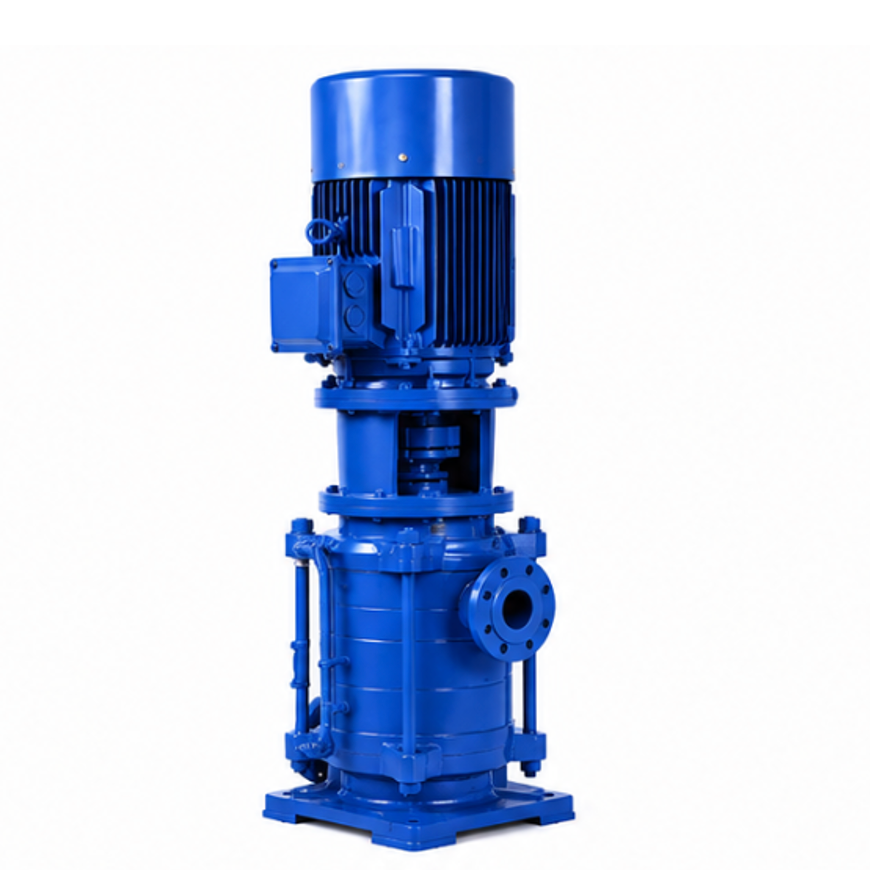

Name: DL/DLR Vertical Multistage Pump
Brand: willingfluid
Price: 999.00 USD
Availability: InStock

Home Water Supply Pumps

DL/DLR Vertical Multistage Pump

$999.00

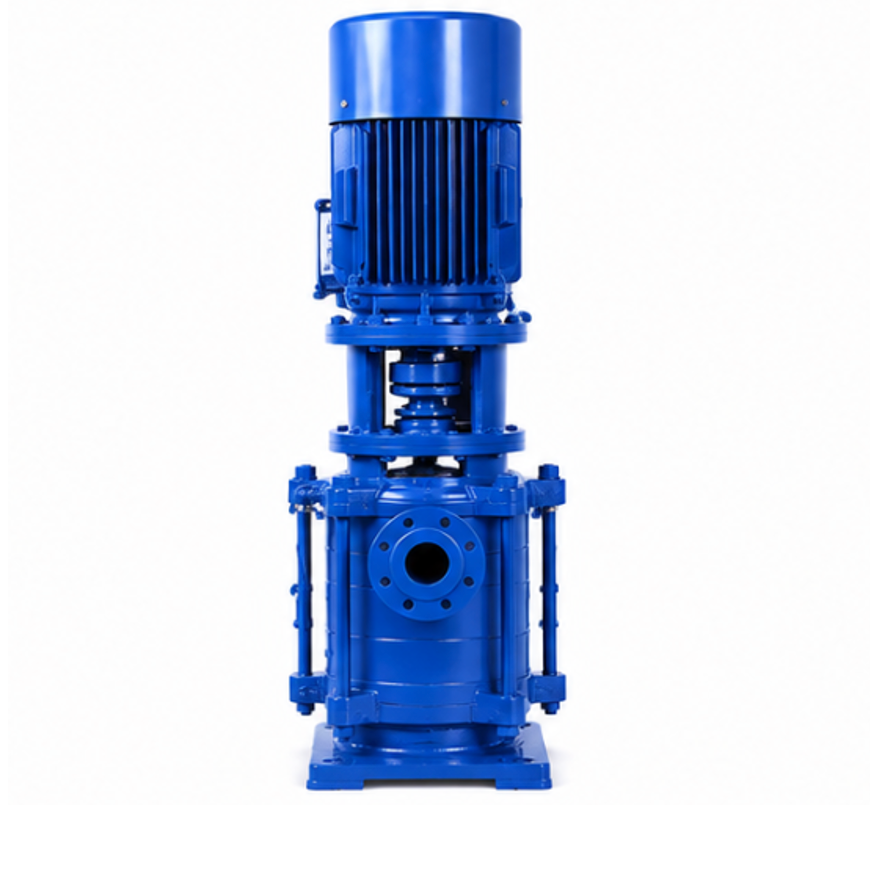

The DL/DLR Vertical Multistage Centrifugal Pump is a high-efficiency vertical multistage pump designed for high-pressure water supply applications. It features compact structure, stable performance, easy installation, and reliable operation for industrial, building, and fire protection systems.

40 People are viewing this right now

The DL/DLR Vertical Multistage Centrifugal Pump is a new generation high-efficiency pump designed according to national requirements for high-rise building water supply and drainage systems, as well as fire protection standards. With an advanced hydraulic model, the pump provides excellent efficiency, stable performance, and a wide operating range to meet various water supply requirements.

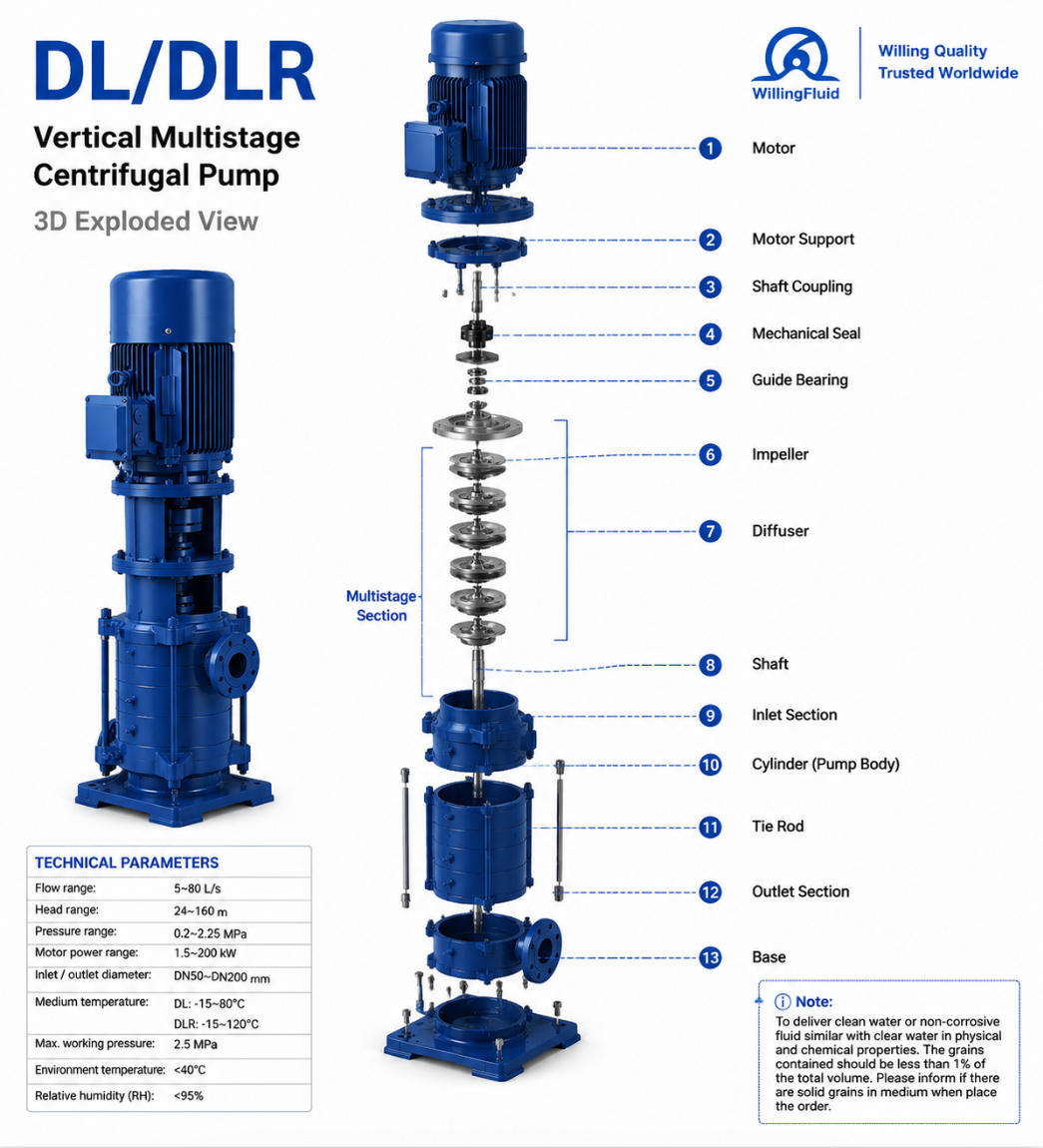

Adopting a vertical sectional structure, DL/DLR series features compact design, small installation footprint, and convenient maintenance. The pump is equipped with multiple impellers connected in series to achieve higher pressure output while maintaining reliable operation.

The DL series is suitable for clean water applications, while the DLR series is designed for higher temperature medium transportation. With its durable structure and reliable performance, this pump is widely used in industrial water supply, municipal projects, high-rise buildings, fire-fighting pressurization, long-distance water transfer, heating circulation, boiler systems, and air-conditioning cooling systems.

Model Meaning：

Features
·High Efficiency Hydraulic Design provides excellent performance and energy-saving operation.
·Vertical Multistage Structure delivers high pressure with compact installation space.
·Stable and Reliable Operation with durable components and optimized hydraulic performance.
·Space-Saving Design reduces installation area and simplifies pipeline arrangement.
·Easy Maintenance with sectional structure for convenient inspection and servicing.
·Wide Application Range suitable for water supply, fire protection, heating circulation, and industrial systems.
·High Temperature Capability DLR model supports higher temperature fluid transportation up to 120℃.

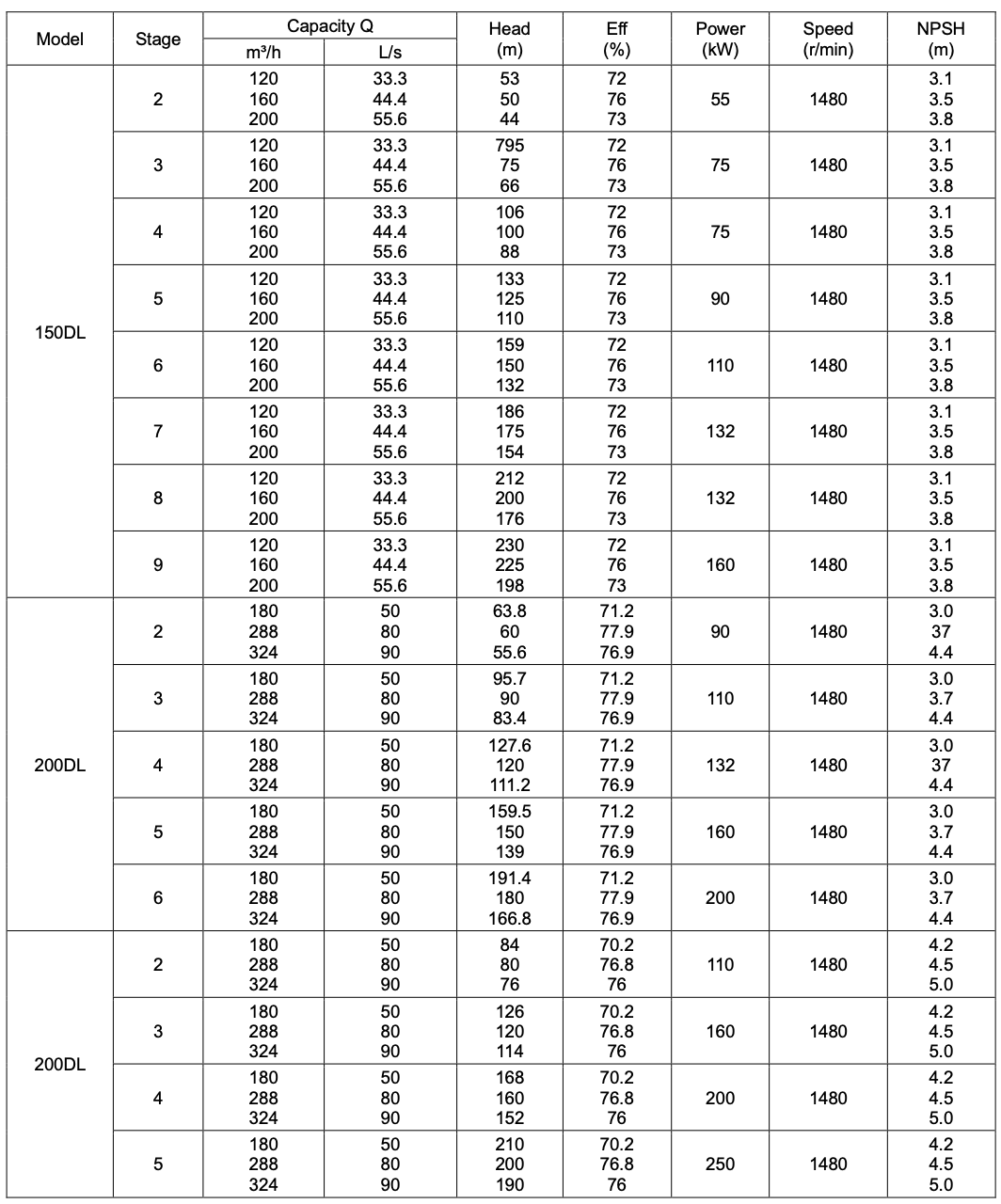

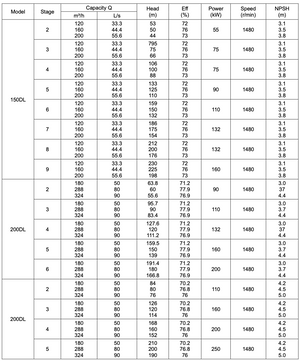

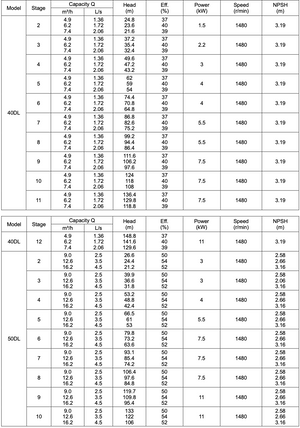

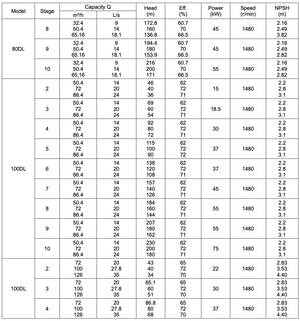

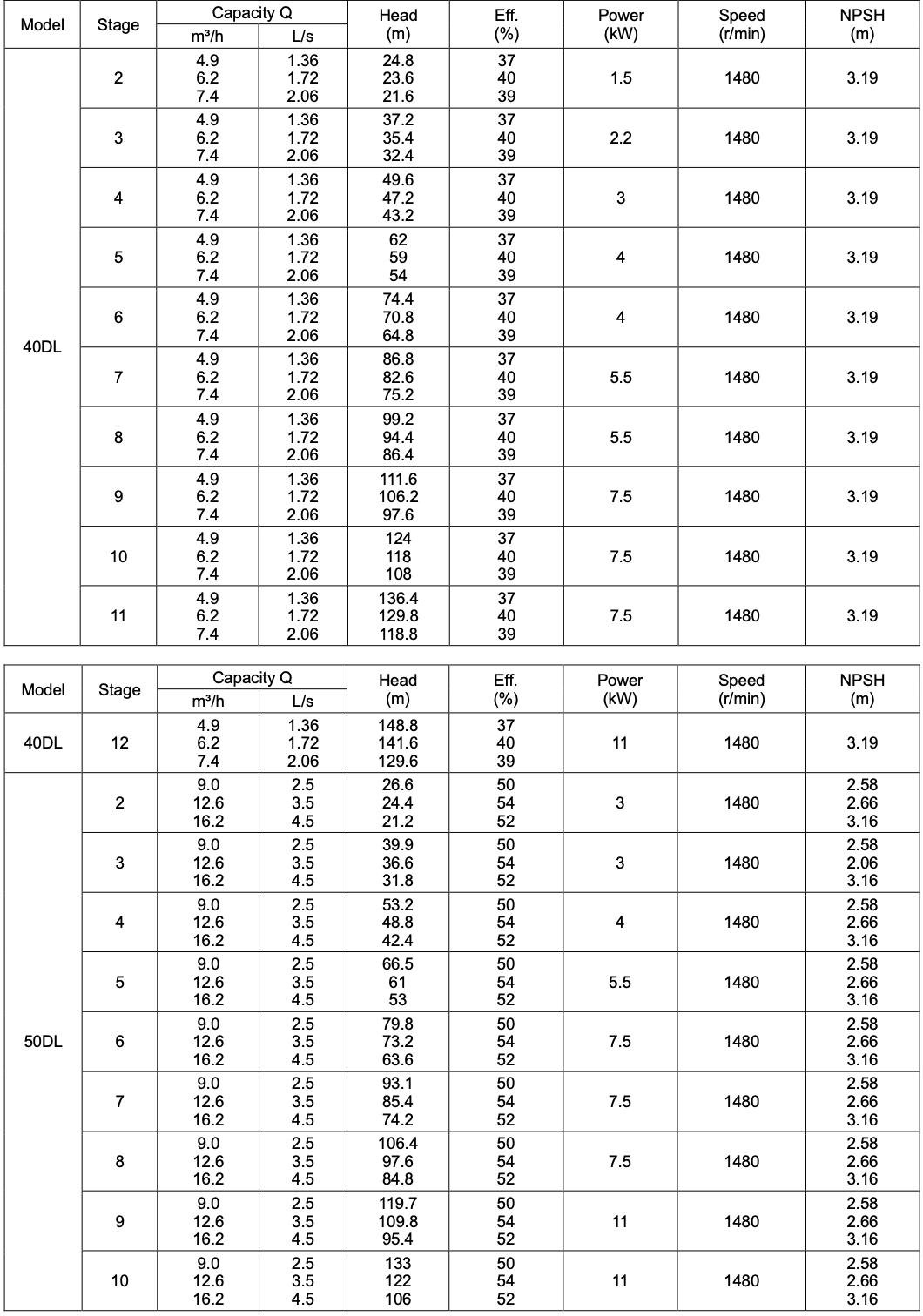

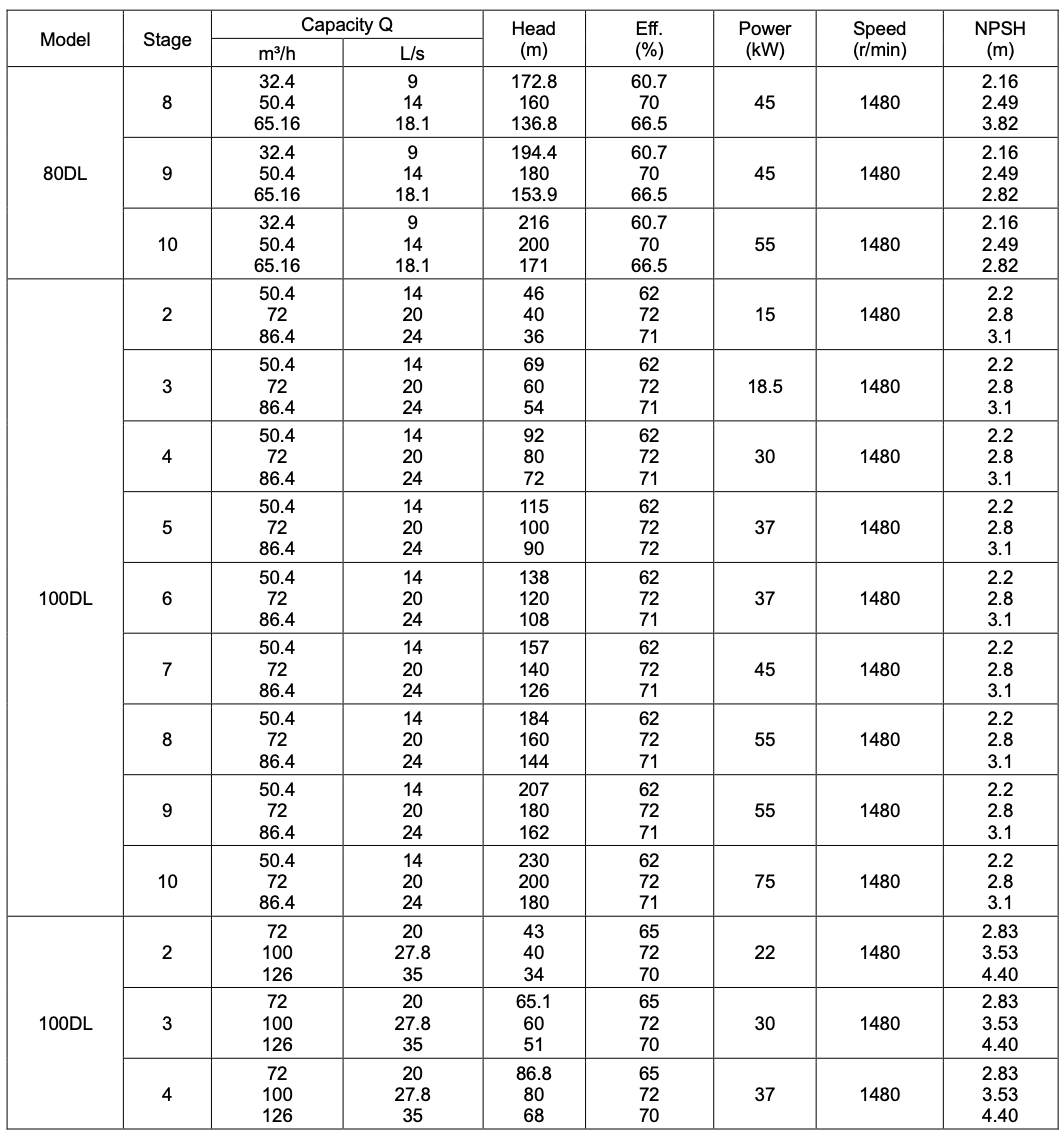

Parameters
The DL/DLR Vertical Multistage Centrifugal Pump is designed for clean water or fluids with similar physical and chemical properties. It features a flow range of 5–80 L/s, head range of 24–160 m, and pressure range of 0.2–2.25 MPa. Motor power ranges from 1.5–200 kW, with inlet and outlet diameters from DN50–DN200 mm. The medium temperature range is -15℃ to 80℃ for DL and -15℃ to 120℃ for DLR, with a maximum working pressure of 2.5 MPa.

Application
·High-rise building water supply and drainage systems
·Fire-fighting pressurization systems
·Industrial water supply and process systems
·Municipal water supply projects
·Long-distance water transfer systems
·Heating circulation systems
·Boiler water supply systems
·Air-conditioning cooling water circulation systems
