Name: IS Single-stage Centrifugal Pump
Brand: willingfluid
Price: 99.00 USD
Availability: InStock

Home Water Supply Pumps

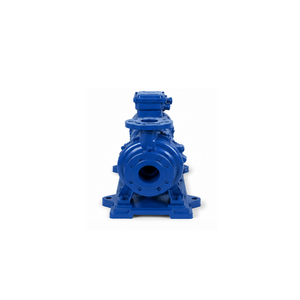

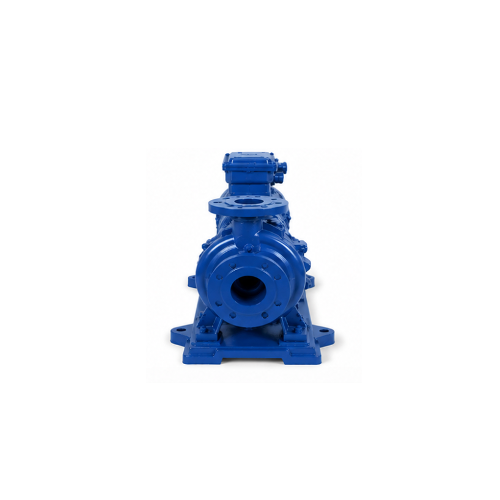

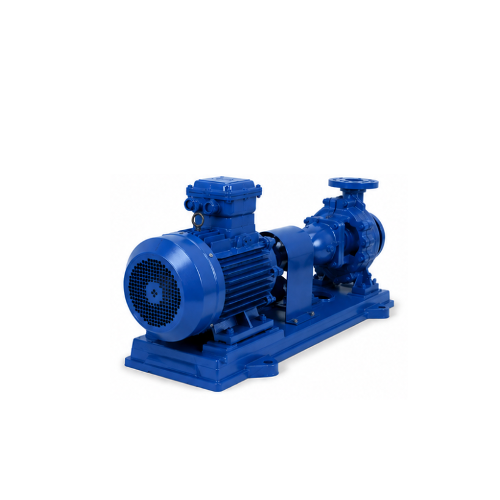

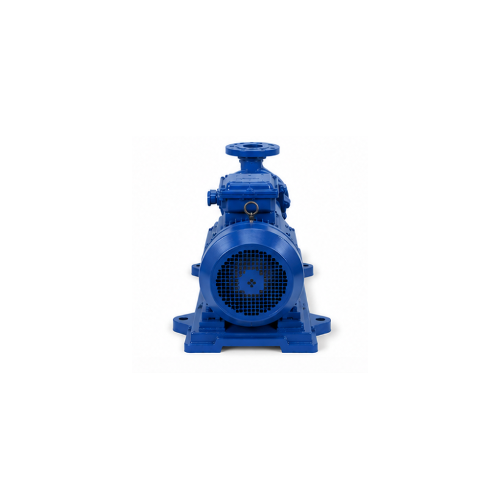

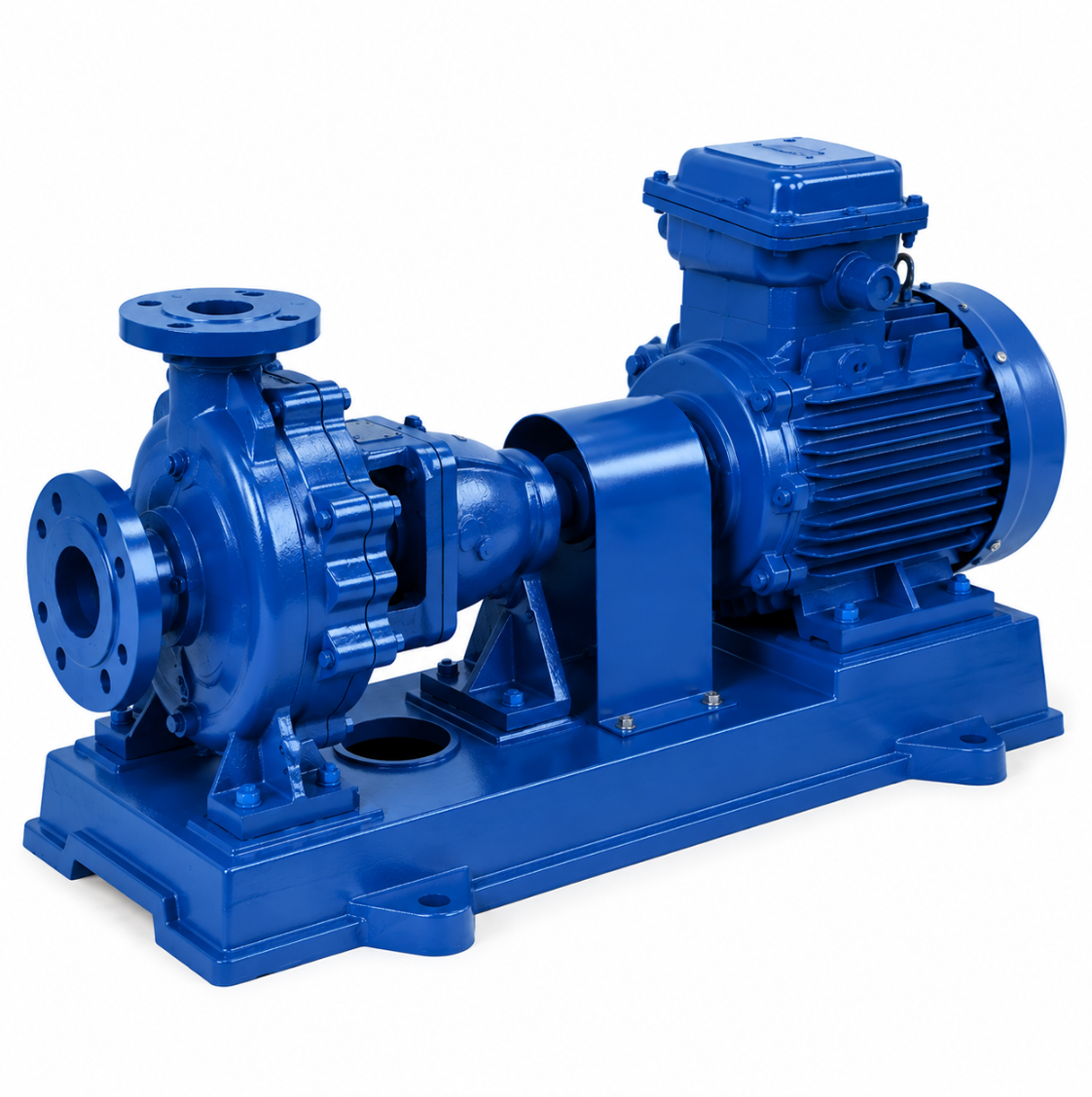

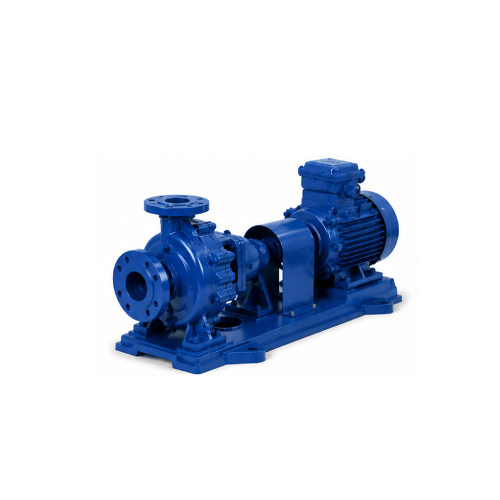

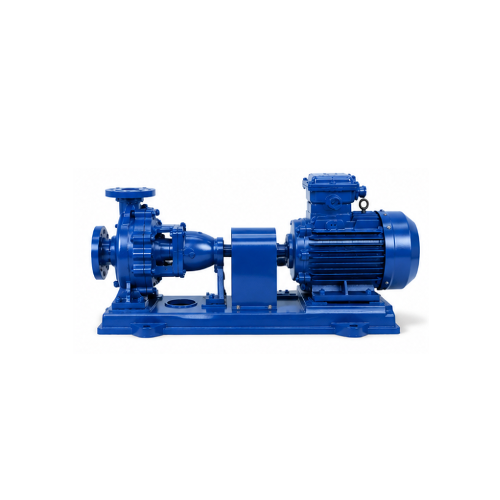

IS Single-stage Centrifugal Pump

$99.00

IS Single-stage Centrifugal Pump is a reliable and efficient clean water pump designed for industrial, municipal and agricultural applications. It features a simple structure, stable performance, easy maintenance and efficient operation for transporting clean water and similar liquids.

40 People are viewing this right now

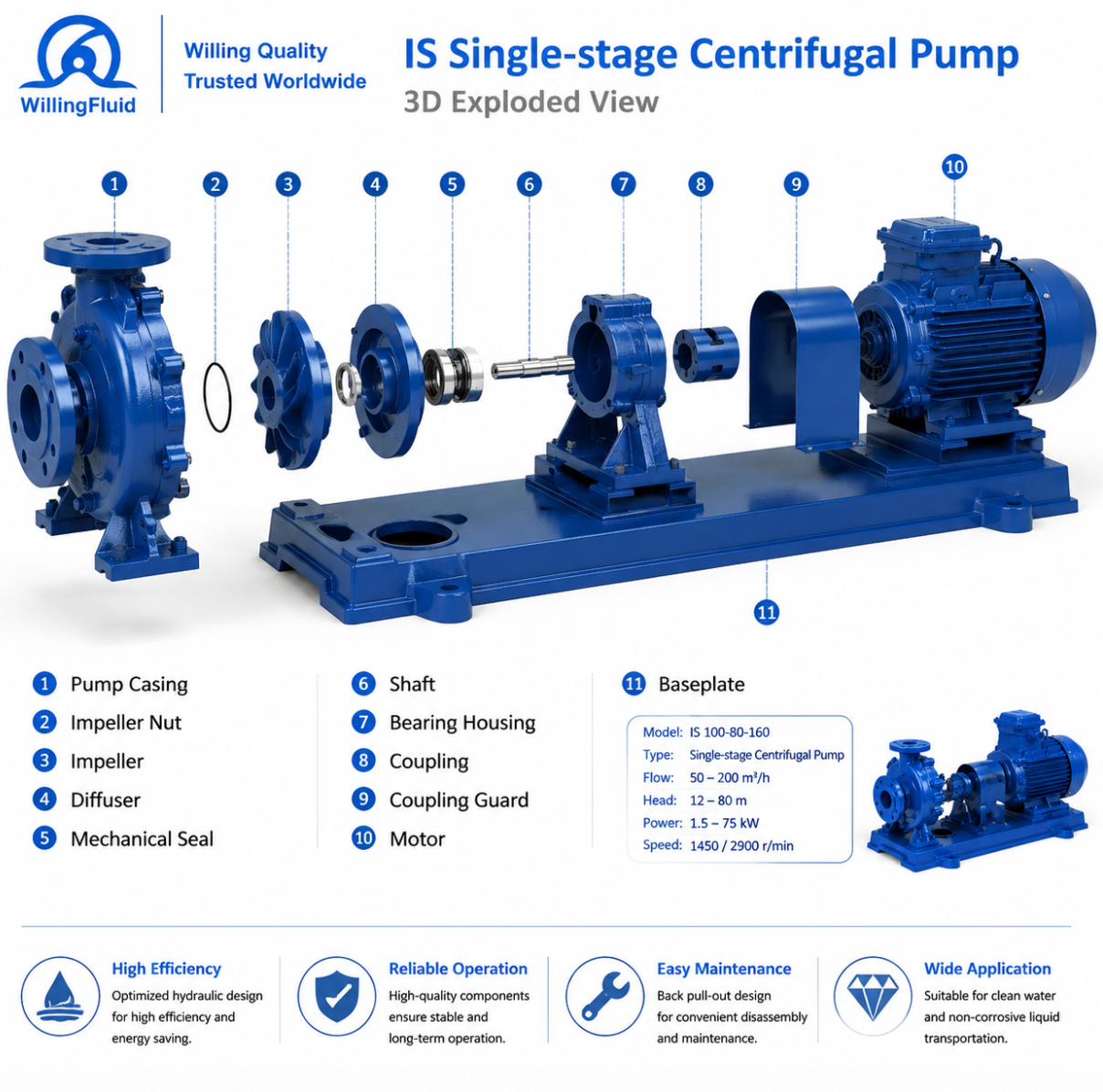

IS Single-stage Single-suction Centrifugal Pump is a new generation of standard centrifugal pump designed for clean water and liquids with similar physical and chemical properties. The pump adopts a back-pull-out structure with the inlet and shaft arranged in the same direction, providing stable hydraulic performance and convenient maintenance.

The pump features high efficiency, reliable operation and simple structure. The optimized impeller design ensures smooth flow passage, low vibration and long service life. It is suitable for transporting clean water and non-corrosive liquids in industrial, municipal and agricultural applications.

With excellent versatility and easy installation, IS series centrifugal pump is widely used in water supply and drainage systems, industrial circulation systems, agricultural irrigation and various general water transfer applications.

Model Meaning：

Features
• High efficiency hydraulic design
Optimized impeller and flow passage improve energy efficiency.

• Simple and reliable structure
The standard centrifugal design ensures stable operation and long service life.

• Easy maintenance
Back pull-out structure allows convenient inspection and maintenance.

• Smooth operation
Balanced rotating components reduce vibration and noise.

• Wide application range
Suitable for various clean water transfer systems.

• Corrosion-resistant options available
Material selection can be customized according to different media.

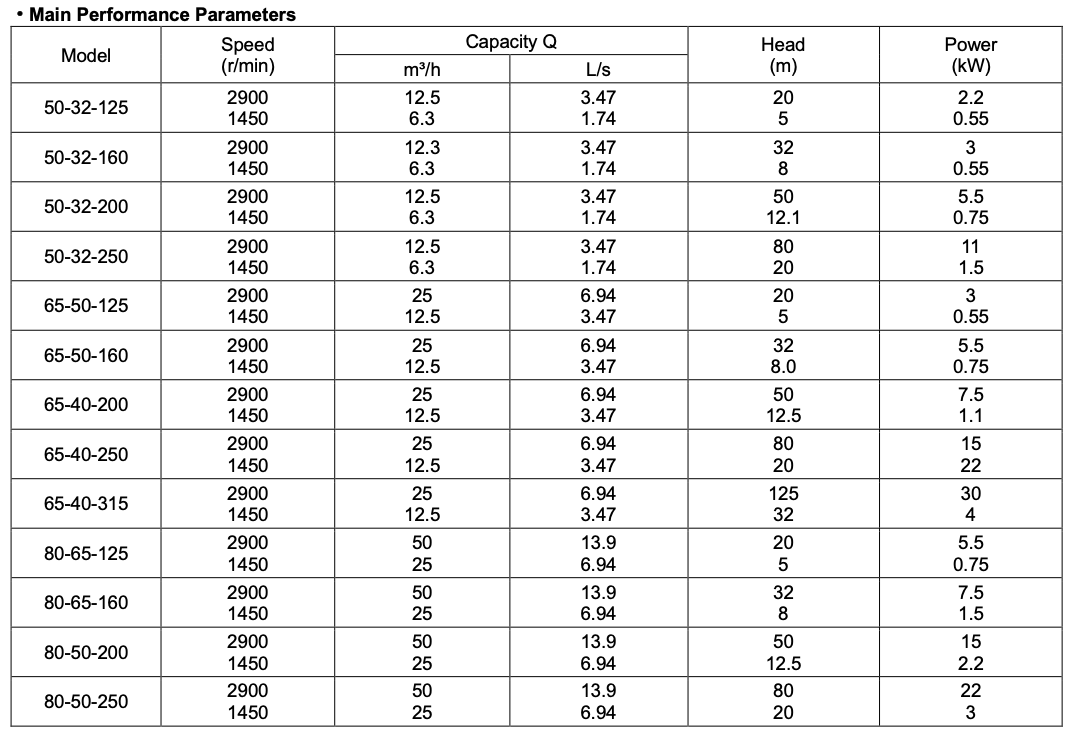

Parameters
·Flow Range: 6.3~400 m³/h
·Head Range: 5~125 m
·Speed: 1450 / 2900 r/min
·Motor Power: 0.55~110 kW
·Inlet Diameter: 25~300 mm
·Outlet Diameter: 25~250 mm
·Medium Temperature: ≤80℃
·Working Pressure: ≤1.6 MPa

Application
• Municipal water supply and drainage
• Industrial water circulation systems
• Factory water supply systems
• Agricultural irrigation and drainage
• Building water supply
• Cooling water circulation
• General clean water transfer
• HVAC water circulation systems
