Name: GDL Vertical Multistage Inline Pump
Brand: willingfluid
Price: 999.00 USD
Availability: InStock

Home Water Supply Pumps

GDL Vertical Multistage Inline Pump

$999.00

The GDL Vertical Multistage Inline Pump is an energy-efficient stainless steel multistage pump designed for high-pressure water supply and boosting applications. It features compact structure, low noise operation, easy installation, and reliable long-term performance.

40 People are viewing this right now

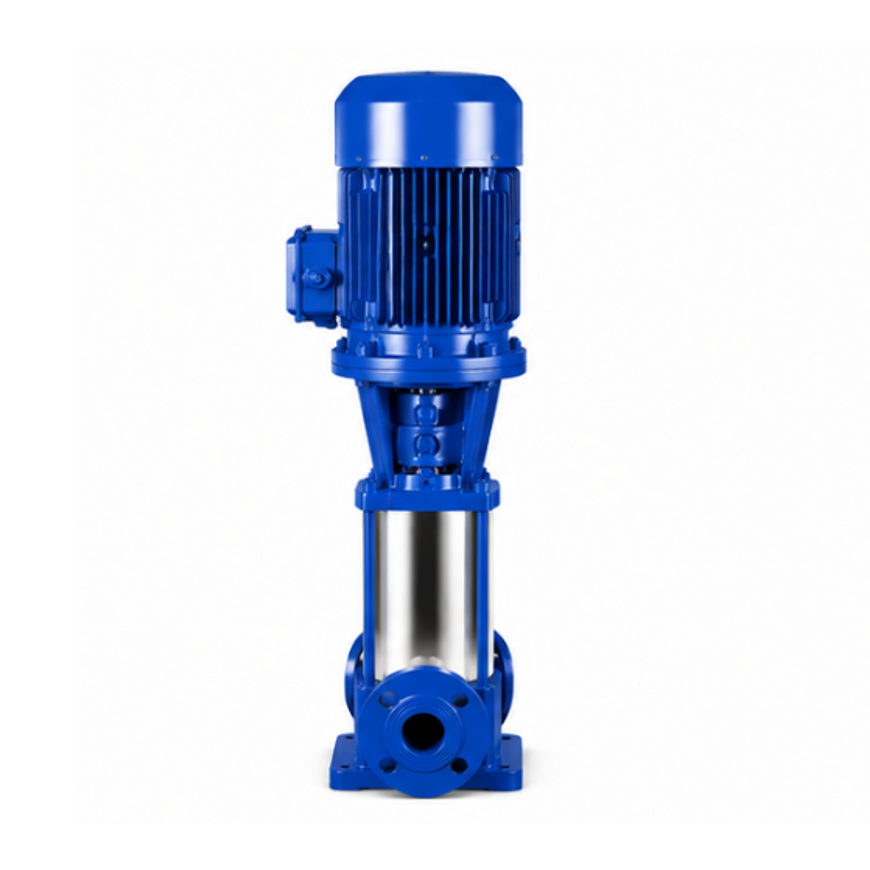

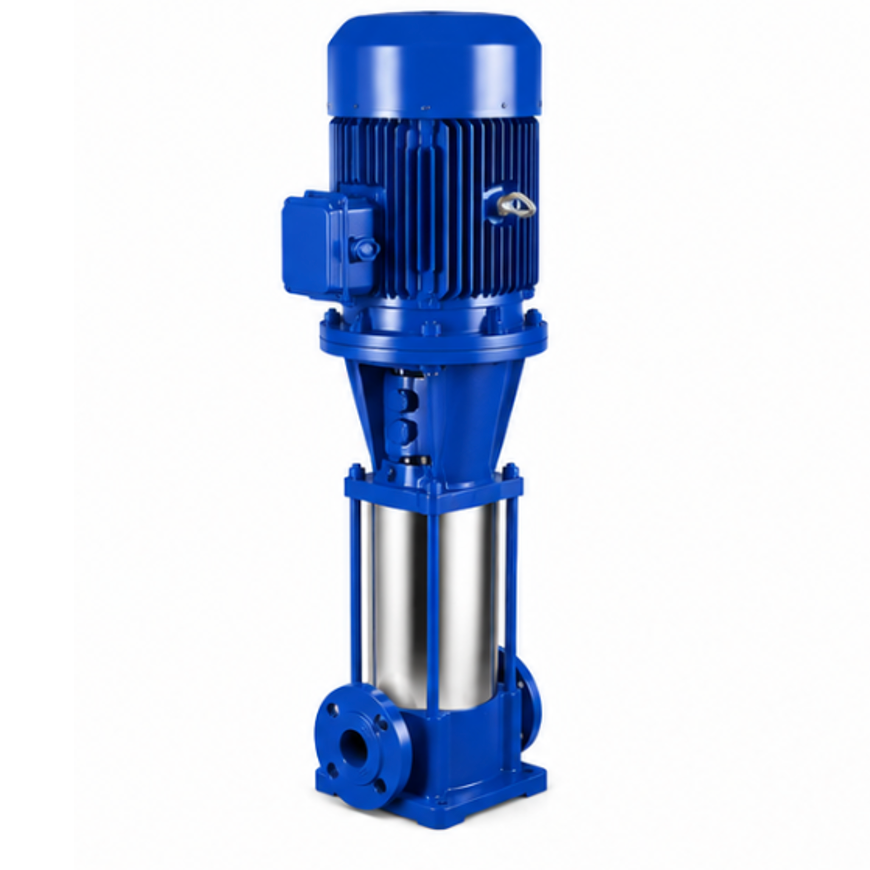

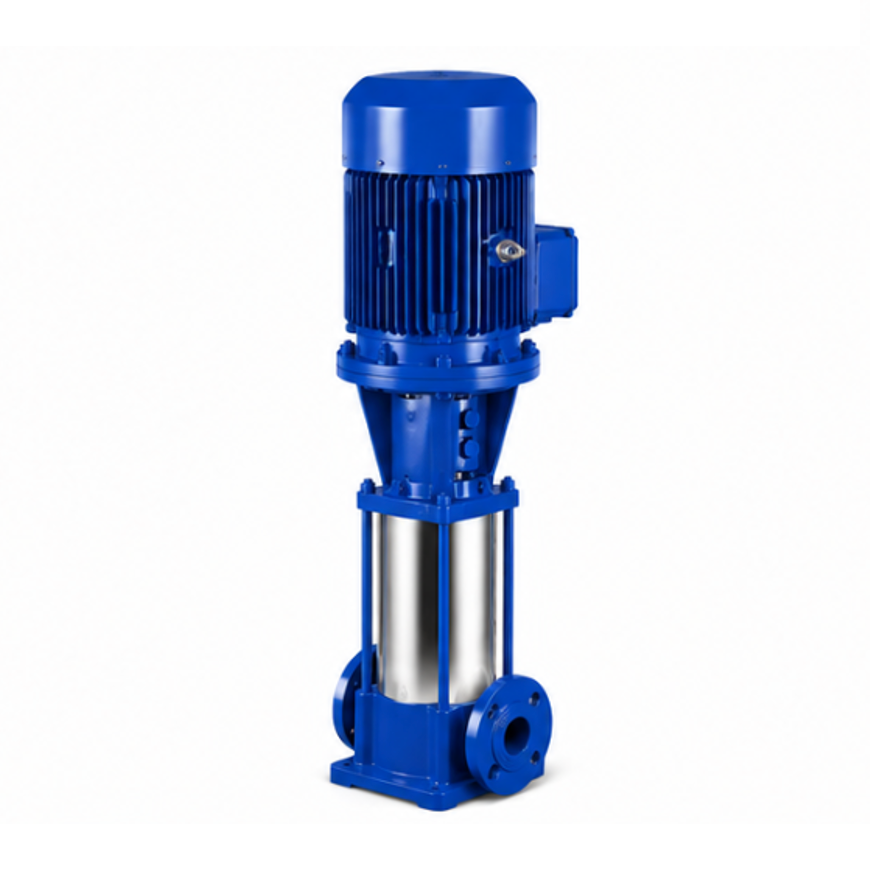

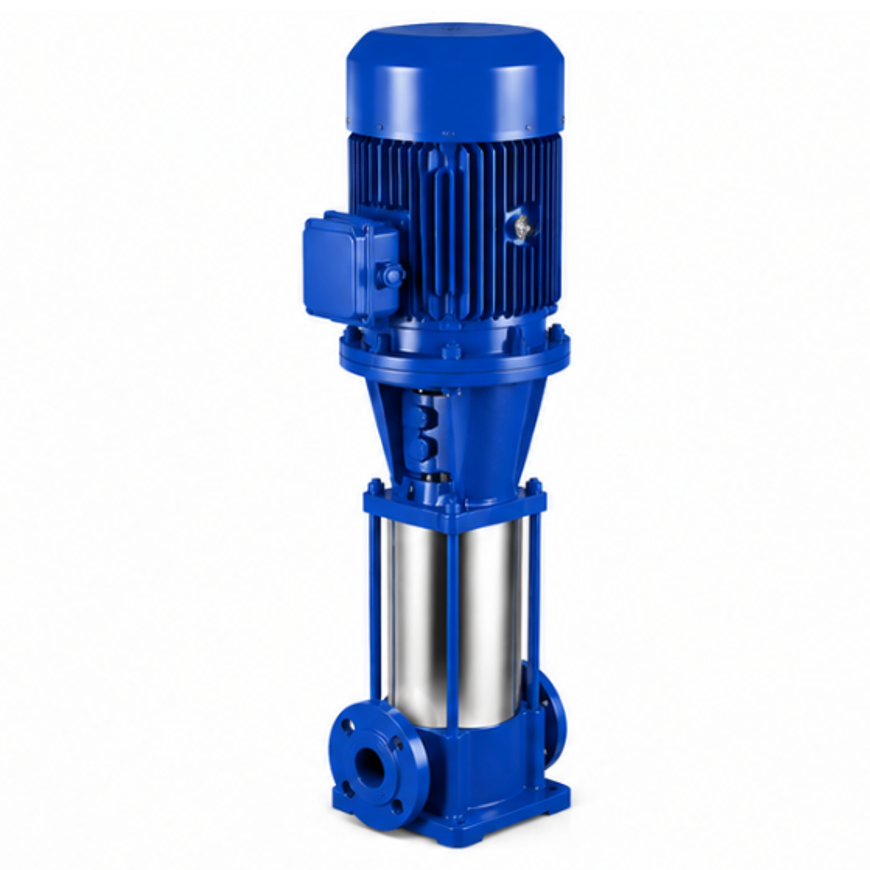

The GDL Vertical Multistage Inline Pump is a new-generation high-efficiency multistage centrifugal pump designed for energy-saving operation, compact installation, and reliable performance. With a vertical inline structure, the pump features a small footprint and convenient pipeline arrangement, making it suitable for various water supply and pressurization systems.

The pump adopts AISI 304 stainless steel components and a wear-resistant mechanical seal, providing excellent corrosion resistance, reliable sealing performance, and long service life without leakage. The advanced hydraulic design with balanced axial force allows the pump to operate more smoothly with lower noise and vibration.

Compared with traditional vertical multistage pumps, the GDL series offers easier installation and better adaptability to existing pipeline systems. It is widely used in high-rise building water supply, fire-fighting systems, industrial water circulation, boiler water supply, and other clean fluid transportation applications.

Model Meaning：

Features
·Vertical Inline Structure reduces installation space and simplifies pipeline connection.
·High Efficiency Hydraulic Design provides energy-saving operation and stable performance.
·AISI 304 Stainless Steel Construction offers excellent corrosion resistance and durability.
·Wear-Resistant Mechanical Seal ensures reliable sealing and prevents leakage.
·Hydraulic Balance Design reduces axial force, vibration, and operating noise.
·Compact and Easy Installation allows direct installation in the same level pipeline system.
·Wide Application Range suitable for building water supply, fire protection, industrial circulation, and clean fluid transfer.

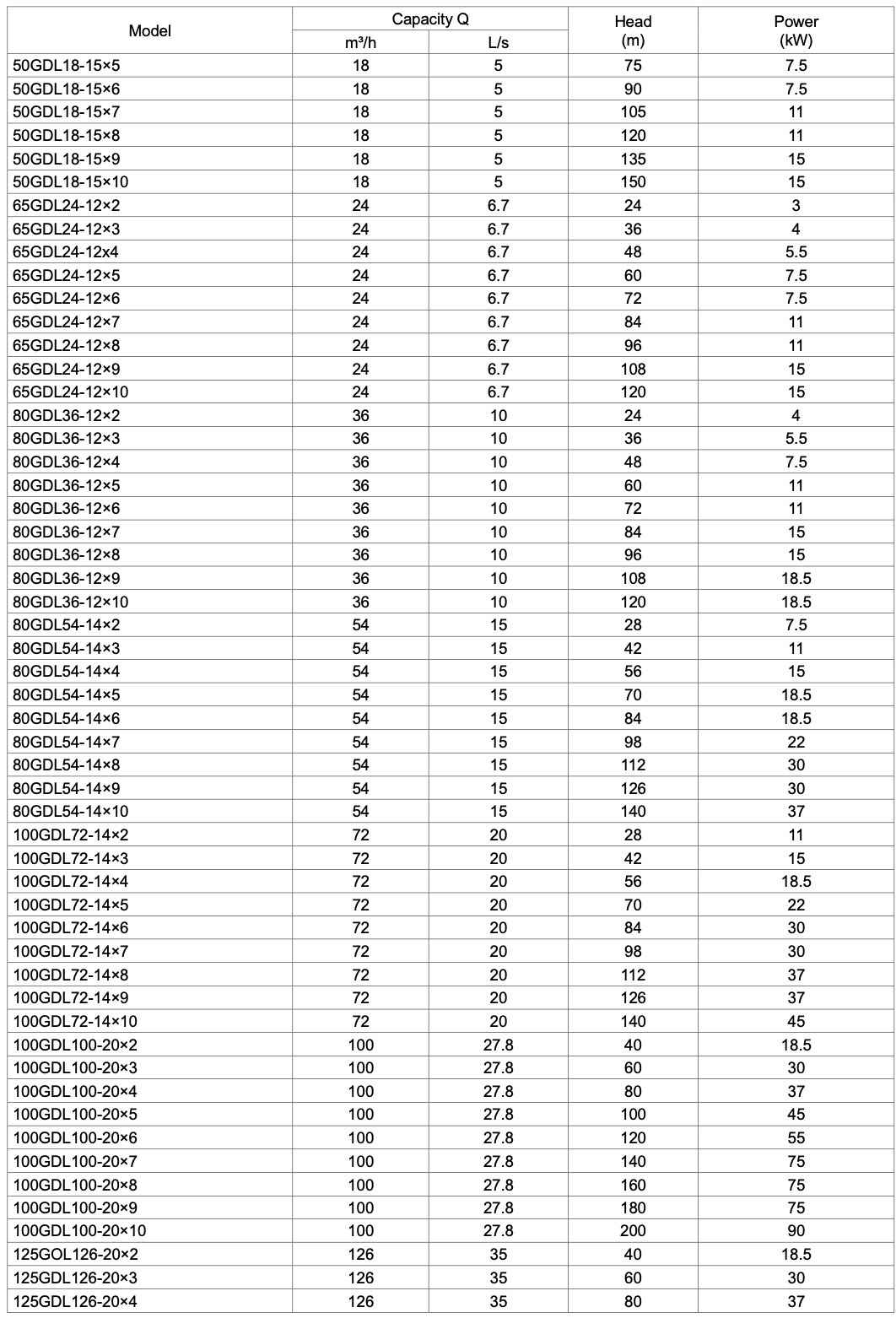

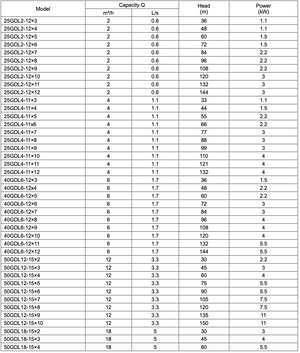

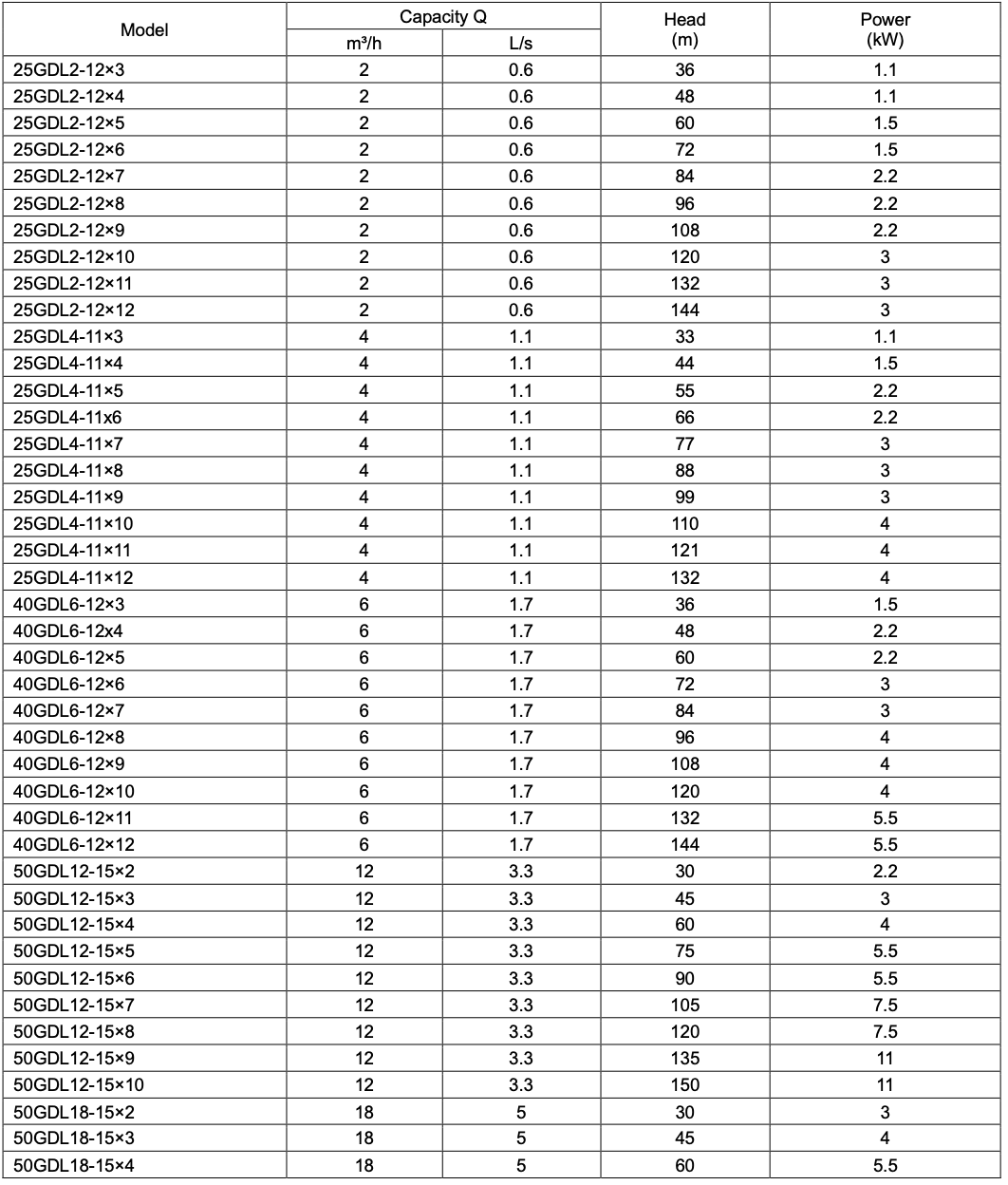

Parameters
The GDL Vertical Multistage Inline Pump is designed for clean water or similar non-corrosive fluids. It features a flow range of 1.4–194.4 m³/h, head range of 20–230 m, and a maximum pressure of 2.5 MPa. The pump speed is 2900 r/min, with a medium temperature range of -15℃ to +120℃ and an environment temperature up to 40℃. Motor protection grades include IP44/IP54, with insulation grades B/F. Rotation direction is clockwise.

Application
·Domestic water supply systems for high-rise buildings
·Fire-fighting water supply systems
·Water supply equipment and booster systems
·Boiler feed water systems
·Industrial water circulation and pressure boosting
·Deep well water supply systems
·Other clean water and non-corrosive fluid transportation applications
