Name: WYOW Split-case Single-stage Double-suction Centrifugal Pump
Brand: willingfluid
Price: 999.00 USD
Availability: InStock

Home Water Supply Pumps

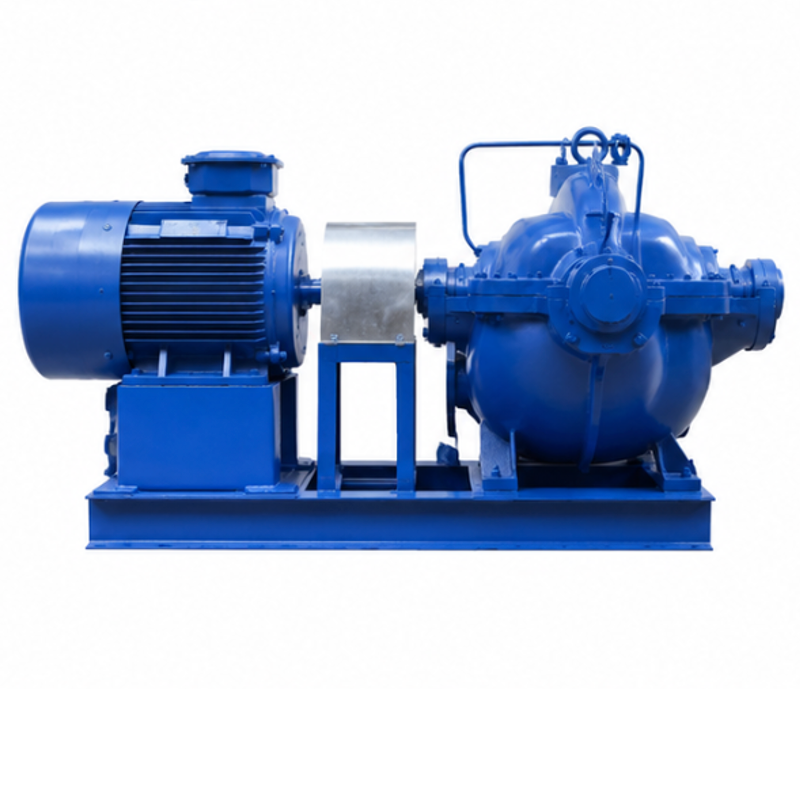

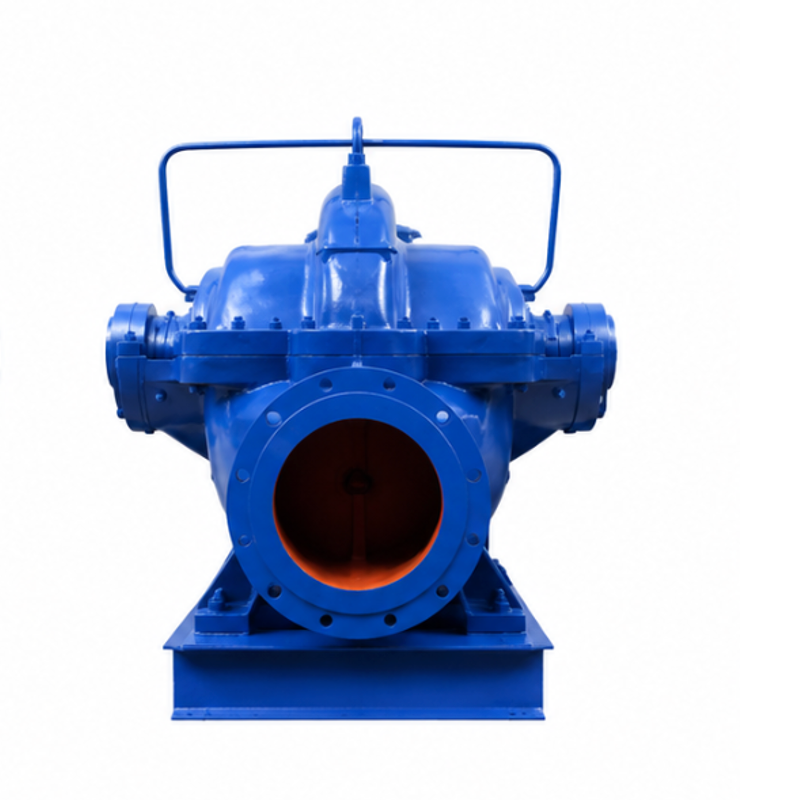

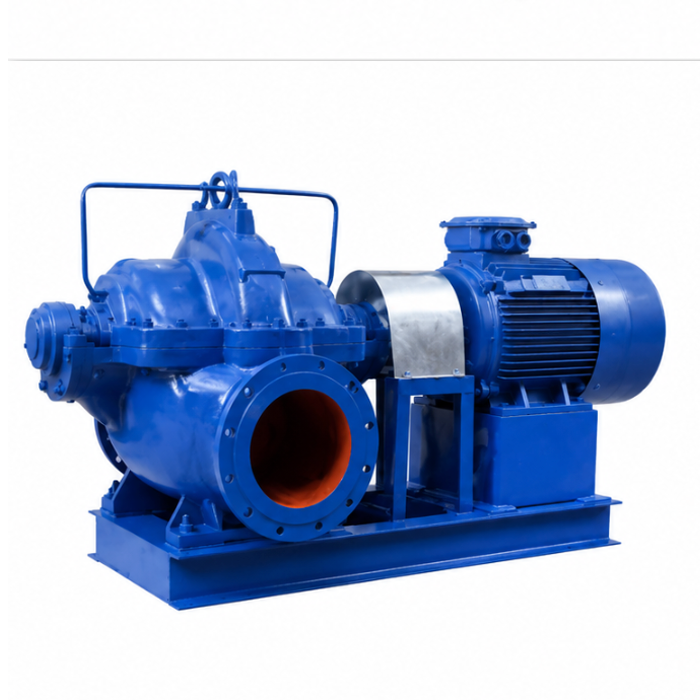

WYOW Split-case Single-stage Double-suction Centrifugal Pump

$999.00

WYOW split-case single-stage double-suction centrifugal pump is a high-efficiency horizontal centrifugal pump featuring stable performance, large flow capacity, easy maintenance and long service life. It is widely used for industrial water supply, municipal water systems, fire protection and large-scale water transfer projects.

40 People are viewing this right now

WYOW series split-case single-stage double-suction centrifugal pump is a high-efficiency and reliable centrifugal pump designed for large-scale water transfer applications. With a horizontal split-case structure and double-suction impeller design, the pump provides excellent hydraulic performance, stable operation and convenient maintenance.

The double-suction impeller effectively balances the axial hydraulic force, reducing vibration and extending the service life of bearings and mechanical components. The split casing structure allows easy access to internal components without removing the pipeline, which significantly reduces maintenance time and operating costs.

With a wide range of models and optimized hydraulic designs, WYOW pumps can achieve high efficiency by adjusting the impeller diameter to match different flow and head requirements. The series includes more than 40 categories and nearly 400 specifications, providing flexible solutions for various industrial and municipal water applications.

The pump is designed according to international and national standards including ISO2548 Class C, GB3216 Class C and GB/T5657, ensuring reliable performance, high efficiency and long-term stable operation.

Model Meaning：

Features
• Double-suction impeller design
The double-suction structure balances axial forces, reduces vibration and improves pump stability.

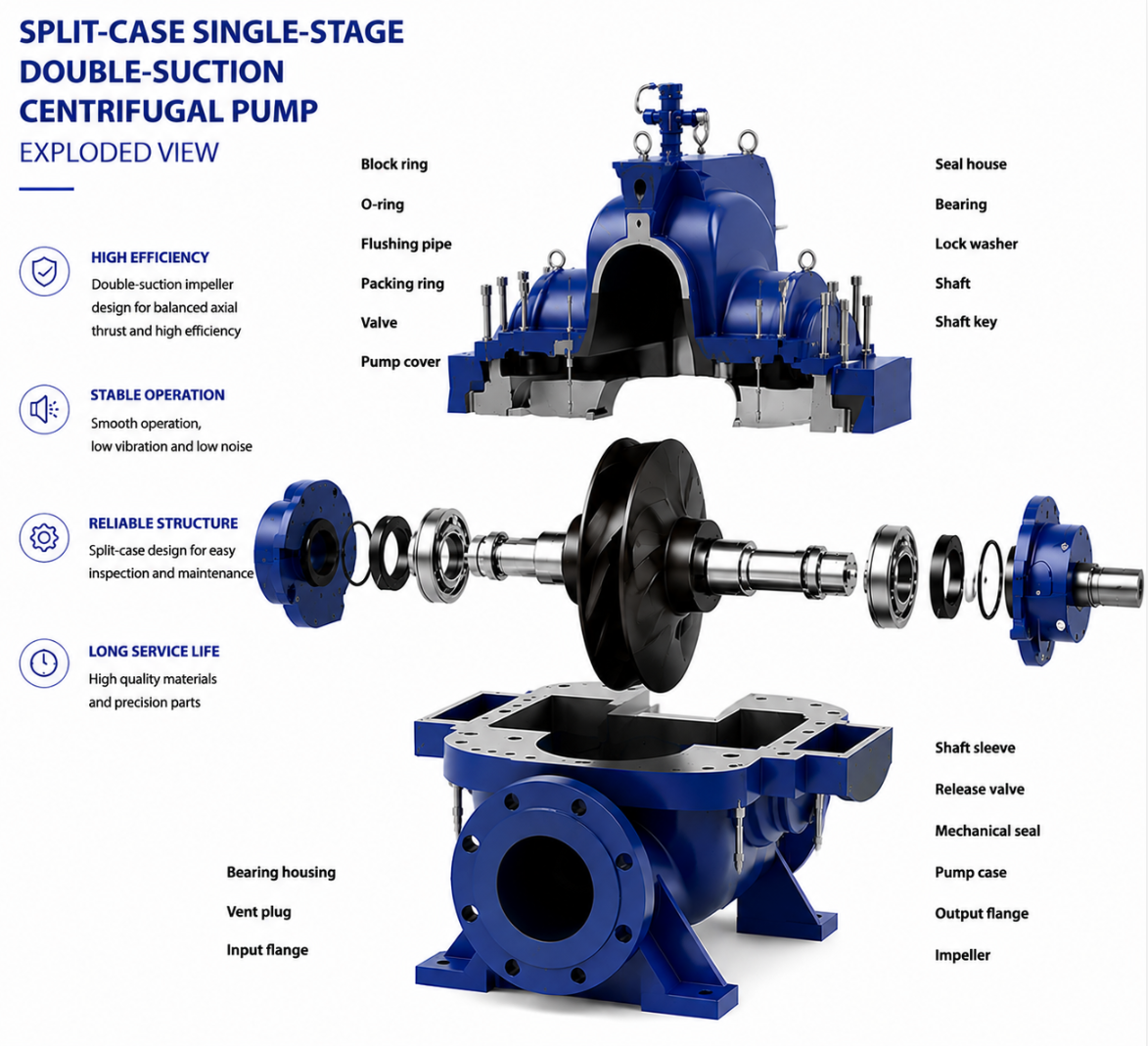

• Split-case structure for easy maintenance
The upper casing can be removed without dismantling pipelines, making inspection and maintenance more convenient.

• High efficiency hydraulic design
Optimized impeller and flow channel design provide excellent hydraulic performance and energy-saving operation.

• Wide performance range
Multiple models and impeller diameter adjustments allow the pump to meet various flow and head requirements.

• Stable and reliable operation
High-quality components ensure long continuous service life under demanding operating conditions.

• Suitable for large-scale applications
Designed for high-flow water transfer systems in industrial and municipal projects.

• Low vibration and noise
Balanced hydraulic design ensures smooth operation and reduces mechanical stress.

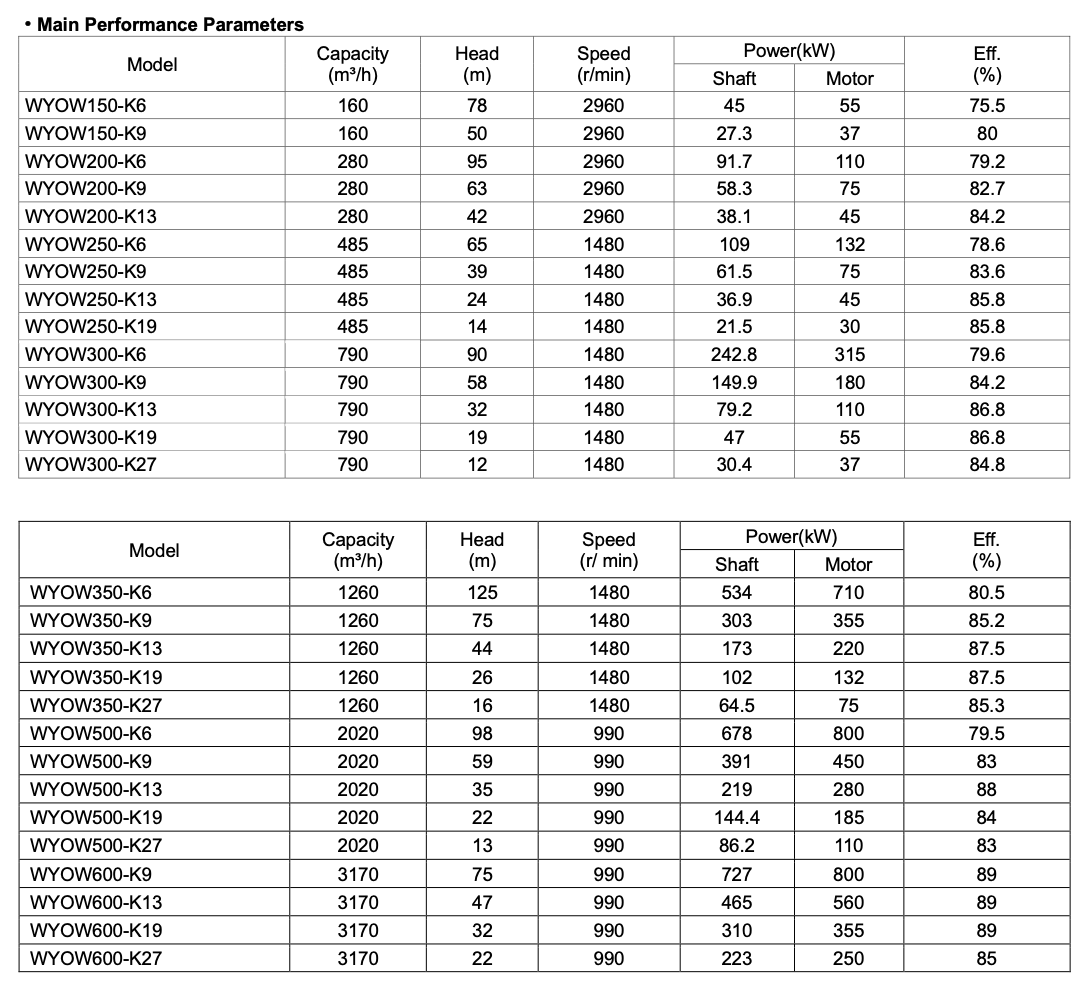

Parameters
WYOW Split-case Single-stage Double-suction Centrifugal Pump features a flow range of 68~3975 m³/h, a head range of 6~230 m, and rated speeds of 990, 1480, or 2960 r/min. The inlet and outlet diameter range is DN150~DN600 mm, with available voltage options of 380V, 6kV, and 10kV. The pump is designed for transporting clean water, with a maximum medium temperature of ≤80℃ and an ambient temperature of ≤40℃. The maximum working pressure is 1.0 MPa (H≤75m) or 1.6 MPa (H>75m). The flange dimensions comply with GB/T17241.6-1998 standards, and the pump design conforms to ISO2548 Class C, GB3216 Class C, and GB/T5657 standards.

Application
• Iron and steel metallurgy industries
• Petrochemical plants and refineries
• Paper manufacturing industries
• Oil fields and mining industries
• Power plants and energy projects
• Chemical processing plants
• Textile factories and sugar refineries
• Airport construction projects
• Municipal water supply and drainage systems
• Urban water supply projects
• Central heating circulation systems
• Fire water supply systems
• HVAC cooling water circulation systems
• Agricultural irrigation and drainage systems
• Large-scale industrial water transfer projects
