QJ Deep Well Submersible Electric Pump

$999.00

QJ Deep Well Submersible Electric Pump is a compact and reliable groundwater pumping solution designed for deep well water extraction. It features an integrated submersible motor, easy installation, stable operation and wide application in irrigation, municipal water supply, industrial water systems and drainage projects.

40 People are viewing this right now

QJ Deep Well Submersible Electric Pump is a specialized submersible pump designed for extracting groundwater from deep wells. The pump integrates the submersible motor and pump body into one compact unit, allowing it to operate directly underwater with reliable performance and convenient installation.

The pump is widely used for groundwater extraction, agricultural irrigation, municipal water supply, industrial water systems and water treatment projects. It can also be applied in rivers, reservoirs, canals and other water sources for water supply and drainage applications.

With a compact structure, simple design and close-coupled motor configuration, the QJ deep well submersible pump requires less installation space and eliminates the need for a dedicated pump station. It can be installed in various types of wells, including steel pipe wells, concrete wells and soil wells, making it suitable for different working environments.

The pump provides stable operation, high reliability and easy maintenance. With proper working conditions and regular management, the service life of the pump can be significantly extended.

Model Meaning：

Features
• Integrated submersible design
The pump and motor are directly coupled and operate underwater, providing safe and reliable performance.

• Wide installation adaptability
Suitable for various well conditions, including steel tube wells, concrete wells and soil wells.

• Compact structure and space-saving design
No need for a separate pump station, reducing installation costs and space requirements.

• Easy installation and maintenance
Simple structure makes installation, operation and maintenance more convenient.

• Reliable continuous operation
Designed for long-term groundwater extraction with stable hydraulic performance.

• Low material consumption
Optimized structure reduces material requirements while maintaining durability.

• Suitable for remote water supply
Ideal for areas with limited infrastructure, including rural and mountainous regions.

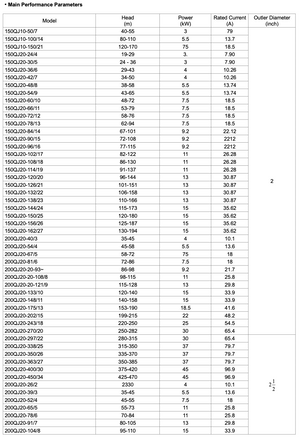

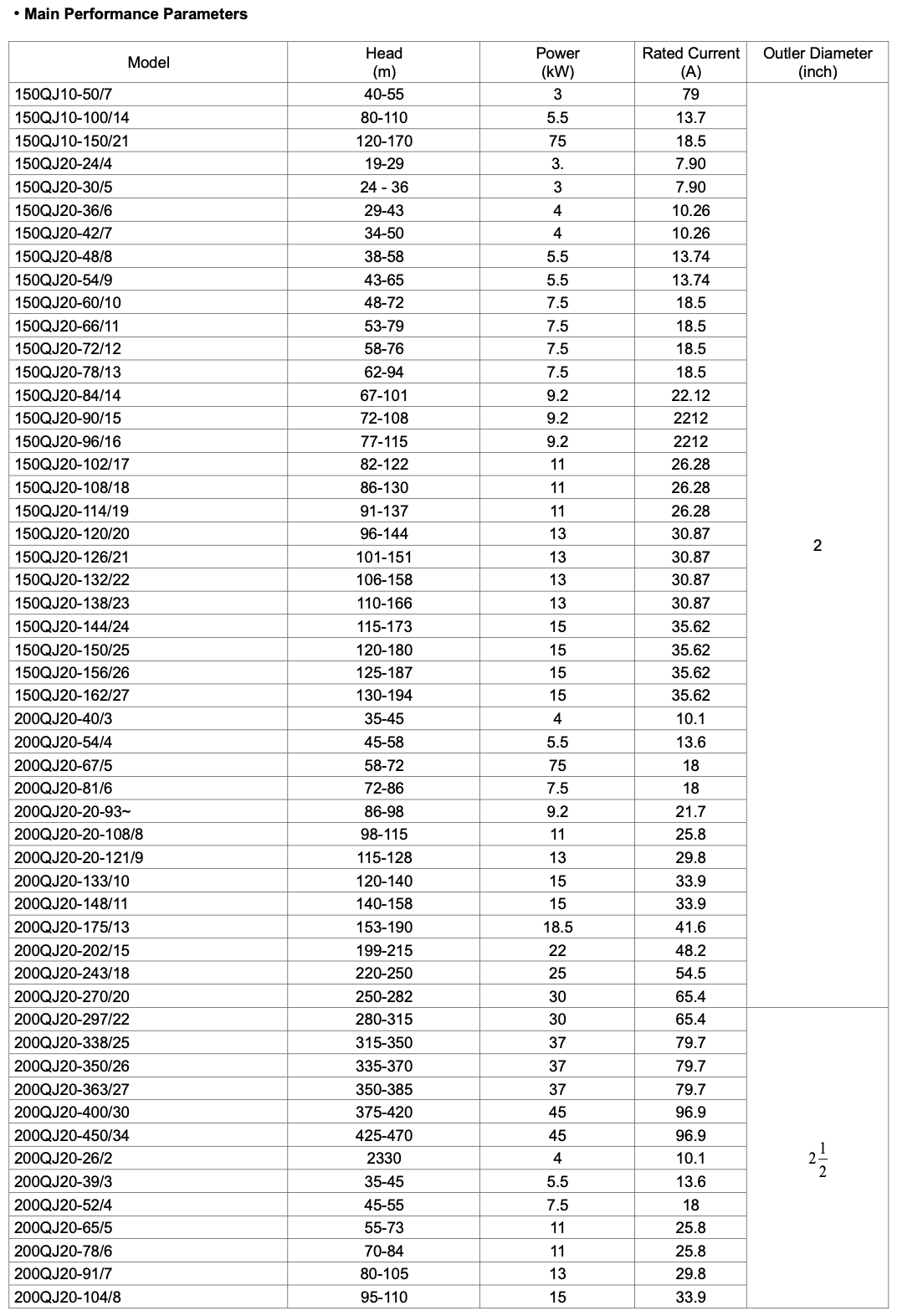

Parameters
QJ Deep Well Submersible Electric Pump is available with motor base diameters from 100 mm to 250 mm. The pump is designed for deep well water extraction with a rated flow range of approximately 1.5~500 m³/h and head range of 10~500 m depending on different models and stages. The pump speed is generally 2850 r/min, with rated voltage options including 380V, 660V, 3kV, 6kV and 10kV. The applicable medium is clean water with a temperature generally ≤30℃, containing no corrosive substances and excessive solid particles. The pump is suitable for deep wells with different depths and can be customized according to required flow, head and installation conditions.

Application
• Groundwater extraction from deep wells
• Agricultural irrigation systems
• Municipal water supply projects
• Industrial water supply systems
• Water treatment facilities
• Water supply for rural areas and mountainous regions
• Rivers, reservoirs and canal water transfer projects
• Drainage systems for cities, factories, mines and construction sites
• Railway and infrastructure water supply projects
