Name: XBD-L Vertical Single-stage Fire Pump
Brand: willingfluid
Price: 2999.00 USD
Availability: InStock

Home Fire Fighting System

XBD-L Vertical Single-stage Fire Pump

$2,999.00

XBD-L Vertical Single-stage Fire Pump is designed for fire protection systems, water supply pressurization, and drainage applications, delivering clean water and similar fluids.

40 People are viewing this right now

XBD-L vertical single stage fire pump is used to deliver non-solid clean water and fluids similar with water in physical and chemical properties. It is mainly used for pressuring water supply in fire systems. Also it can be used for water drainage in factories and mines.

Model Meaning：

Features
·It is low cost with attractive outlook. Its vertical structure design guarantees that it is less space demand and the gravity point is in the center of the pump legs, which improves the performance smoother and contributes to longer service life.
·The inlet and outlet are inline structures, which simplifies the installation of the pipelines.
·The pump head range can be changed by the variation of the pump impeller diameter to meet the special needs, so there is no need to recalculate the mounted space. Its installation is as easy as the model WYL

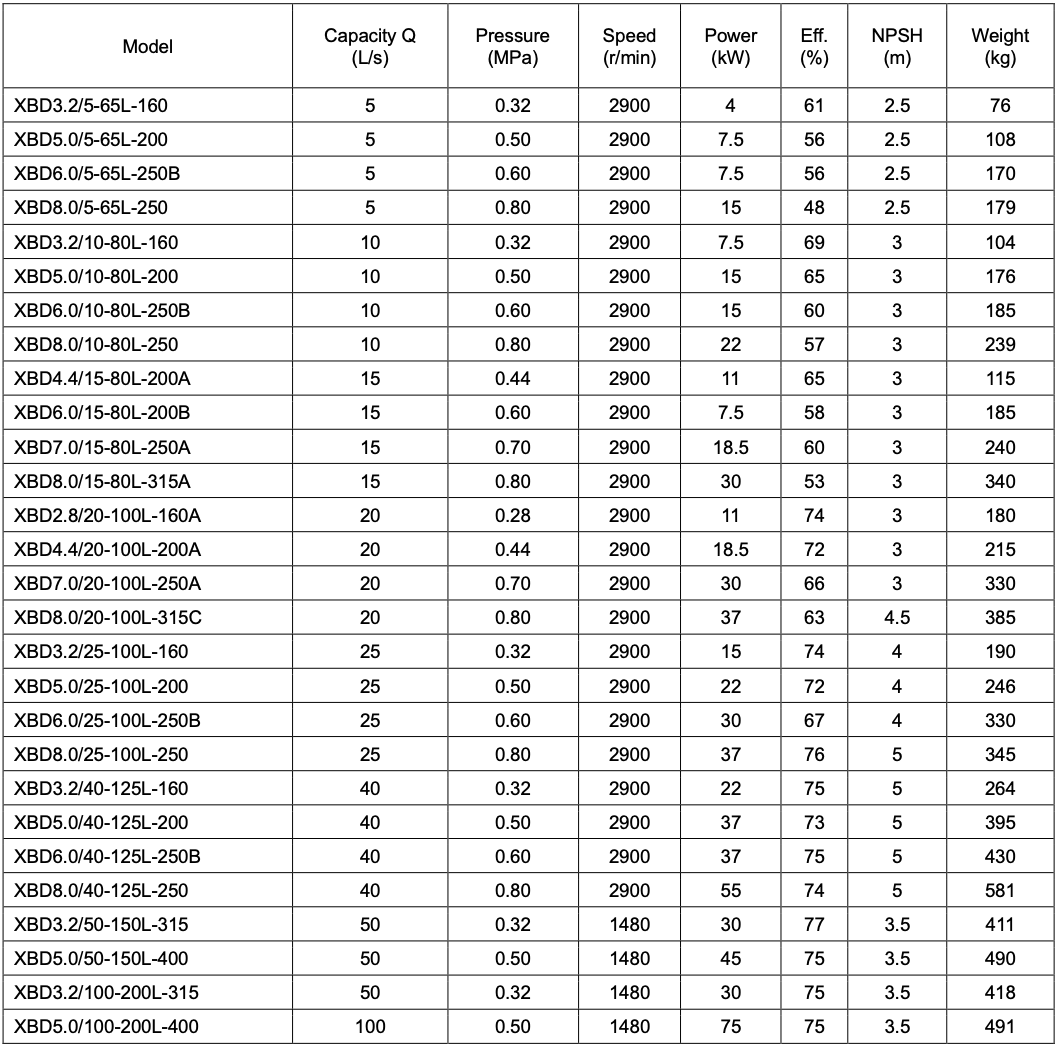

Parameters
·Flow range: 5~140L/s
·Pressure range: 0.31~1.5MPa
·Motor power range: 0.75~160kW
·Inlet/ outlet diameter: DN25~DN200mm

Application
Designed for reliable fire protection and water supply applications, XBD-L Vertical Single-stage Fire Pump is widely applied in buildings, factories, industrial facilities, warehouses, and municipal projects. It is commonly used for fire hydrant systems, sprinkler systems, emergency water supply, and pressure boosting applications. The pump is also suitable for clean water transfer and drainage requirements in industrial environments.
