Fire Fighting Pumps
Fire Fighting Pumps are designed to provide stable water flow and pressure for fire protection systems during emergency situations. They play a critical role in delivering water to fire hydrants, sprinkler systems, hose reels, and other firefighting equipment, ensuring rapid and reliable fire suppression.
These pumps are widely used in commercial buildings, industrial plants, warehouses, hospitals, airports, hotels, shopping malls, residential complexes, and municipal infrastructure projects. Fire pump systems are typically installed in dedicated fire pump rooms and operate automatically when a fire protection system is activated.
Electric fire pump sets are complete firefighting water supply systems consisting of a fire pump, electric motor, control panel, valves, and pipeline components. Designed to provide reliable water flow and pressure during fire emergencies, they are widely used in commercial buildings, industrial plants, warehouses, hospitals, hotels, shopping malls, residential complexes, and municipal fire protection systems.
Related equipment includes jockey pumps, diesel fire pump sets, fire pump control panels, pressure tanks, fire water tanks, check valves, gate valves, and sprinkler systems. Main models include XBD-WYL Vertical Single Stage Fire Pump Set, XBD-WYW Horizontal Single Stage Fire Pump Set, XBD-GDL Vertical Multistage Fire Pump Set, and XBD Split Case Fire Pump Set.

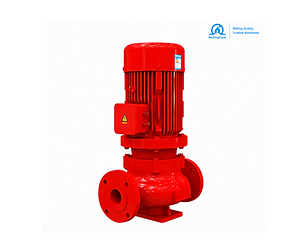

XBD-WYL Vertical Single Stage Fire Pump
XBD-WYL Vertical Single Stage Fire Pumps are designed to provide reliable water supply and pressure for fire protection systems. Available in a range of specifications, with typical models such as XBD3.0/5G-WYL and XBD5.0/10G-WYL, the series offers flow capacities from 1.4 to 83.3 L/s, heads from 20 to 200 m, power outputs from 2.2 to 250 kW, and speeds of 1450 or 2900 r/min. Featuring a compact vertical structure, stable performance, and easy installation, it is widely used in fire hydrant systems, automatic sprinkler systems, commercial buildings, industrial facilities, warehouses, hotels, hospitals, and residential fire protection applications.

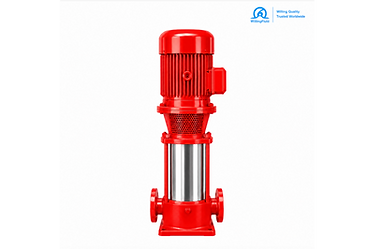

XBD-GDL Vertical Multistage Fire Pump
XBD-GDL Vertical Multistage Fire Pumps are designed for high-pressure fire protection systems requiring stable water supply and long-distance water delivery. Available in a range of specifications, with typical models such as XBD8.0/30G-GDL and XBD12.0/40G-GDL, the series offers flow capacities from 1.4 to 83.3 L/s, heads from 20 to 200 m, power outputs from 2.2 to 250 kW, and speeds of 1450 or 2900 r/min. Featuring a compact vertical structure, high head performance, and reliable operation, it is widely used in high-rise buildings, commercial complexes, industrial facilities, hotels, hospitals, and automatic sprinkler or fire hydrant systems.

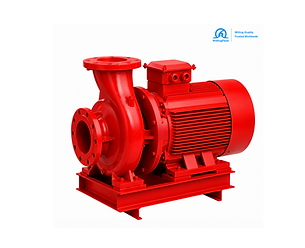

XBD-WYW Horizontal Single Stage Fire Pump
XBD-WYW Horizontal Single Stage Fire Pumps are designed to deliver stable water flow and pressure for fire protection systems. Available in a range of specifications, with representative models including XBD8.0/20G-WYW and XBD10.0/30G-WYW, the series offers flow capacities from 1.4 to 83.3 L/s, heads from 20 to 200 m, power outputs from 2.2 to 250 kW, and speeds of 1450 or 2900 r/min. Featuring a robust structure, reliable operation, and easy maintenance, the XBD-WYW series is widely used in fire hydrant systems, automatic sprinkler systems, industrial facilities, warehouses, commercial buildings, airports, hospitals, and municipal fire protection applications.

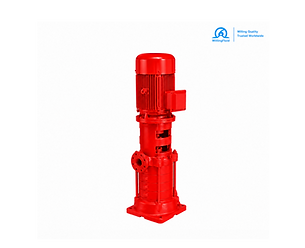

XBD-WYW Multistage Fire Pump
XBD-WYW Multistage Fire Pumps are designed for high-pressure fire protection systems requiring long-distance water delivery and stable pressure supply. Available in a range of specifications, with typical models such as XBD-S Split Case Fire Pump Set and XBD-WYOW Split Case Fire Pump Set, the series offers flow capacities from 1.4 to 83.3 L/s, heads from 20 to 200 m, power outputs from 2.2 to 250 kW, and speeds of 1450 or 2900 r/min. Featuring high head performance, reliable operation, and easy maintenance, it is widely used in high-rise buildings, industrial plants, commercial complexes, warehouses, hotels, hospitals, and fire hydrant or automatic sprinkler systems.
Electric Fire Pump Sets
Applications
• Fire Hydrant Systems
• Automatic Sprinkler Systems
• Commercial Buildings
• Industrial Facilities
• Warehouses & Logistics Centers
• Hospitals & Hotels
• Residential Complexes
• Municipal Fire Protection Systems
Parameter Range
• Flow: 1.4 L/s – 83.3 L/s
• Head: 20 – 200 m
• Power: 2.2 – 250 kW
• Speed: 1450 / 2900 r/min
Model Examples
• XBD3.0/5G-WYL
• XBD5.0/10G-WYL
• XBD8.0/20G-WYW
• XBD10.0/30G-WYW
• XBD8.0/30G-GDL
• XBD12.0/40G-GDL
• XBD-S Split Case Fire Pump Set
• XBD-WYOW Split Case Fire Pump Set
XBC Diesel Engine Fire Pump Set
The XBC80L/S-80 Diesel Engine Fire Pump Set is designed for high-pressure fire protection applications, delivering a rated flow capacity of 80 L/s and a maximum head of 80 m. Powered by a reliable diesel engine, the unit provides an independent and dependable water supply during emergencies and power outages.
Engineered for demanding firefighting systems, the pump set combines efficient hydraulic performance, rapid automatic startup, and long-term operational reliability. It is widely used in high-rise buildings, industrial plants, warehouses, airports, power stations, and municipal fire protection networks where continuous fire safety is essential.
Parameter Range
• Model Example: XBC100L/S-70
• Pump Type: End Suction Centrifugal Fire Pump
• Flow Rate: 100 L/s
• Head: 70 m
• Driver: Diesel Engine
• Medium: Clean Water
• Speed: 1450 rpm
• Power: 132 kW
• Start Mode: Automatic / Manual

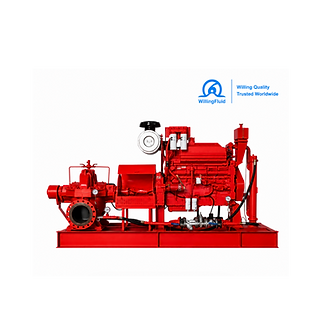

XBC Diesel Engine Driven Split Case Fire Pump Set
The XBC100L/S-50~60 diesel engine driven split case fire pump set is designed for reliable emergency fire protection applications. Equipped with a high-efficiency double suction split case pump, it delivers a flow rate of 100 L/s and a head range of 50-60 m, providing large water capacity, stable pressure, and excellent hydraulic performance.
Powered by a dependable diesel engine, the system ensures continuous operation during power failures, making it an ideal solution for critical fire protection systems. The balanced double suction impeller design reduces axial thrust, improves efficiency, and extends service life.
Parameter Range
• Model Example: XBC100L/S-50~60
• Pump Type: Double Suction Split Case Fire Pump
• Flow Rate: 100 L/s
• Head: 50-60 m
• Driver: Diesel Engine
• Medium: Clean Water
• Start Mode: Automatic / Manual

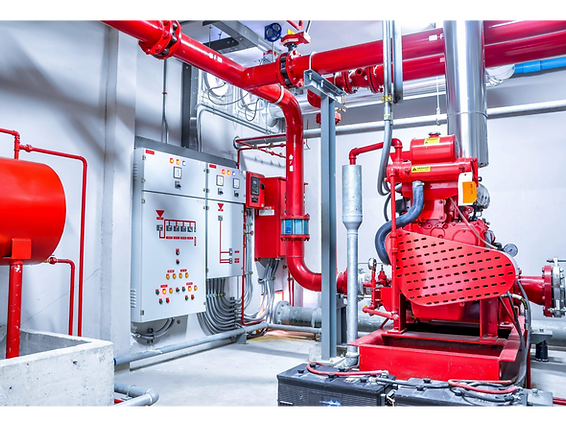

Diesel Engine Fire Pump Sets
Diesel Engine Fire Pump Sets are complete firefighting water supply systems powered by diesel engines. They are specifically designed to provide reliable fire protection when electrical power is unavailable or unstable. A typical diesel fire pump set consists of a diesel engine, fire pump, controller, fuel tank, cooling system, batteries, and a common skid-mounted base. These units automatically start upon receiving a fire signal and deliver high-pressure water to fire sprinkler systems, hydrants, and hose reels.
Diesel fire pump sets are widely used in:
-
Commercial Buildings
-
Shopping Malls
-
High-rise Buildings
-
Industrial Plants
-
Warehouses & Logistics Centers
-
Airports
Jockey Pumps
Jockey pumps are small-capacity, high-pressure pumps designed to maintain constant pressure in fire protection systems. They automatically compensate for minor pressure losses caused by leakage, valve seepage, or system fluctuations, preventing the main fire pump from frequent starting and ensuring the fire protection network remains pressurized at all times.
Jockey pumps are commonly installed alongside electric fire pump sets, diesel fire pump sets, pressure tanks, fire pump controllers, and fire water storage systems. They are widely used in commercial buildings, industrial facilities, warehouses, hospitals, hotels, airports, and municipal fire protection networks.
Applications
-
Fire Hydrant Systems
-
Automatic Sprinkler Systems
-
Commercial Buildings
-
Industrial Facilities
-
Warehouses & Logistics Centers
-
Hospitals & Hotels
-
Airports & Railway Stations
-
Municipal Fire Protection Networks
Parameter Range
-
Flow Rate: 2.8 L/s
-
Head: 30 – 150 m
-
Power: 0.75 – 15 kW
-
Speed: 2900 rpm
-
Working Pressure: 0.3 – 2.0 MPa
Model Examples
-
XBD8.0/20-W-L
-
XBD12.0/30-W-L
XBD-W-L Pressure Maintaining Pump
The XBD-W-L Pressure Maintaining Pump is designed to maintain stable pressure in fire protection systems and prevent unnecessary startup of the main fire pumps. By automatically compensating for minor pressure losses caused by leakage, valve operation, or system fluctuations, it ensures the firefighting network remains fully pressurized and ready for immediate emergency response.

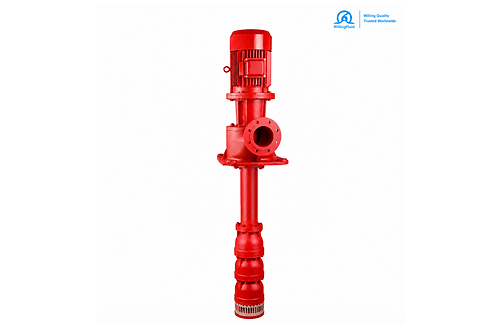

XBD-GJ Deep Well Fire Pump
XBD-GJ Deep Well Fire Pump is a vertical turbine fire pump specially designed for firefighting water supply from deep wells, underground reservoirs, lakes, and other low water level sources. The pump features a multi-stage impeller structure with stable high-pressure performance, reliable operation, and strong continuous water delivery capability. It is widely used in industrial plants, petrochemical facilities, power stations, municipal fire protection systems, airports, ports, and large commercial buildings where dependable fire water supply is essential. The XBD-GJ series can be driven by either an electric motor or diesel engine and is suitable for long-distance and high-head firefighting applications.
Deep Well Fire Pump Sets
Deep Well Fire Pump Sets are vertical turbine fire pump systems specifically designed to draw water from deep wells, underground reservoirs, lakes, rivers, and other water sources where the water level is below the pump installation point. These pumps provide a reliable and continuous water supply for firefighting systems and are widely used in industrial facilities, municipal fire protection projects, power plants, petrochemical plants, warehouses, airports, and large commercial buildings.
Featuring a vertical shaft design and submerged impellers, Deep Well Fire Pump Sets can deliver high flow rates and stable pressure even under challenging suction conditions. They are commonly manufactured in accordance with NFPA 20 and international fire protection standards.
Applications
-
Industrial plants
-
Petrochemical facilities
-
Oil & gas terminals
-
Power stations
Model Examples
-
XBD 4.0 /5GJ
-
XBD 4.0 /45GJ
-
XBD 9.8 /100GJ
Parameter Range
-
Flow Capacity: 6 L/s – 556 L/s
-
Head Range: 30 m – 250 m
-
Power Range: 7.5 kW – 500 kW
-
Discharge Size: DN50 – DN500
-
Speed: 980 / 1480 / 2960 rpm
-
Maximum Water Temperature: ≤80°C
Fire Pressure Stabilizing Water Supply System
Fire Pressure Stabilizing Water Supply Systems are designed to maintain stable pressure in fire protection networks and ensure immediate water supply during emergency situations. The system automatically compensates for minor pressure losses caused by leakage or pressure fluctuations, preventing frequent startup of the main fire pump and keeping the firefighting pipeline network pressurized at all times.
The system typically consists of jockey pumps, pressure tanks, control cabinets, valves, pressure sensors, pipelines, and automatic control systems. It is widely used in commercial buildings, residential complexes, industrial plants, warehouses, hospitals, hotels, shopping malls, airports, and municipal fire protection systems.
Applications
-
Fire Hydrant Systems
-
Automatic Sprinkler Systems
-
Commercial Buildings
-
Industrial Facilities

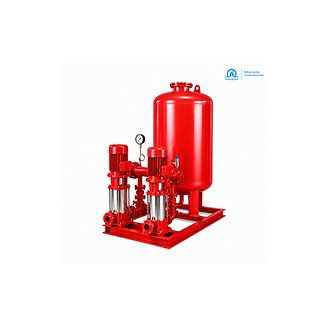

XBD-W-L Fire Pressure Maintaining Water Supply Equipment
The XBD-W-L Fire Pressure Maintaining Water Supply Equipment is a fully integrated pressure stabilization system designed to maintain constant pressure within fire protection pipelines. Equipped with vertical multistage jockey pumps, a pressure tank, control system, and piping assembly, the unit automatically compensates for minor pressure drops caused by leakage, temperature fluctuations, or valve operations, ensuring the fire protection network remains in standby condition at all times.
The system reduces unnecessary starts of the main fire pump, improves operational reliability, and extends equipment service life. It is widely used in sprinkler systems, hydrant systems, high-rise buildings, shopping centers, warehouses, hospitals, factories, and other fire protection applications requiring stable pipeline pressure.
Parameter Range
• Model Example: XBD-W-L-2.0/10-80
• Pump Type: Vertical Multistage Jockey Pump
• Flow Rate: 1-5 L/s
• Head: 60-120 m
• Pressure Tank Capacity: 50-300 L
• Medium: Clean Water
• Power Supply: 380V / 50Hz / 3 Phase
• Control Mode: Automatic / Manual

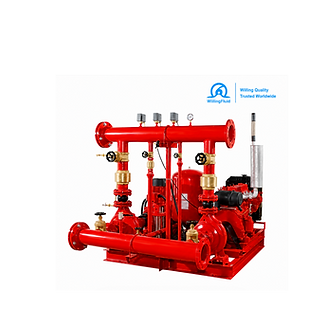

XBD/C-W Integrated Diesel Engine Fire Pump System
The XBD/C-W-8.0-15G-80-250 Diesel Engine Fire Pump Set is a complete firefighting water supply system designed for reliable emergency fire protection applications. The unit integrates a high-efficiency centrifugal fire pump, diesel engine driver, jockey pump, pressure tank, control system, and pipe manifold into a compact skid-mounted package.
With a flow rate of 15 L/s and a rated head of 80 m, this model provides stable pressure and dependable water delivery for fire sprinkler systems, hydrant networks, industrial facilities, commercial buildings, warehouses, airports, and municipal fire protection systems. The diesel engine ensures continuous operation during power outages, guaranteeing immediate firefighting capability when it is needed most.
Parameter Range
• Model: XBD/C-W-8.0-15G-80-250
• Flow Rate: 15 L/s
• Head: 80 m
• Power Source: Diesel Engine
• Medium: Clean Water
• Start Mode: Automatic / Manual
• System Components: Main Fire Pump + Diesel Engine + Jockey Pump + Pressure Tank + Controller
CCCF Intelligent Star-Delta Fire Pump Control Cabinet
CCCF Intelligent Star-Delta Fire Pump Control Cabinet is designed for the automatic control and protection of fire pump systems. The cabinet adopts a star-delta starting method to reduce motor starting current and ensure stable operation of high-power fire pumps. Standard models are available for fire pumps up to 200 kW and are widely used in commercial buildings, factories, warehouses, hospitals, airports, and municipal fire protection systems.
For projects requiring emergency manual operation, the cabinet can be equipped with a mechanical emergency start function, suitable for fire pumps from 15 kW to 20 kW, ensuring reliable operation even in special emergency situations.
Model Examples
• WYK-2XF-30-B
• WYK-2XF-160-B
CCCF Dual Power Fire Pump Control Cabinet
CCCF Dual Power Fire Pump Control Cabinet is designed for automatic control and power switching of fire pump systems. It automatically transfers between the main power supply and backup power source to ensure continuous operation during power failures. With rated currents up to 1250A, it is widely used in commercial buildings, factories, warehouses, hospitals, and municipal fire protection systems.
Model Examples
• WYK-ATS-400-B
• WYK-ATS-1250-B
CCCF Automatic Fire Pump Inspection Control Cabinet is designed for automatic inspection and monitoring of fire pump systems to ensure reliable standby performance. It can automatically inspect electric fire pumps, diesel engine fire pumps, and jockey pumps, helping reduce manual maintenance and improve system reliability. Suitable for fire pumps up to 160 kW, it is widely used in commercial buildings, factories, warehouses, hospitals, and municipal fire protection systems.
Model Examples
• WYK-2XJ-30-B
• WYK-6XJ-90-B
Fire Pump Control Panels
Fire Pump Control Panels are intelligent electrical control systems designed to monitor, operate, and protect fire pump systems in firefighting applications. They automatically control the starting, stopping, alarm monitoring, and operating status of electric fire pumps, diesel engine fire pumps, and jockey pumps to ensure reliable water supply during fire emergencies. These control panels are widely used in fire protection systems for commercial buildings, industrial plants, warehouses, airports, hospitals, shopping malls, hotels, power stations, and municipal fire networks.
The system is commonly integrated with electric fire pumps, diesel engine fire pump sets, jockey pumps, pressure tanks, pressure switches, sensors, alarms, valves, and firefighting pipelines. Advanced control panels can support automatic pressure control, dual power supply switching, remote monitoring, PLC automation, touchscreen interfaces, and communication protocols for building management systems (BMS).
Fire Pump Control Panels are suitable for sprinkler systems, hydrant systems, foam firefighting systems, tunnel fire protection systems, and emergency water supply systems where stable and automatic fire pump operation is critical.
Applications
-
Commercial Buildings
-
High-rise Buildings
-
Industrial Factories
-
Warehouses & Logistics Centers
-
Airports & Railway Stations
-
Hospitals & Schools
-
Petrochemical Plants
-
Municipal Fire Protection Systems
-
Data Centers & Power Plants
Parameter Range
-
Power Range: 2.2kW – 500kW
-
Voltage: 220V / 380V /400V
-
Frequency: 50Hz / 60Hz
-
Protection Grade: IP30 / IP55
-
Control Type: Manual / Automatic / PLC Intelligent Control
-
Starting Method: DOL / Star-Delta / Soft Starter / VFD
-
Communication: Modbus / RS485 / Remote Monitoring Optional
Model Examples
-
WYK-2XF-160-B WYK-2XF-30-B
-
WYK-6XJ-90-B WYK-2XJ-30-B
-
WYK-ATS-400-B WYK-ATS-1250-B
-
WYK-2XF-5.5-B WYK-2XF-18.5-B
CCCF Automatic Fire Pump Inspection Control Cabinet
CCCF Intelligent Direct-On-Line Fire Pump Control Cabinet
CCCF Intelligent Direct-On-Line Fire Pump Control Cabinet is designed for automatic starting, stopping, monitoring, and protection of fire pump systems. With direct-on-line starting, it provides simple operation and reliable performance for small and medium power fire pumps. Suitable for fire pumps up to 18.5 kW, it is widely used in commercial buildings, factories, warehouses, hospitals, and municipal fire protection systems.
Model Examples
• WYK-2XF-5.5-B
• WYK-2XF-18.5-B
