Name: 2CY/KCB Gear Oil Pump
Brand: willingfluid
Price: 99.00 USD
Availability: InStock

Home Industrial Pumps

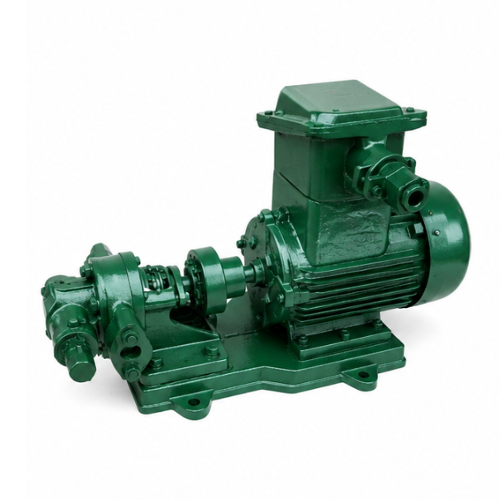

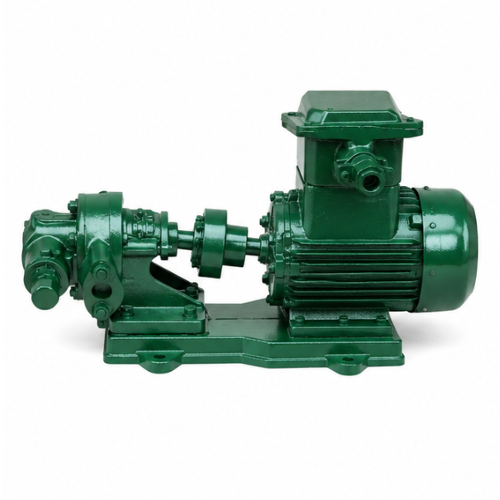

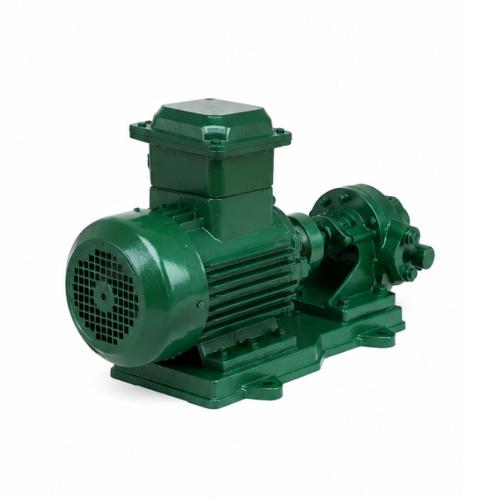

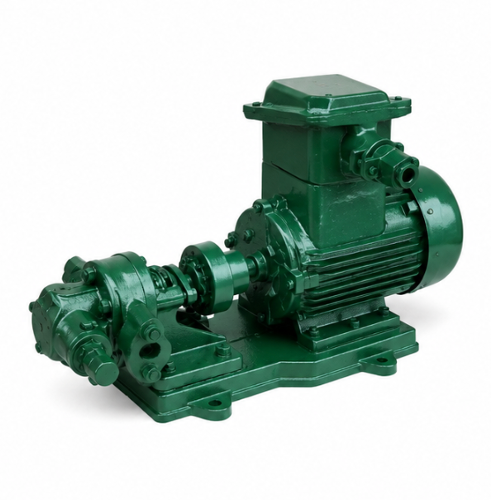

2CY/KCB Gear Oil Pump

$99.00

2CY/KCB Gear Oil Pump is a reliable external gear pump designed for transferring lubricating oils and similar fluids. It features stable flow, strong self-priming ability, compact structure and easy maintenance, making it suitable for industrial oil transfer and lubrication systems.

40 People are viewing this right now

2CY/KCB Gear Oil Pump is a positive displacement external gear pump specially designed for transferring lubricating and oil-based fluids. The pump adopts a simple and reliable gear structure, which provides stable flow, strong self-priming capability and continuous operation performance. It is suitable for conveying various lubricating oils, fuel oils and other fluids with similar properties.

The pump features compact structure, convenient installation and easy maintenance. The precisely machined gears ensure smooth operation, low vibration and reliable sealing performance. According to different operating conditions, high-temperature resistant materials can be selected to handle medium temperatures up to 300℃.

The 2CY/KCB series is widely used in petroleum, chemical, machinery, lubrication systems and industrial oil transfer applications. It is an ideal choice for applications requiring stable oil circulation, lubrication supply and fuel delivery.

Model Meaning：

Features
·Stable and reliable performance with continuous operation capability.
·External gear structure provides steady flow and high volumetric efficiency.
·Strong self-priming capability, reducing the complexity of installation.
·Compact design with simple structure and easy maintenance.
·Low noise and smooth operation due to precision-machined gears.
·Good sealing performance to minimize leakage during operation.
·High-temperature version available, capable of handling media up to 300℃ with special materials.
·Suitable for medium with good lubricating properties.

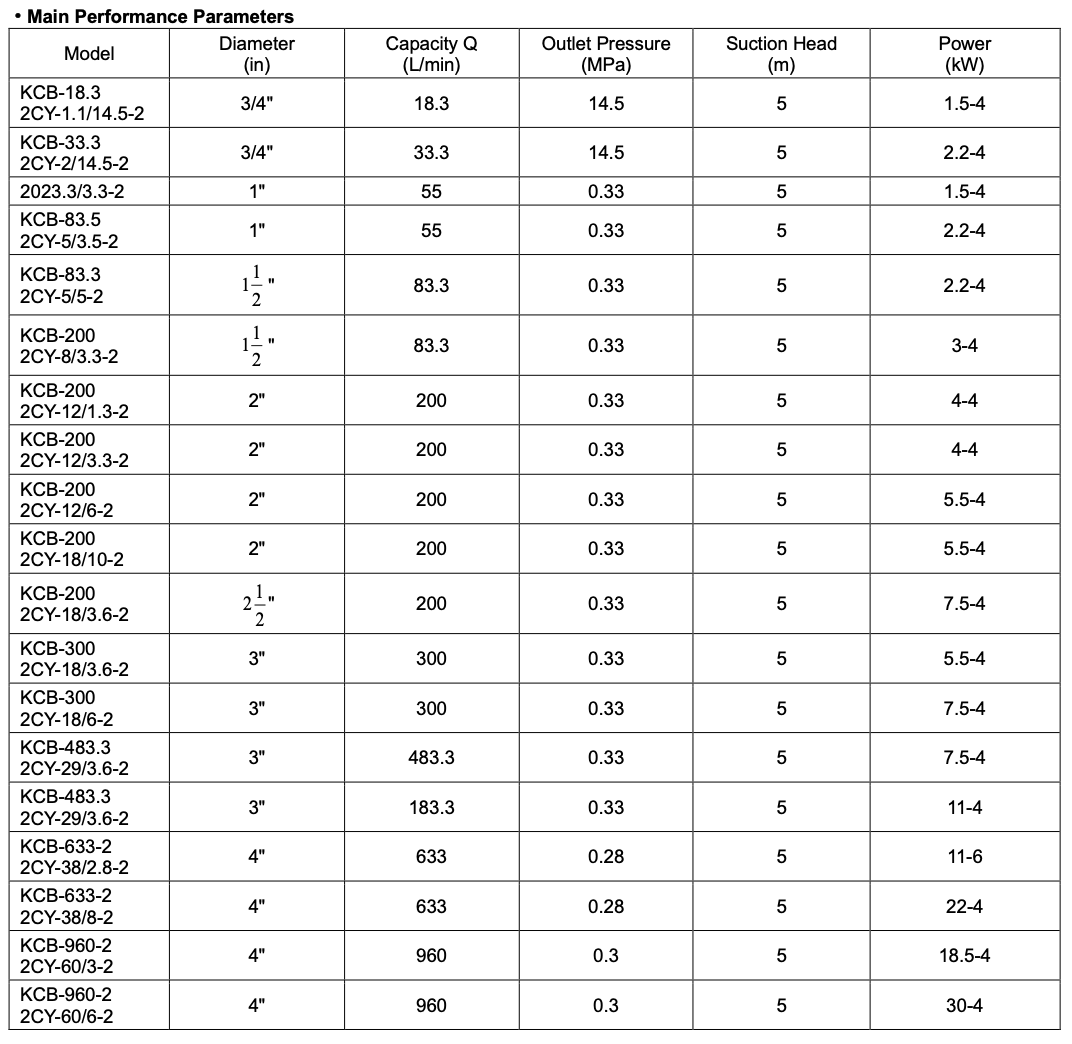

Parameters
·Model: 2CY / KCB
·Pump Type: External Gear Oil Pump
·Medium: Lubricating oil, fuel oil and similar oil-based liquids
·Flow Range: 1.1 ~ 960 L/min
·Pressure Range: 0.33 ~ 2.5 MPa
·Speed: 740 ~ 1440 r/min
·Medium Temperature: ≤70℃ (standard model)
·Up to 300℃ with high-temperature resistant materials
·Medium Viscosity: 5×10⁻⁵ ~ 1.5×10⁻³ m²/s
·Self-Priming Height: ≤5 m
·Drive Type: Motor driven
·Rotation Direction: Clockwise (viewed from shaft end)
·Suitable Medium: Clean lubricating liquids without hard particles or fibers

Application
·Lubricating oil circulation systems.
·Petroleum and oil processing industries.
·Chemical industry oil transfer systems.
·Mechanical equipment lubrication systems.
·Hydraulic equipment oil supply.
·Fuel oil transportation.
·Industrial oil filling and transfer systems.
·Boiler and thermal equipment oil circulation systems.
