Features
• Zero leakage magnetic drive design
Uses magnetic coupling transmission and static sealing structure instead of mechanical seals, completely preventing leakage.

• High temperature resistance
Designed for high-temperature liquid transportation in petroleum and chemical industries.

• Fully sealed glandless structure
No shaft seal leakage, improving operational safety and environmental protection.

• Reliable and long service life
Reduced wear components and stable magnetic transmission extend pump service life.

• Safe transportation of special media
Suitable for valuable, hazardous, volatile and high-temperature liquids.

• Low maintenance requirement
No mechanical seal replacement, reducing maintenance cost and downtime.

• Stable operation with low vibration and noise
Optimized hydraulic design ensures smooth performance.

Parameters

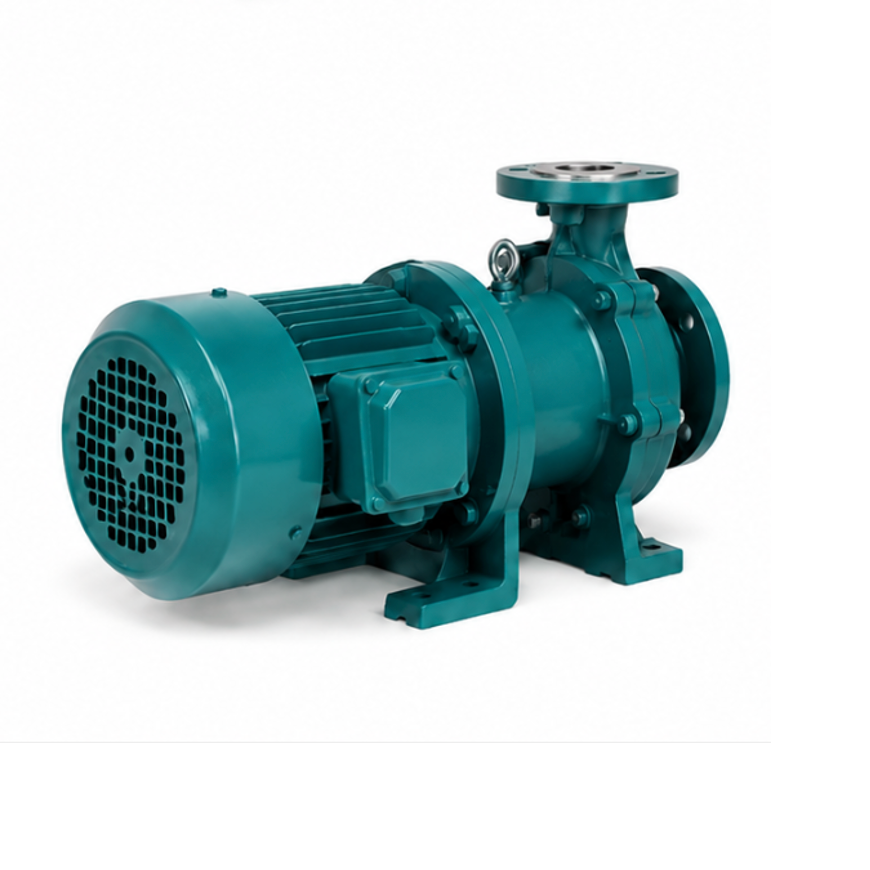

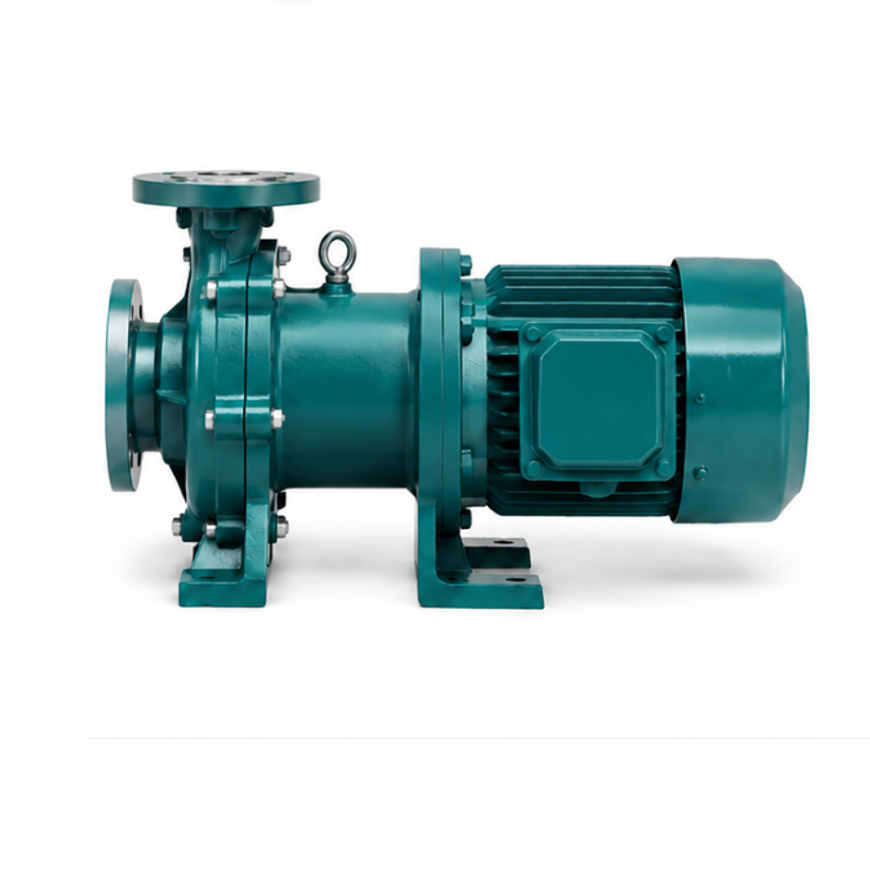

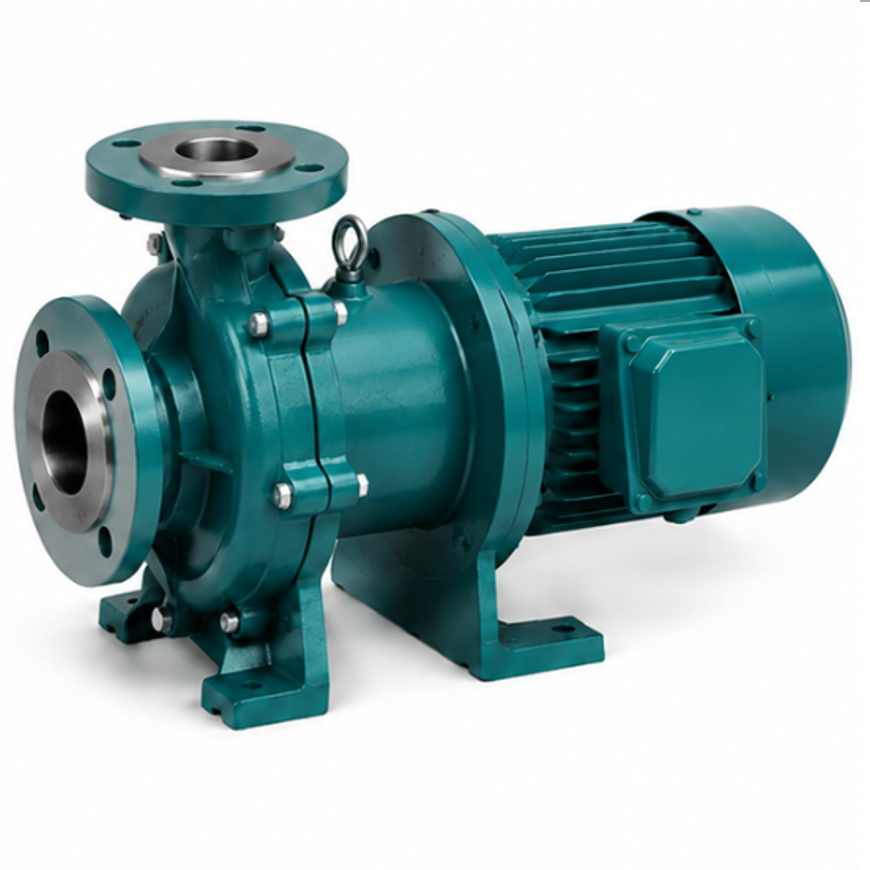

Product Type: High Temperature Magnetic Drive Centrifugal Pump
Drive Method: Permanent Magnetic Coupling Transmission
Structure: Horizontal Single-stage Centrifugal Pump
Seal Type: Glandless Fully Sealed Structure
Material: Stainless Steel / Corrosion-resistant Materials (According to Medium)

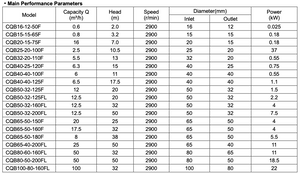

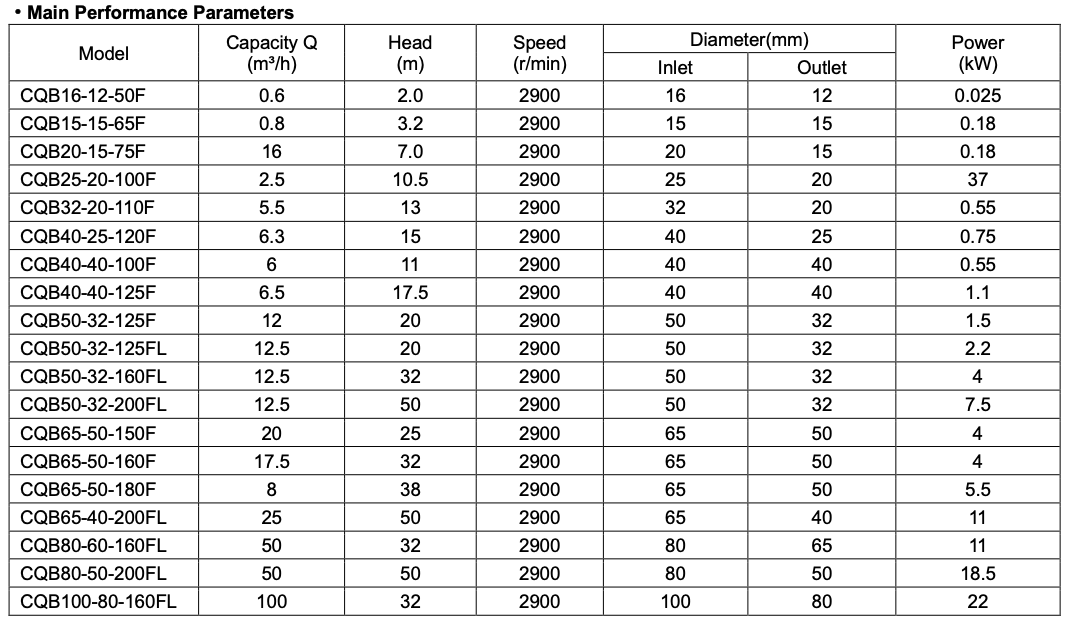

Main Performance Range:
Flow Range: 1.2~100 m³/h
Head Range: 5~80 m
Motor Power: 0.025~55 kW
Speed: 1450 r/min / 2900 r/min
Medium Temperature: ≤350℃ (depending on model and material configuration)
Working Pressure: ≤1.6 MPa
Medium: High-temperature oil, chemical liquids and special industrial fluids
Viscosity: Similar to water
Installation Type: Horizontal installation

Application
• Petroleum refining systems
• Petrochemical processing plants
• Chemical production industries
• High-temperature oil circulation systems
• Heat transfer oil systems
• Printing and dyeing industries
• Chemical raw material transportation
• Special oil transportation systems
• Industrial heating systems
• High-temperature liquid circulation equipment
