Name: CQ Magnetic Force-driven Pump
Brand: willingfluid
Price: 888.00 USD
Availability: InStock

Home Industrial Pumps

CQ Magnetic Force-driven Pump

$888.00

CQ Magnetic Drive Pump is a fully sealed centrifugal pump driven by permanent magnetic coupling technology. It features zero leakage operation, excellent corrosion resistance and reliable performance. With plastic, ceramic and stainless steel material options, it is suitable for transporting corrosive and sensitive liquids in various industrial applications.

40 People are viewing this right now

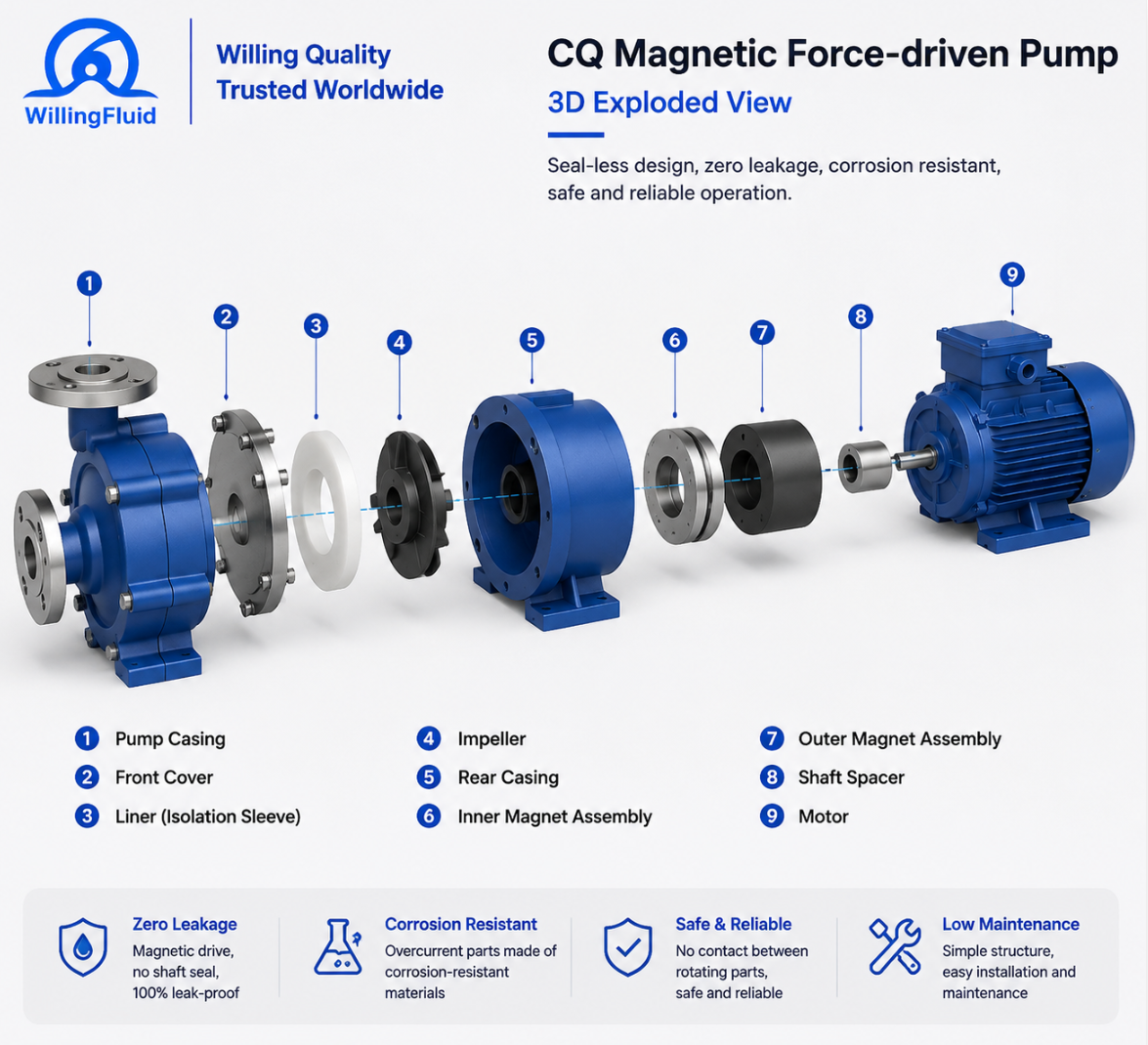

CQ Magnetic Drive Pump is a new generation of centrifugal pump that adopts permanent magnet coupling technology to achieve completely sealed and leak-free operation. Unlike conventional centrifugal pumps using mechanical seals, the CQ series eliminates the rotating shaft seal by transmitting power through magnetic force, effectively preventing leakage of the transported medium and improving operational safety.

The pump features a compact structure, reliable performance, corrosion resistance and easy maintenance. The wetted components can be manufactured from engineering plastics, alumina ceramic or stainless steel according to different working conditions, allowing the pump to handle various corrosive liquids without contamination. The fully sealed design makes it especially suitable for applications where leakage prevention and environmental protection are critical.

With advanced magnetic drive technology and excellent chemical resistance, CQ Magnetic Drive Pump is widely used for the transportation of corrosive, valuable or hazardous fluids in chemical processing, pharmaceutical, electronics, environmental protection and other industries.

Model Meaning：

Features
• Zero leakage magnetic drive design
The permanent magnet coupling replaces the mechanical shaft seal, completely eliminating leakage risks.

• Excellent corrosion resistance
Available in engineering plastic, ceramic and stainless steel materials to meet different chemical conditions.

• Fully sealed structure
Prevents medium leakage and protects the environment and equipment safety.

• No contamination of transported medium
Suitable for applications requiring high cleanliness and purity.

• Compact structure and easy maintenance
Simple design reduces maintenance requirements and improves reliability.

• Stable and quiet operation
Magnetic transmission provides smooth operation with low vibration and noise.

• Safe transportation of hazardous fluids
Ideal for corrosive, toxic or valuable liquid transfer.

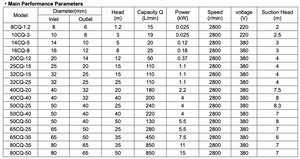

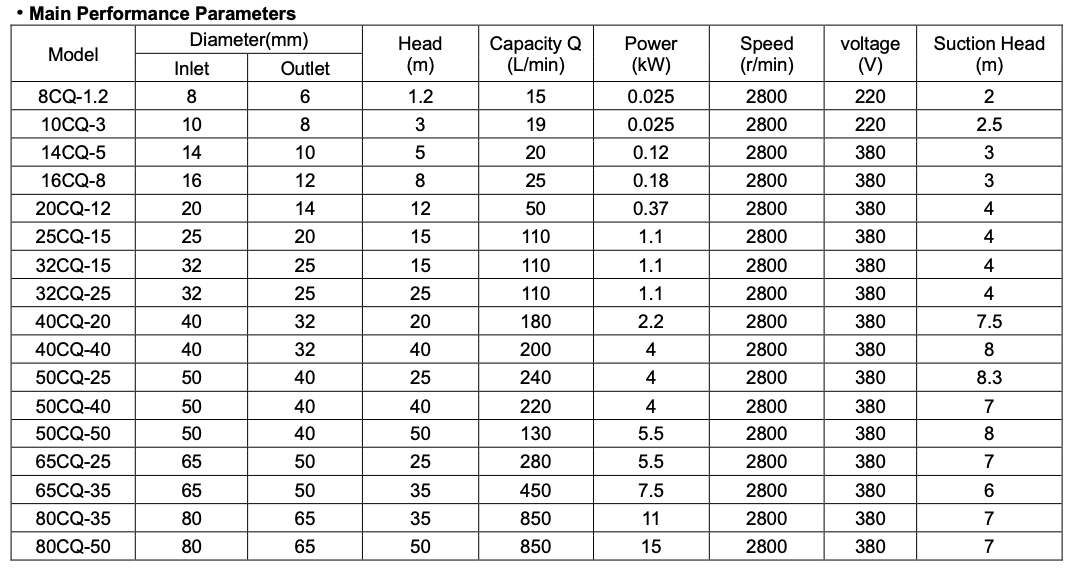

Parameters
·Pump Type: Magnetic Drive Centrifugal Pump
·Drive Method: Permanent Magnet Coupling
·Structure: Horizontal Single-stage Centrifugal Pump
·Medium: Clean liquid without solid particles
·Material Options: Engineering Plastic / Alumina Ceramic / Stainless Steel
·Medium Temperature: According to material selection
·Maximum Working Pressure: According to model selection
·Flow Range: According to model selection
·Head Range: According to model selection
·Motor Power: According to model selection
·Application Medium: Corrosive, chemical and sensitive liquids

Application
• Chemical industry
• Pharmaceutical and biotechnology industry
• Electroplating and surface treatment systems
• Semiconductor and electronics manufacturing
• Environmental protection equipment
• Laboratory fluid circulation systems
• Acid and alkali liquid transportation
• Corrosive chemical transfer systems
• Pure water and special liquid circulation
