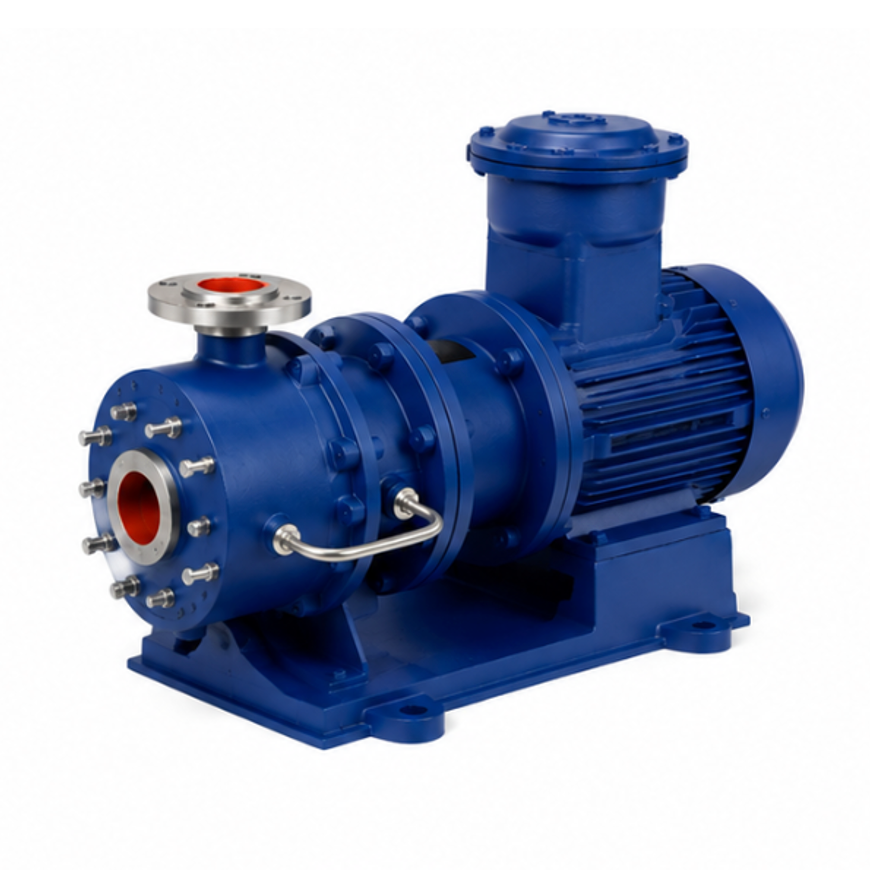

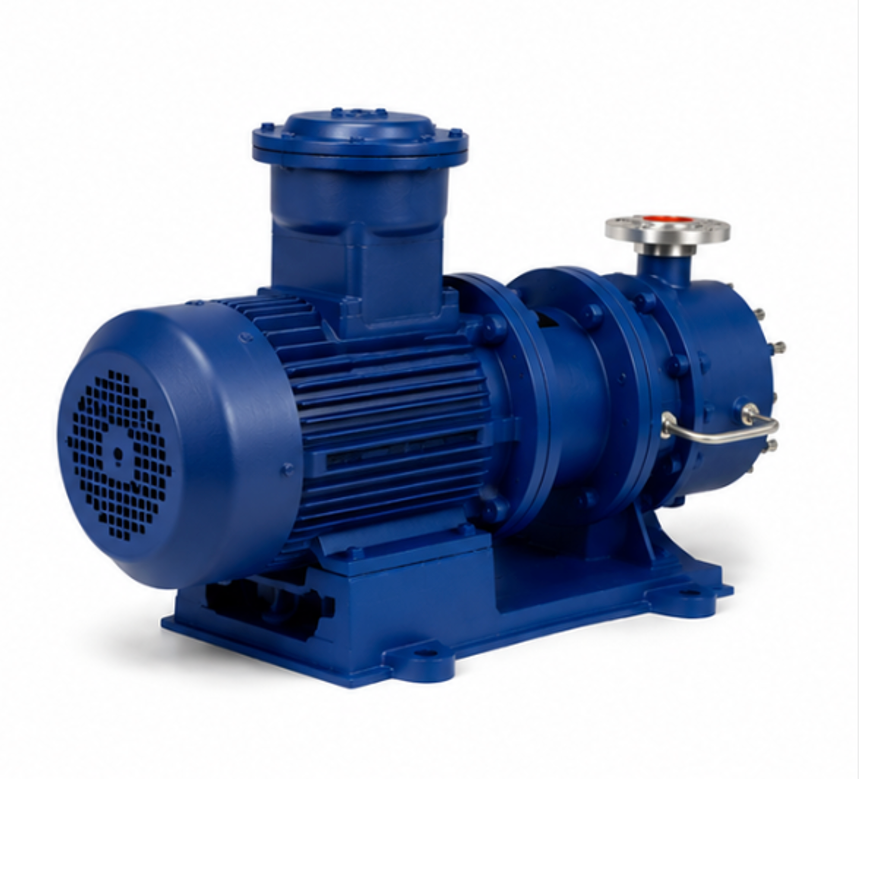

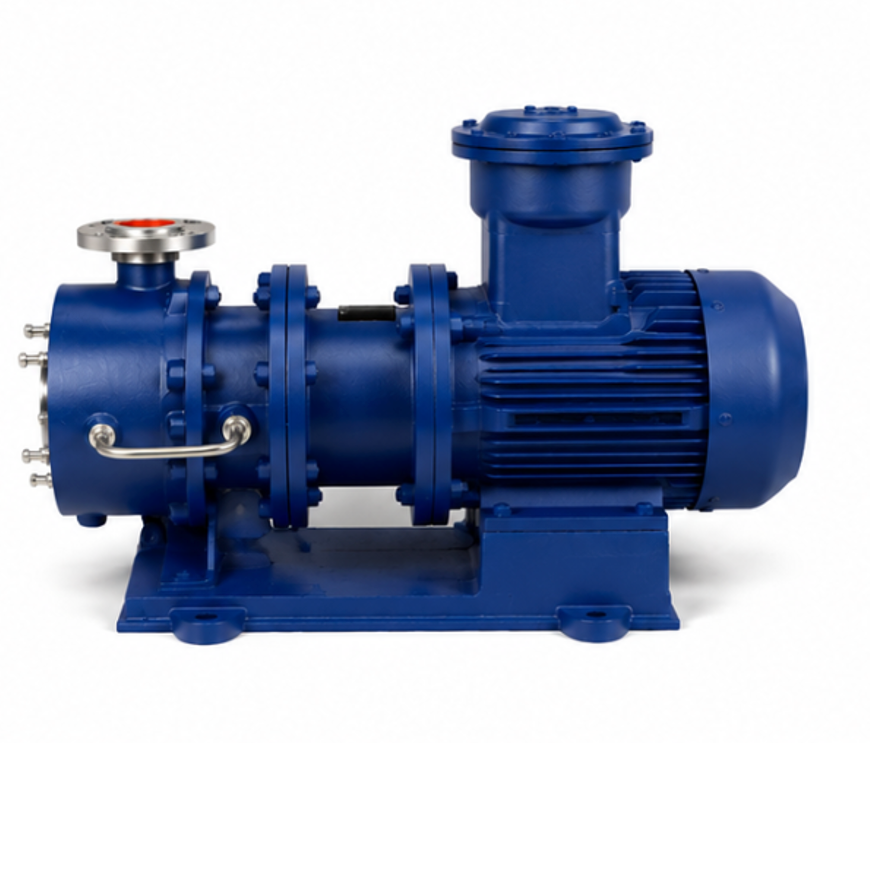

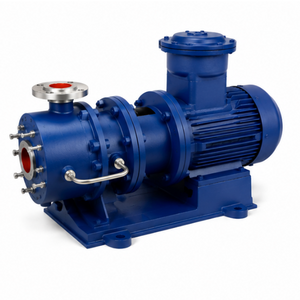

CQG High Temperature Resistance Magnetic Force-driven Pump
CQG High Temperature Magnetic Drive Pump is a new generation of high-temperature resistant centrifugal pump developed with advanced permanent magnetic coupling technology. It adopts a glandless and fully sealed structure, using static sealing instead of traditional mechanical shaft seals, which completely eliminates leakage caused by seal wear and provides safe and reliable operation.

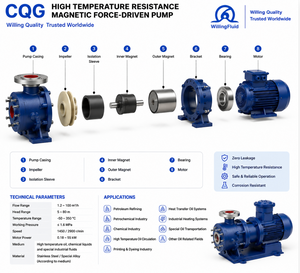

The pump transfers power through magnetic force between the outer magnet and inner magnet, allowing the impeller to rotate synchronously with the motor without direct shaft connection. This design ensures zero leakage operation, reduces maintenance requirements and improves service life.
CQG series is specially designed for transporting high-temperature liquids and special oils in petrochemical, petroleum refining and chemical industries. It is suitable for applications involving high-temperature heat transfer oil, chemical raw materials, printing and dyeing materials and other special fluids where traditional sealed pumps may have leakage risks.
With excellent high-temperature resistance, corrosion resistance and stable operating performance, CQG magnetic drive pump provides an efficient and environmentally friendly solution for demanding industrial fluid transportation.
Model Meaning：
Features

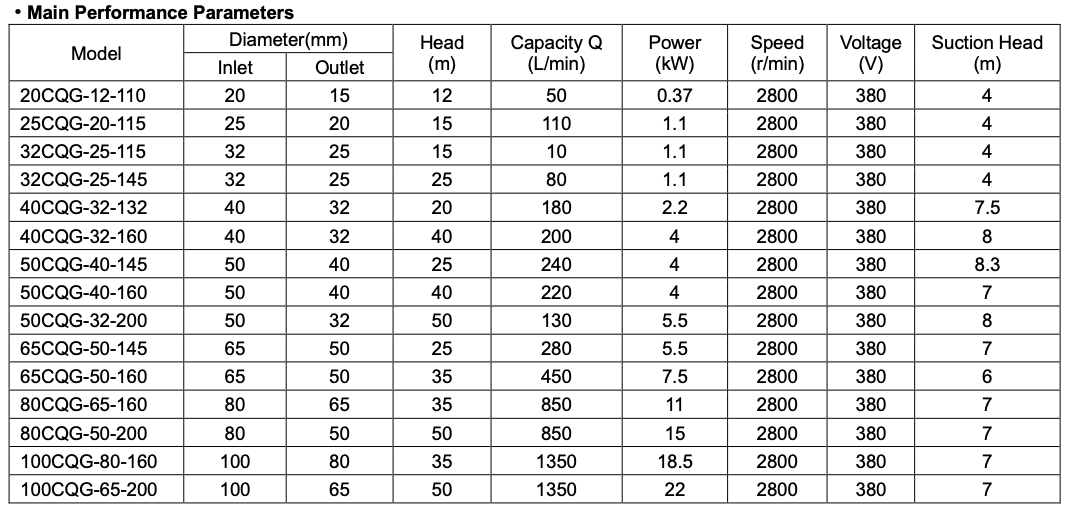

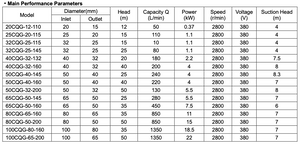

Parameters
Application
