I-1B Progressive Cavity Pump (Underflow Pump)

$999.00

I-1B Progressive Cavity Pump is a single screw positive displacement pump designed for transferring viscous liquids, slurry and media containing solid particles. It provides stable flow, low pulsation, strong self-priming ability and reliable operation for various industrial applications.

40 People are viewing this right now

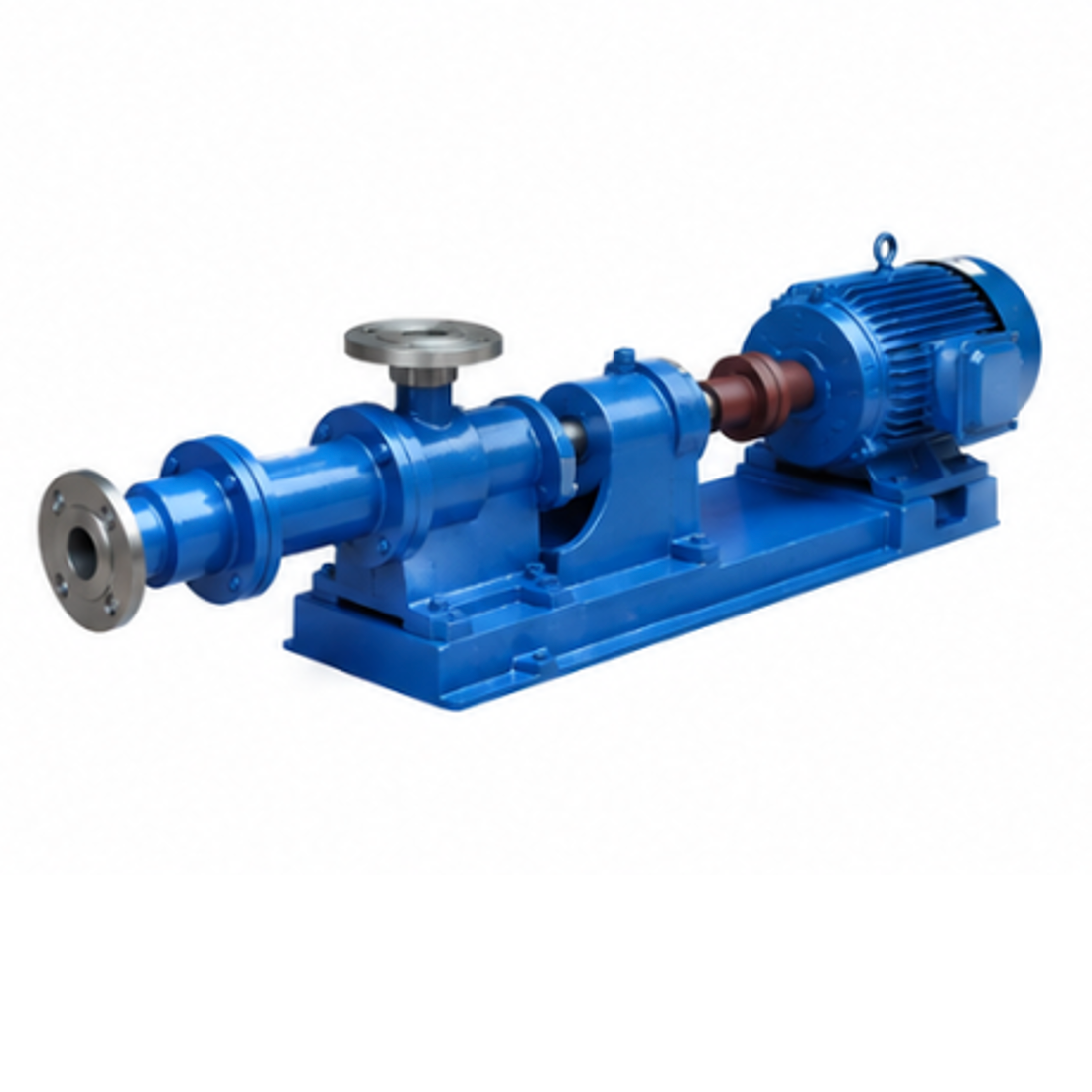

I-1B Progressive Cavity Pump is a single eccentric screw positive displacement pump, specially designed for transferring high-viscosity fluids, concentrated slurries and media containing suspended particles. The pump works through the relative rotation between the single helix rotor and the double helix elastomer stator, forming continuously moving sealed cavities that transfer the medium smoothly from the suction side to the discharge side.

Due to its unique progressive cavity structure, the pump provides stable flow, low pulsation and excellent self-priming performance. It can handle difficult media such as sludge, slurry, viscous liquids and mixtures containing solid particles without damaging the medium structure.

The I-1B series pump features a simple structure, reliable operation, low noise and convenient maintenance. It is widely used in chemical processing, pharmaceutical production, food processing, brewing, papermaking, environmental protection and other industries where accurate and stable transfer of viscous or abrasive fluids is required.

Features
·Progressive cavity design provides continuous and stable flow without pulsation.
·Positive displacement operation ensures accurate medium transfer.
·Excellent self-priming capability, no bottom valve required.
·Suitable for high-viscosity and slurry media with good conveying performance.
·Smooth operation with low vibration and low noise.
·Simple structure and easy maintenance.
·No overflow during operation, ensuring safe and reliable performance.
·Gentle transportation, minimizing damage to sensitive materials.
·Capable of handling liquids containing suspended solids and fibers.

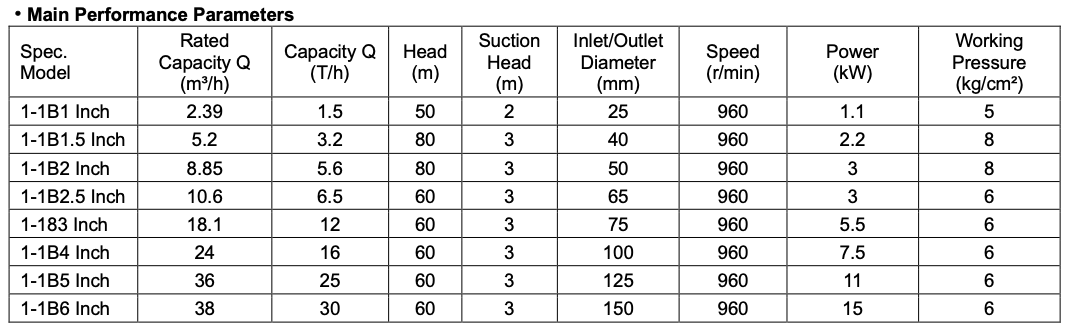

Parameters
·Pump Type: Single Eccentric Screw Positive Displacement Pump
·Model: I-1B Series
·Flow Range: 0.8 ~ 150 m³/h
·Pressure Range: 0.2 ~ 1.2 MPa
·Speed: 500 ~ 960 r/min
·Medium Temperature: ≤80℃ (standard configuration)
·Self-Priming Height: ≤6 m
·Medium Viscosity: Suitable for high-viscosity fluids
·Solid Particle Content: Suitable for media containing suspended particles and fibers
·Drive Type: Motor / Gear Motor Drive
·Installation: Horizontal installation

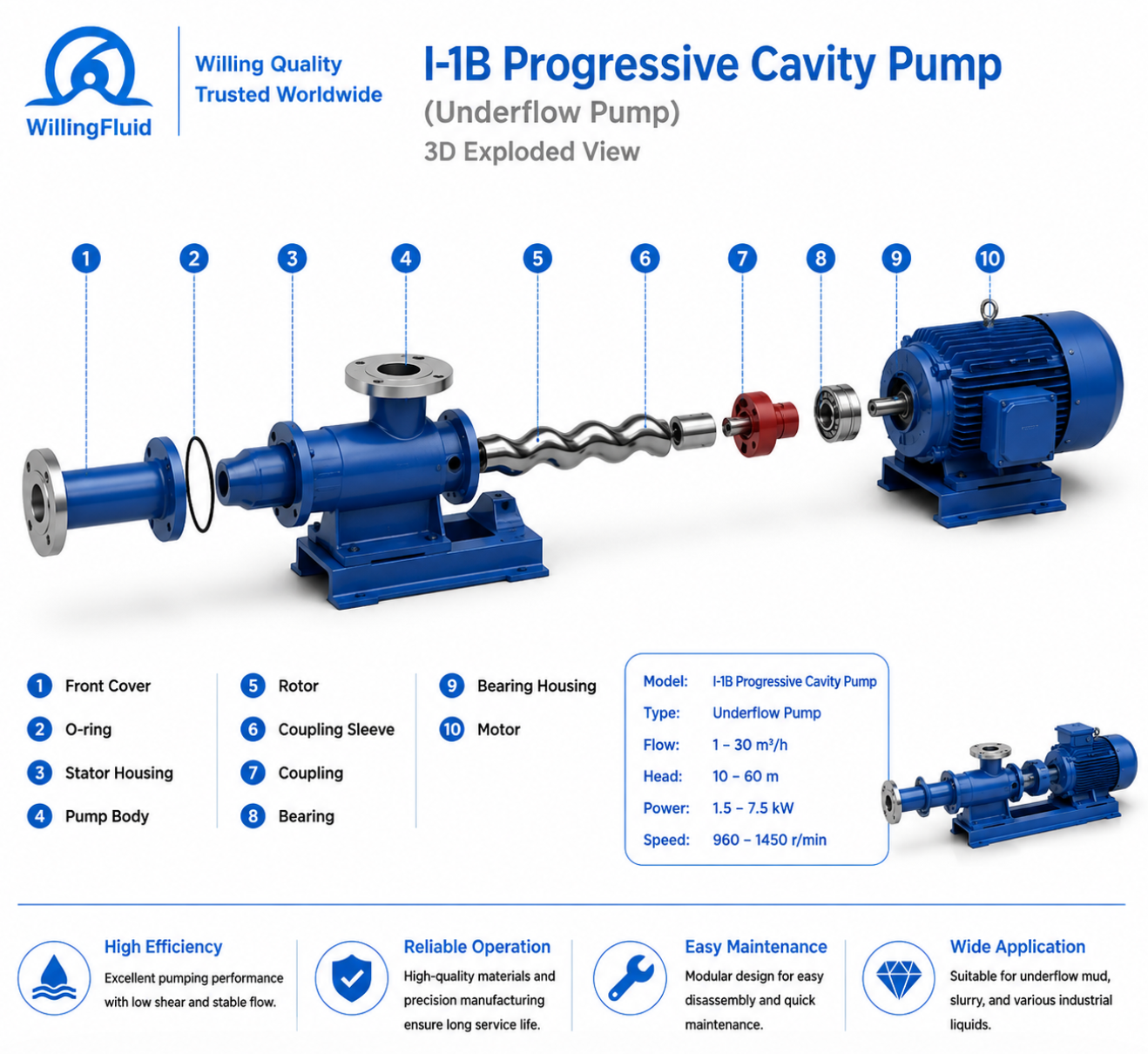

·Structure: Rotor + Stator progressive cavity design

Application
·Chemical industry: transfer of chemical solutions, additives and viscous liquids.
·Pharmaceutical industry: transportation of pharmaceutical liquids and concentrated materials.
·Food and beverage industry: syrup, paste, fermentation products and food slurry transfer.
·Brewing industry: yeast, mash and fermentation liquid transportation.
·Paper-making industry: pulp, coating materials and additives transfer.
·Environmental protection: sludge, wastewater and concentrated slurry transfer.
·Mining industry: mineral slurry and high-concentration media transportation.
·Industrial processes requiring stable and precise flow delivery.
