IH Single-stage Centrifugal Pump

$999.00

IH Chemical Centrifugal Pump is a corrosion-resistant single-stage centrifugal pump designed for chemical and industrial liquid transfer. It provides reliable performance, stable operation and long service life for transporting corrosive liquids and chemical media.

40 People are viewing this right now

IH Single-stage Single-suction Chemical Centrifugal Pump is specially designed for transporting corrosive liquids and chemical media. Based on the standard IS centrifugal pump structure, the IH series adopts corrosion-resistant materials and optimized hydraulic design to meet the requirements of chemical process applications.

The pump has the same inlet direction as the shaft direction and features stable operation, high efficiency and convenient maintenance. The flow passage components are manufactured with suitable corrosion-resistant materials according to different chemical media, ensuring reliable performance in harsh working environments.

IH chemical pump is widely used for transferring various corrosive liquids in chemical plants, petroleum, pharmaceutical, metallurgy, textile, food processing and other industries. It is suitable for liquids with similar viscosity to water and without large solid particles.

Model Meaning：

Features
• Excellent corrosion resistance
Made with corrosion-resistant materials suitable for various chemical media.

• Reliable chemical transfer performance
Designed for corrosive liquid transportation with stable operation.

• High hydraulic efficiency
Optimized impeller design reduces energy consumption.

• Simple structure and easy maintenance
Standard centrifugal design allows convenient maintenance.

• Wide material selection
Different materials can be selected according to medium characteristics.

• Stable operation with low vibration
Precision manufacturing ensures smooth running.

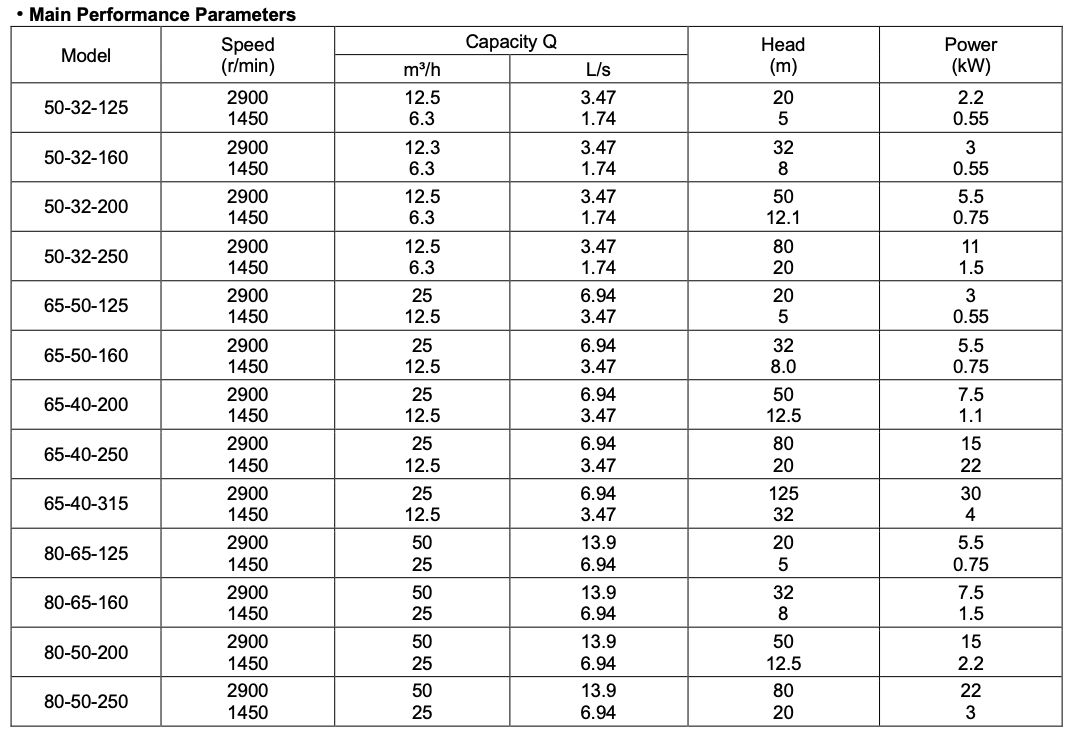

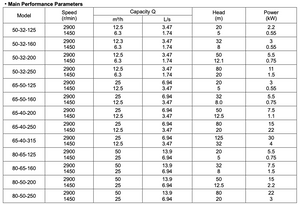

Parameters
·Main Performance Range:
·Flow Range: 6.3~400 m³/h
·Head Range: 5~125 m
·Speed: 1450 / 2900 r/min
·Motor Power: 0.55~110 kW
·Inlet Diameter: 25~300 mm
·Outlet Diameter: 25~250 mm
·Medium Temperature: ≤80℃
·Working Pressure: ≤1.6 MPa

Application
• Chemical industry
• Petroleum and petrochemical industry
• Pharmaceutical industry
• Metallurgical industry
• Textile industry
• Food processing industry
• Dyeing industry
• Industrial wastewater treatment
• Corrosive liquid circulation systems
• Chemical process equipment
